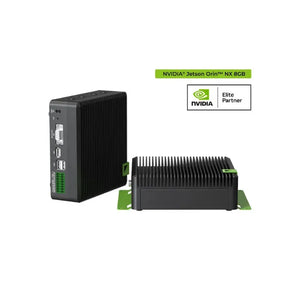

Seeed Studio reComputer Industrial J4011 Fanless Jetson Orin™ NX 8GB
📦 Location of the warehouse: China
🚚 We will ship your order within 1-3 working days after the order is taken.
Free Shipping from 30€ in Germany, 50€ in the EU!
- EU & US Countries Delivery Time: 5~10 working days.
- Other Countries Delivery Time: 2~2.5 weeks.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Seeed Studio reComputer Industrial J4011 Fanless Jetson Orin™ NX 8GB
Feature
Note
If you want to use SSDs with reComputer, we only recommend you choose the 128GB, the 256GB, and the 512GB versions from Seeed, because some of the SSDs in the market will work with this product under a particular JetPack version and some will not work with a different JetPack version. Even the official NVIDIA dev kits have the same behavior with SSDs.
Specification
|
Jetson Orin NX System on Module |
||
|
AI Performance |
reComputer Industrial J4011- Orin NX 8GB, 70 TOPS |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) |
6-core Arm® Cortex®-A78AE (Orin NX 8GB) |
|
Memory |
8GB 128-bit LPDDR5 (Orin NX 8GB) |
|
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
|
|
DL Accelerator |
2x NVDLA v2 |
|
|
Carrier Board |
||
|
Storage |
1x M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included) |
|
|
Networking |
Ethernet |
1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15 W) |
|
Wi-Fi |
Support SMD Wi-Fi/Bluetooth (Customized production, please contact order@seeed.cc) |
|
|
M.2 Key B |
1x M.2 Key B support 4G/5G (Module optional) |
|
|

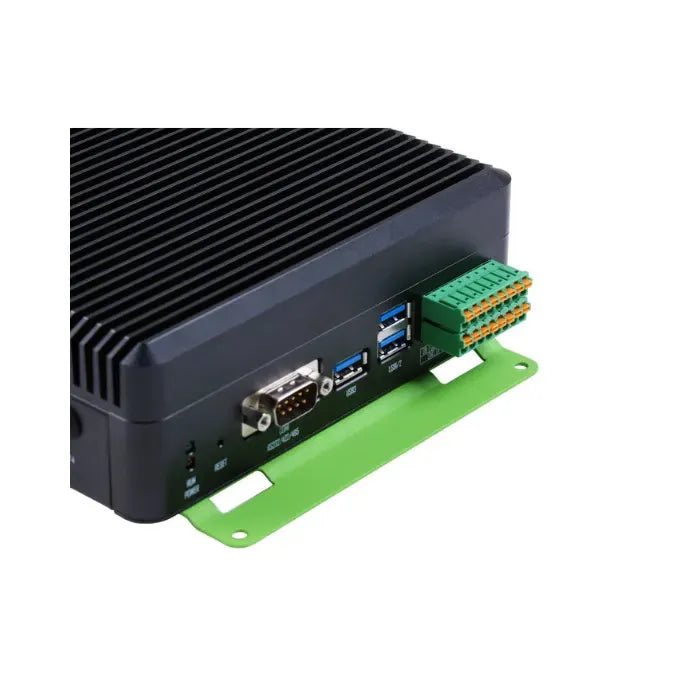

I/O |
USB |
3x USB3.2 Gen1, 1x USB2.0 Type C(Device mode), 1x USB2.0 Type C For Debug UART & RP2040 |
|
DI/DO |
4x DI,4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO,1x CAN |
|
|
COM |
1x DB9 (RS232/RS422/RS485) |
|
|
Display |
1x HDMI 2.0 Type A |
|
|
SIM |
1x Nano SIM card slot |
|
|
Fan |
Fanless, passive heatsink; 1x Fan connectors(5V PWM) |
|
|
TPM |
1x TPM 2.0 connector (Module optional) |
|
|
RTC |
1x RTC socket (CR1220 included), 1x RTC 2-pin |
|
|
Camera |
2x CSI (2-lane 15pin) |
|
|
Power |
Power Supply |
DC 12V-24V Terminal block 2 pin |
|
Power Adapter |
19V Power Adapter(without power cord) |
|
|
Mechanical |

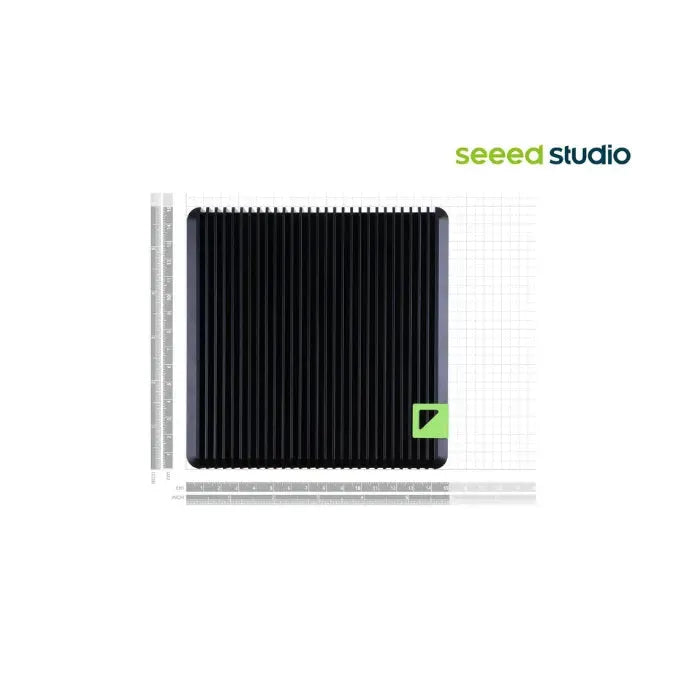

Dimensions (W x D x H) |
159mm x 155mm x 57mm |
|
Weight |
1.57kg |
|
|
Installation |
Desk, DIN rail, wall-mounting, VESA |
|
|
Environment |
Operating Temperature |
-20 ~ 60°C with 0.7m/s airflow |
|
Operating Humidity |
95% @ 40 °C (non-condensing) |
|
|
Vibration |
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
|
|
Shock |
50G peak acceleration (11 msec) |
|
|
Warranty |
2 Years |
|

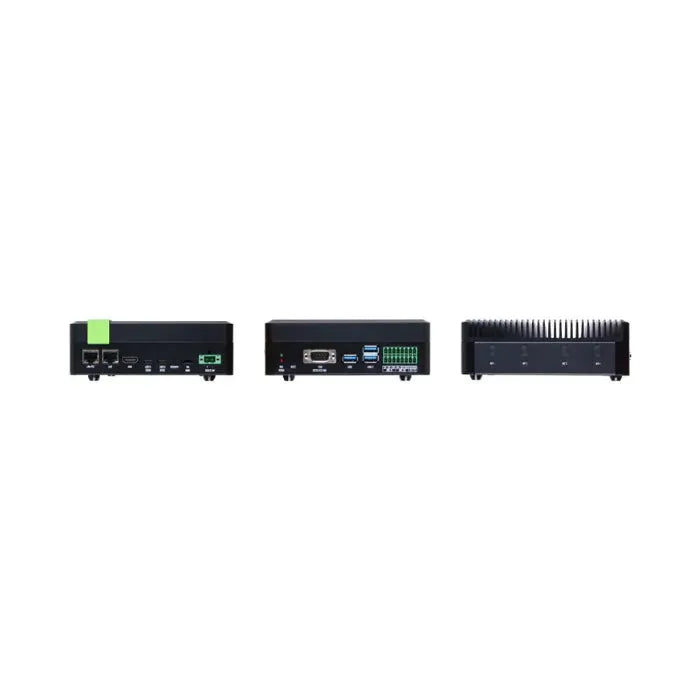

Hardware Overview

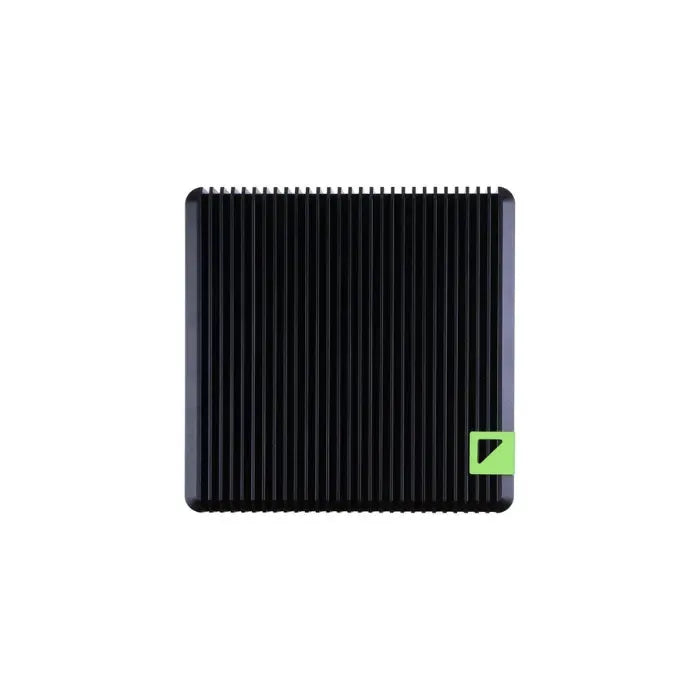

Full System
Carrier Board

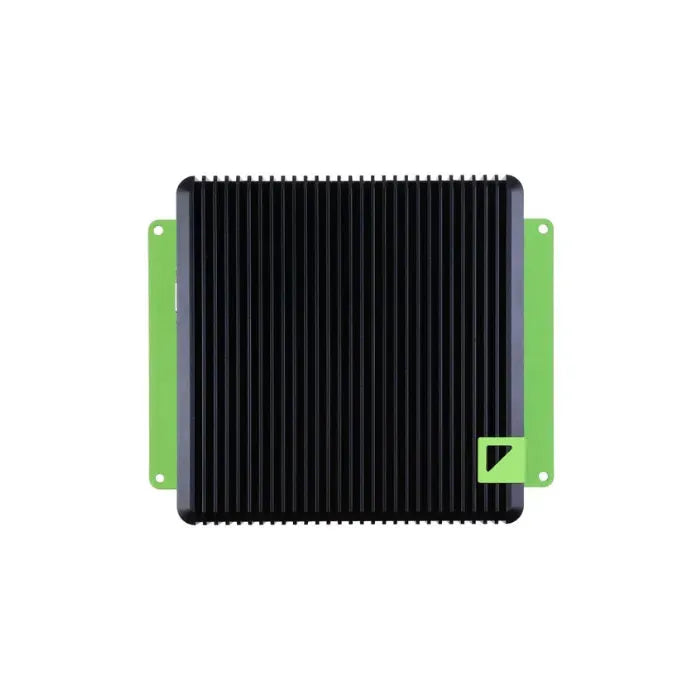

Desktop, Wall Mount, DIN Rail, VESA mount to fit in anywhere

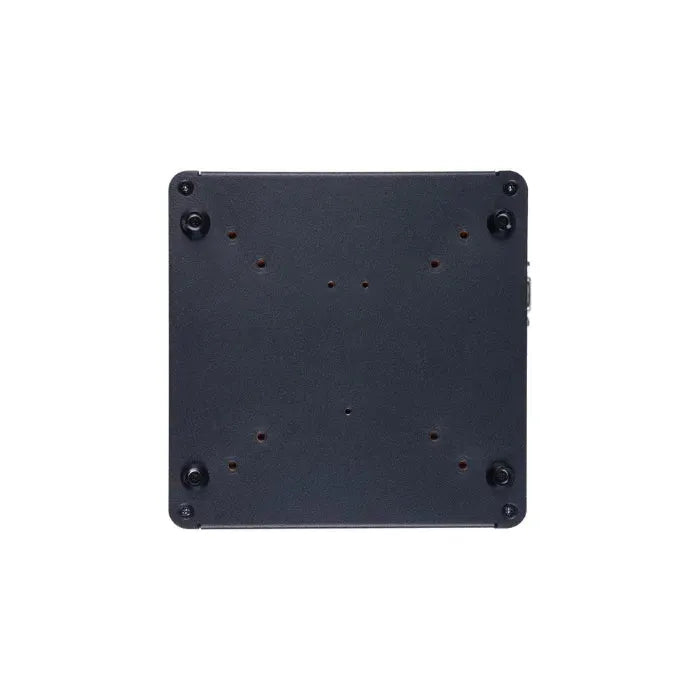

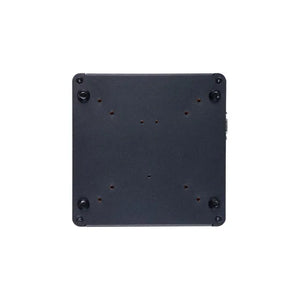

You can either place the device on a desk, mount the device on a VESA mount or mount it on a wall with the back screw holes. You can also place the device on a DIN Rail with the included brackets.
Application
The reComputer industrial series is a versatile and powerful platform that can be used to develop a wide range of AI-powered applications, enabling digital transformation across industries. Below are some of the applications it is suitable for:
- AI Video Analytics
- Machine Vision
- Medical Imaging
- Autonomous Mobile Robot (AMR)
- Generative AI

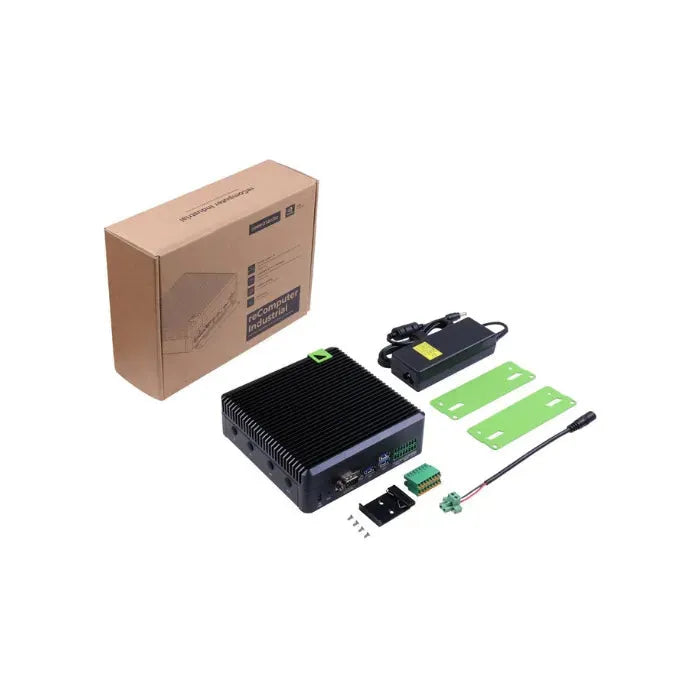

Part List
|
reComputer Industrial J4011 (System Installed) |
x1 |
|
19V Power Adapter(without power cord) |
x1 |
