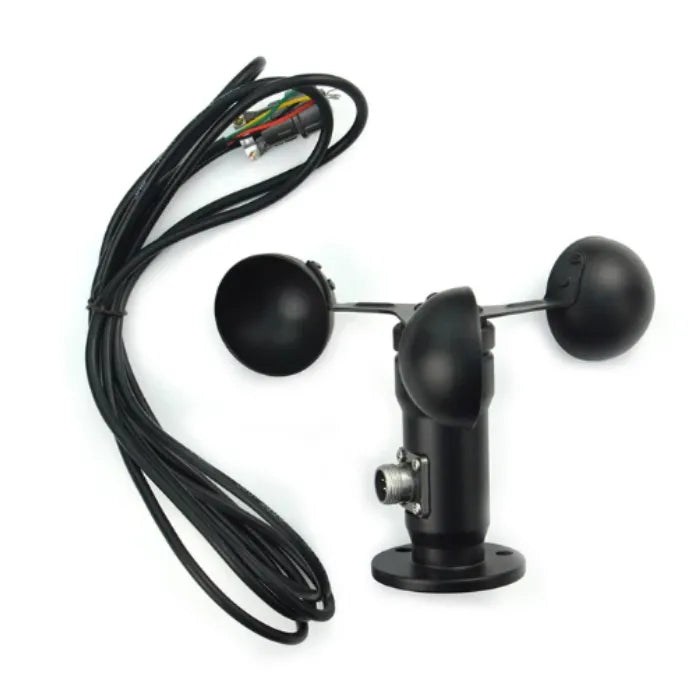

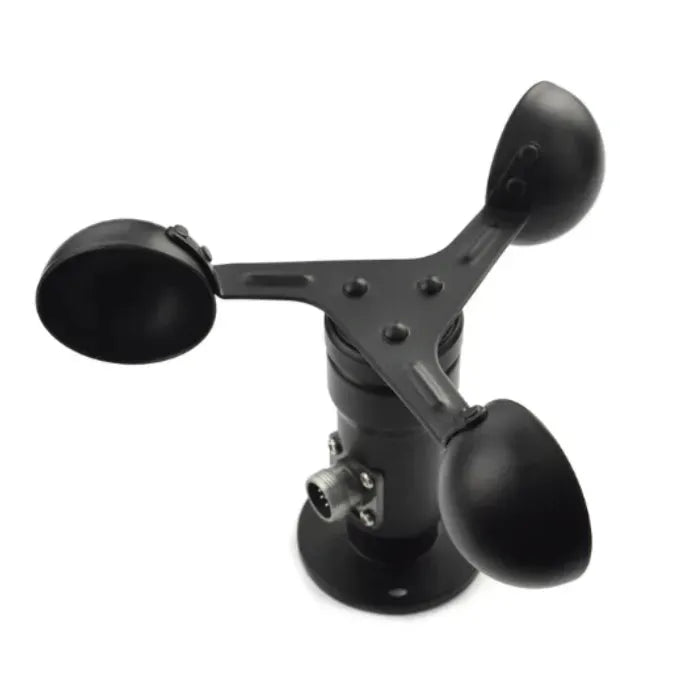

RS485 Wind Speed Transmitter (0~32.4m/s)

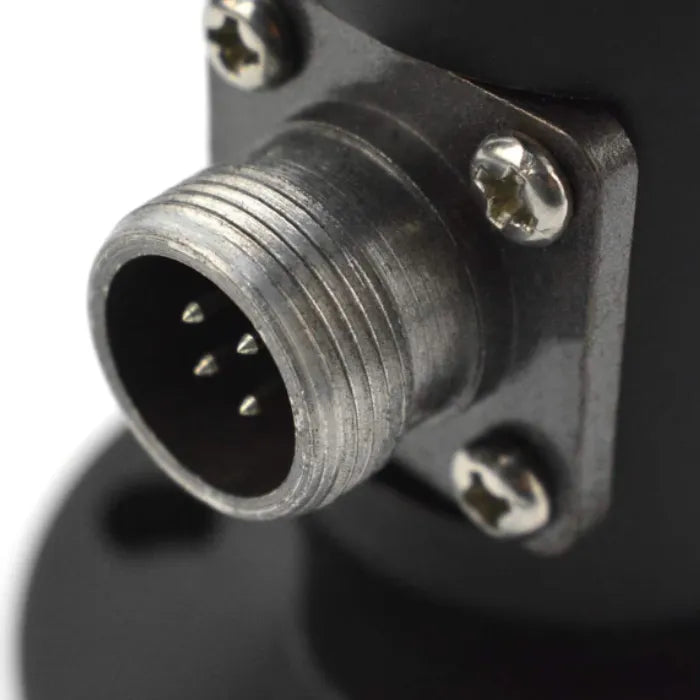

This RS485 Wind Speed Transmitter is a professional meteorological sensor designed to accurately measure horizontal wind speed in the range of 0 to 32.4 m/s. It features an integrated Hall sensor and is constructed using precision die-cast aluminum alloy, ensuring small dimension tolerance, high surface accuracy, and durability in harsh environments. The internal circuitry is fully protected for weather resistance, anti-corrosion, and waterproof performance, while the external connector uses a military-grade corrosion-resistant plug for extended product life.
The sensor adopts a low-inertia anemometer that efficiently converts wind into rotational motion, which is then translated into accurate digital signals via the internal Hall sensor. Its compact structure, ease of installation, and long transmission range make it suitable for a wide variety of applications including meteorology, environmental monitoring, oceanography, agriculture, transportation, and industrial automation.
Key Features
-
Wide Measuring Range: 0~32.4 m/s
-
Low Start-Up Wind Speed: 0.2–0.4 m/s
-
High Accuracy: ±0.3 m/s
-
Strong Environmental Resistance: Anti-corrosion, waterproof, high-temperature tolerant
-

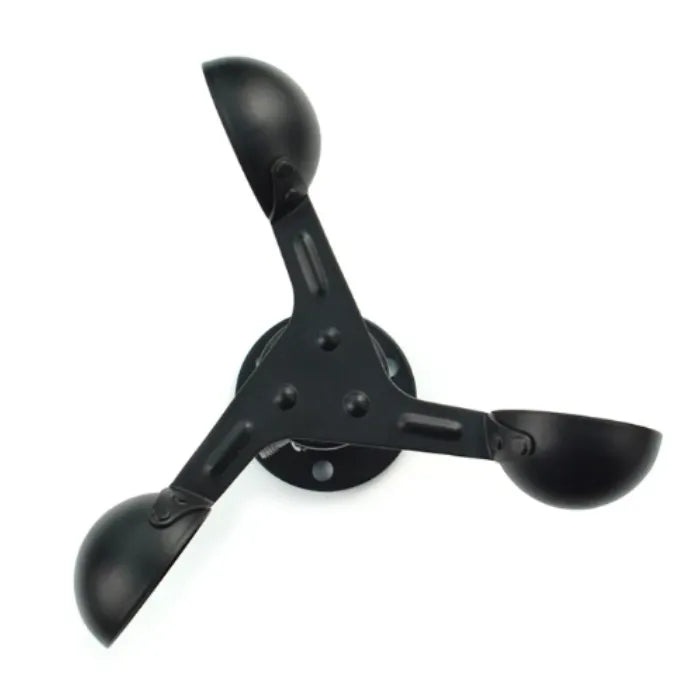

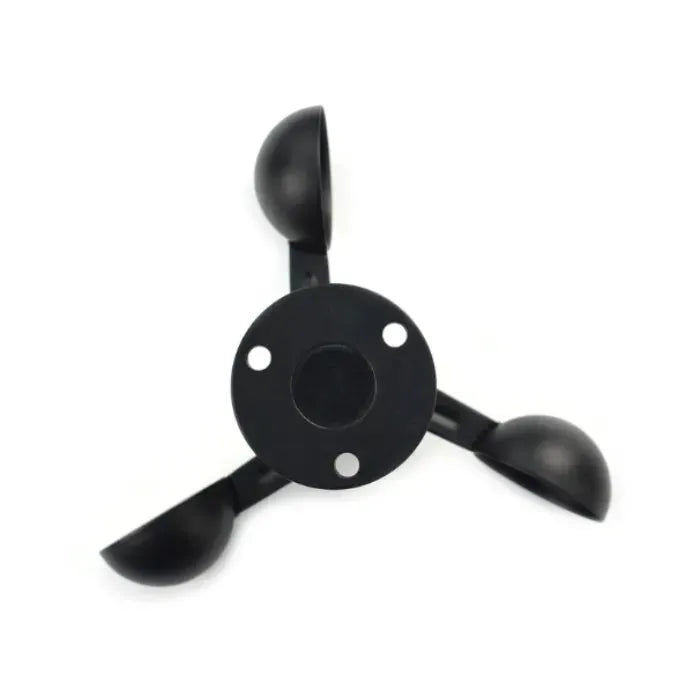

Durable Construction: Aluminum alloy shell and wind cups with plastic spray surface treatment
-
Stable and Reliable: Built-in Hall sensor with protected circuit
-
Long Transmission Distance: RS485 output with Modbus protocol
-
Compact and Easy to Install: Portable design with simple mounting dimensions
-
Low Friction Bearings: Enable smooth, responsive operation even in low winds
Technical Specifications
-
Measuring Range: 0~32.4 m/s
-
Start-Up Wind Speed: 0.2–0.4 m/s
-
Accuracy: ±0.3 m/s
-
Output Interface: RS485 (Modbus protocol)
-
Power Supply: 7–24V DC
-
Cable Length: 2.5 meters (98.43 inches)
-
Material: Aluminum alloy with corrosion-resistant coating
-
Dimensions: Refer to technical drawing for detailed measurements
Applications
-
Meteorological Stations
-
Environmental Monitoring Systems
-
Smart Agriculture
-
Wind Turbines and Renewable Energy
-
Marine and Port Operations
-
Industrial Safety Systems
Package Contents
-
RS485 Wind Speed Transmitter ×1
-
2.5m Signal Cable ×1
References
https://github.com/wilson-malone/RS485_Arduino_Wind_Direction_Speed_Sensors
