RS485 Connector Expansion Shield for LattePanda Alpha & Delta
This industrial-grade RS485 expansion shield from DFRobot is designed to add two parallel RS485 terminal ports to LattePanda Alpha, LattePanda Delta, and LattePanda 3 Delta boards with high reliability.

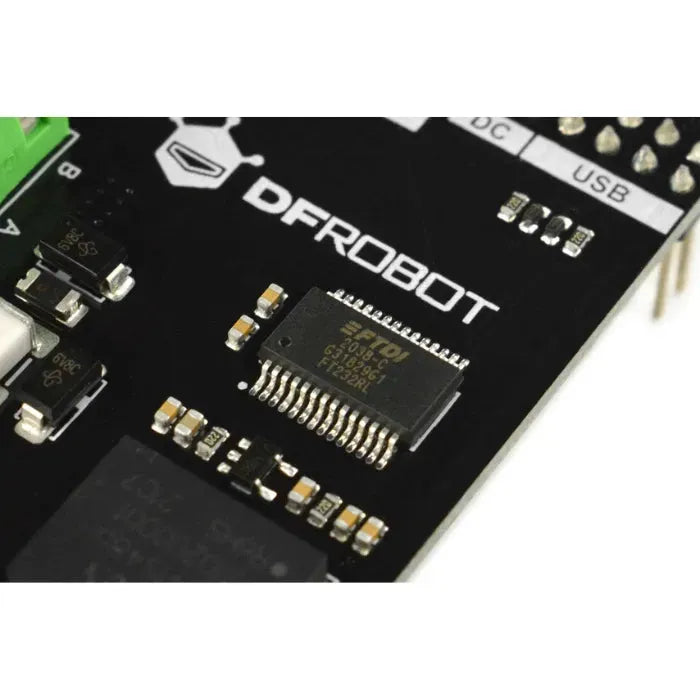

Equipped with an FTDI USB-to-serial chip and an industrial-grade isolated transceiver module, it provides signal and power isolation, lightning/surge protection, transient impulse voltage resistance, and bus protection. This ensures stable and secure data transmission in industrial environments while protecting your LattePanda mainboard.

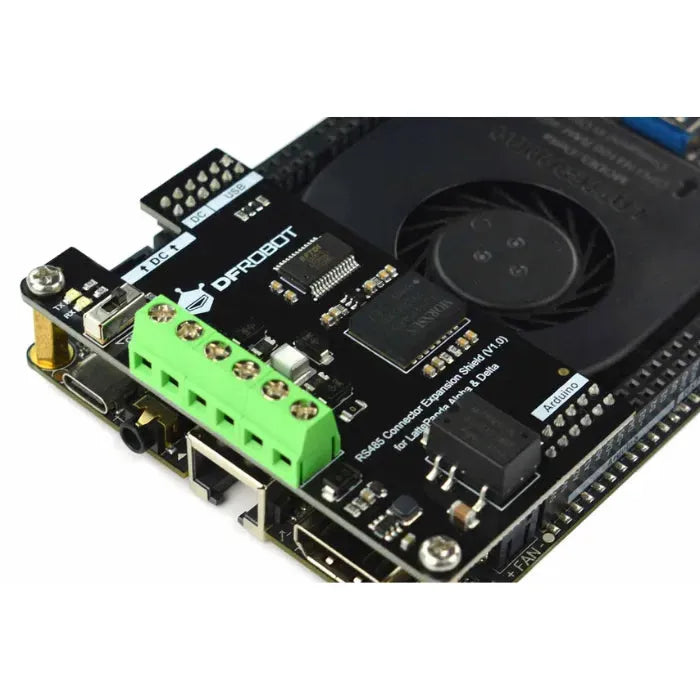

The shield features a stackable design, allowing for secure mounting using copper pillars without obstructing the mainboard’s heat dissipation area.
Application
Designed to support the development and use of industrial-grade RS485 communication on Windows systems (also compatible with Linux).
Features
-
Signal and power isolation for safe transmission
-
Reliable industrial-grade RS485 communication
-
Supports baud rates up to 1 Mbps
-
Provides 12V power output (100mA)
-
Built-in 120Ω terminal matched resistance
-
Easy to install and remove
-
Does not interfere with mainboard cooling
-
Includes mounting screws and copper pillars
Specifications
-
Operating Voltage: 5V
-
Operating Temperature: -40°C to +85°C
-
Communication Baud Rate: Up to 1 Mbps
-
Isolation Voltage: 3000VDC
-
Hot Plugging: Not supported
Shipping List
-

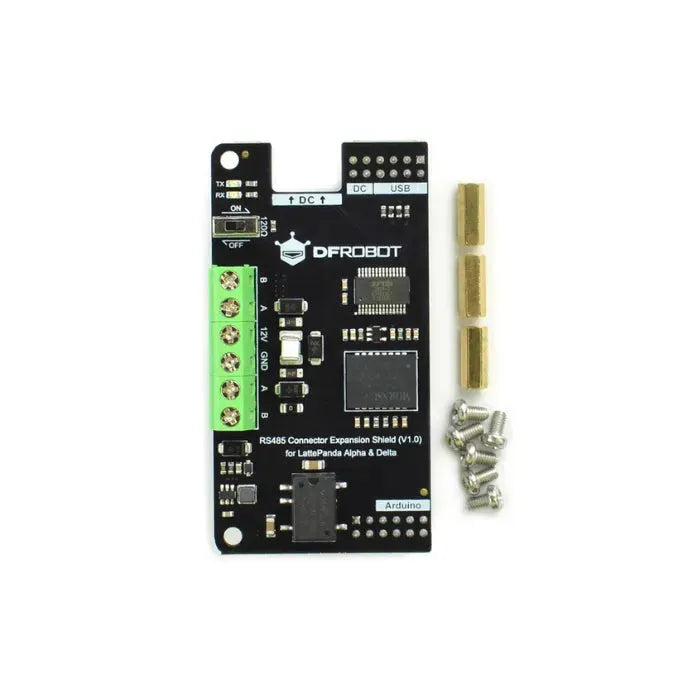

RS485 Connector Expansion Shield for LattePanda Alpha & Delta ×1
-
M3 Double-through Hexagonal Copper Column (12mm) ×3
-
M3 Round Head Screws ×6
Why Choose This RS485 Shield?
-
Designed for LattePanda Alpha, Delta, and 3 Delta
-
Industrial-grade protection and stable communication
-
Plug-and-play with stackable installation
-
Maintains full cooling performance of your mainboard
-
Ideal for industrial automation, serial networking, and embedded control
