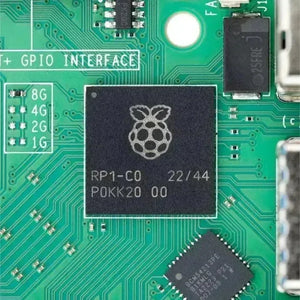

Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.

Key features include:

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache

• VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2

• Dual 4Kp60 HDMI® display output

• 4Kp60 HEVC decoder

• LPDDR4X-4267 SDRAM (options for 4GB/8GB)

• 2.4GHz/5GHz dual-band 802.11ac Wi-Fi®

• Bluetooth 5.0 / Bluetooth Low Energy (BLE)

• TF card slot, with support for high-speed SDR104 mode

• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

• 2 × 4-lane MIPI DSI/CSI port

• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

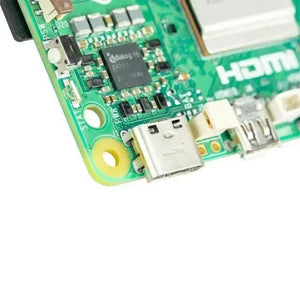

• 5V/5A DC power via USB-C, with Power Delivery support

• Raspberry Pi standard 40-pin header

• Real-time clock (RTC), powered from external battery (not included)

• Onboard power button for power on/off without disconnecting power adapter
