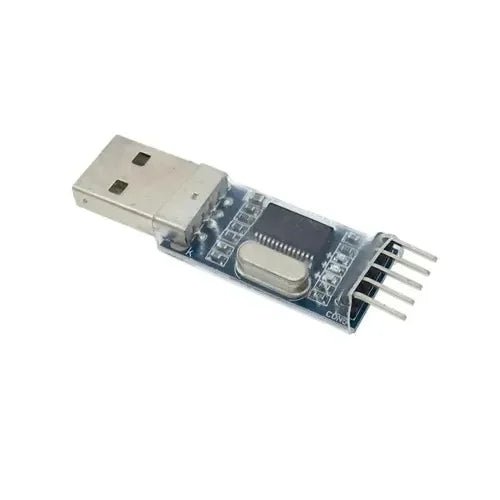

PL2303HX USB to TTL

The PL2303HX USB to TTL Converter is designed to meet the needs of developers, hobbyists, and professionals working with embedded systems, firmware upgrades, and serial communication. Here's a comprehensive look at its features, applications, and the benefits it brings:

Features

• High-Performance Chipset: The converter employs the Prolific PL2303HX control chip, ensuring high-speed and stable data transfer. This original, imported chip guarantees reliability and performance.

• Safety and Protection:

1. Overcurrent Protection: Features a 500mA self-recovery fuse to safeguard against excessive current, protecting both the converter and connected devices.
2. Insulation: The entire PCB is encased in a high-quality transparent heat-shrink tube, providing insulation against external environments and preventing short circuits while allowing visibility of silk-screen labels and LEDs.

• Real-Time Monitoring:

Two data transmission indicator LEDs provide immediate visual feedback on the status of data transfer, making it easy to monitor communication in real-time.

• Versatility in Voltage:

Equipped with 3.3V and 5V pin interfaces for compatibility with a wide range of devices that require different power levels.

• User-Friendly Design:

1. The parallel pin header design facilitates easier connection of DuPont wires, simplifying the flashing process.
2. Transparent Enclosure: Allows for easy identification of pin functions and LED status through the heat-shrink tube.

• Packaging:

Comes in a sealed anti-static bag, ensuring the product's integrity and quality upon arrival.

• OS Compatibility:

Supports Windows 7 and above, ensuring wide compatibility with modern operating systems.

Applications

• Firmware Upgrades:

Ideal for upgrading firmware in satellite set-top boxes, routers, hard drives, ADSL modems, and other broadband devices.

• Serial Communication:

Facilitates communication with devices like mobile phones, XBOX 360, GPS systems, car diagnostics, and DVD players.

• Microcontroller Programming:

Used for programming various microcontrollers including STC, NXP, Renesas, and NEC, providing a straightforward programming interface.

• Debugging Tools:

Serves as an essential tool for serial debugging in terminal emulators, simplifying the debugging process for embedded systems.

• Electronics Projects:

Converts USB signals to TTL signals, making it a go-to for electronics enthusiasts working on projects requiring serial communication.

Benefits

• Ease of Use:

The plug-and-play functionality, along with the clear indication of pin functions, makes setup and operation straightforward.

• Durability and Safety:

The combination of the self-recovery fuse, insulation, and anti-static packaging ensures both the longevity of the converter and safety for connected devices.

• Versatility:

Capable of supporting a wide range of applications from firmware upgrades to serial communication, catering to various needs in electronics and embedded systems.

• Reliability:

The use of the PL2303HX chip ensures stable performance, crucial for applications where data integrity is paramount.

Usage Tips

• Installation: Ensure you have the latest drivers from Prolific installed for optimal compatibility and performance.

• Connections:

1. Use the appropriate voltage level (3.3V or 5V) for your device to avoid damage or improper operation.
2. Connect the pins (TXD, RXD, GND) correctly to your target device, and use VCC only if the device requires power from the converter.

• Protection:

The self-recovery fuse offers protection, but care should still be taken not to exceed the current limits of the device being connected.

Conclusion

The PL2303HX USB to TTL Converter stands out as a reliable, user-friendly, and versatile tool for anyone involved in electronics, embedded systems, or firmware upgrades. Its robust design, high-quality components, and comprehensive protection features make it an excellent choice for both professional and hobbyist applications, ensuring that your serial communication needs are met with efficiency and safety.
