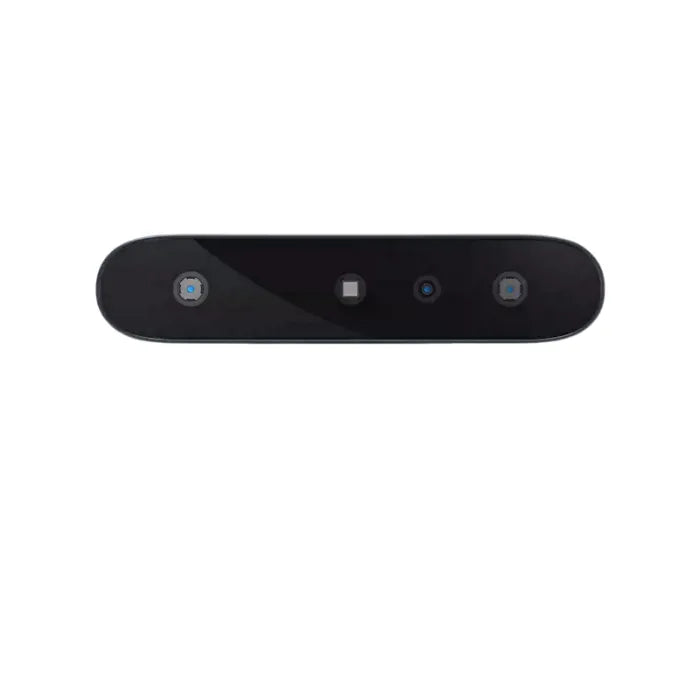

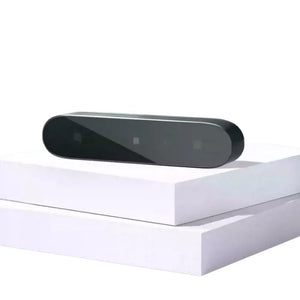

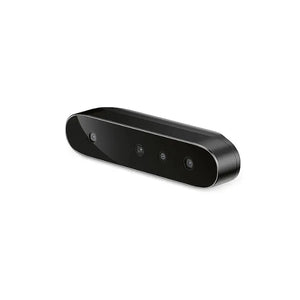

Gemini Scan is a consumer-grade 3D digitization product designed to meet the needs of various industries. With seamless integration with software, it allows for one-click model construction, scanning, and output. Gemini Scan offers OEM/ODM machine scanning cooperation services for various brands. It is widely applicable in various scenarios, offering precise scanning and high-speed performance.
Features
- High-Quality Scanning Module: Delivers precise 3D scanning, suitable for scanning various objects.
- High Frame Rate: Up to 30 fps, ensuring fast scanning.
- Color Reproduction: Scanning results with true color reproduction, restoring the object’s original appearance.
- Outdoor Scanning: Works effectively under varying lighting conditions.
- Single-Handed Operation: Simple to use, designed for ease of handling.
- Lightweight and Portable: Compact design for easy carrying and usage.
- Multi-Platform Compatibility: Works with Windows, Android, and Mac OS, offering versatile usability.
- Advanced Stitching Modes: Supports feature stitching and texture stitching for enhanced accuracy.
Specifications
| Specification | Gemini Scan |
|---|---|
| Depth Range | 150mm – 700mm |
| Single Frame Scan | 820mm x 560mm@700mm |
| Single Frame Accuracy | Up to 0.1mm |
| Scan Frame Rate | Up to 30fps |
| Data Transfer Interface | USB3.0 Type-C |
| Sunlight Interference | Indoor & Outdoor < 30lux |
| Minimum Scan Area | 150mm x 150mm |
| Minimum Point Distance | 0.16mm |
| Weight | 105g |
| Output Format | PLY, OBJ, STL |
| Model Printing | Supports 3D models for direct printing |
| Stitching Modes | Feature Stitching, Texture Stitching |
| Safety | Class 1 Near Infrared Laser |
| Dimensions | 120mm * 30mm * 26mm |
| Operating System | Windows 10/11, macOS, Android |
Applications
- All-Scene Use: Gemini Scan supports scanning in various scenes, suitable for scanning both small and large objects.
- Precise Modeling: With high-precision depth data, Gemini Scan delivers high-quality 3D models.
- 3D Printing: Standard 3D format files can be exported directly for 3D printing.
- Industrial Scanning: Provides precise scanning for industries like manufacturing and engineering design.
- Consumer Electronics: Offers efficient digital scanning solutions for a variety of consumer-grade products.
Gemini Scan Test Software (Windows)
| Feature | Description |
|---|---|
| Scan Types | Objects (large, medium, small), face, body |
| Scan Features | Geometric features, Texture features |
| Scan Modes | Fast, High Precision |
| Import Formats | obj, ply, stl |
| Export Formats | obj, ply, stl |
| Supported OS | Windows 10/11 (64bit), macOS Big Sur, and more |
| Functionality | Point Cloud Editing, 3D Model Optimization, History Record Processing |
SDK Support
Orbbec SDK provides an enhanced RGBD camera development experience, supporting multi-platform development (Windows, macOS, Linux), including:
- Hardware Location and Control: Control of device orientation and positioning
- Multi-Device Synchronization: Synchronization across multiple devices for seamless operations
- Cloud Processing: Supports point cloud data processing and transmission via the cloud
- System Compatibility: Compatible with Windows, Android, macOS, and more
- Model Optimization: Model optimization and data analysis tools supported
