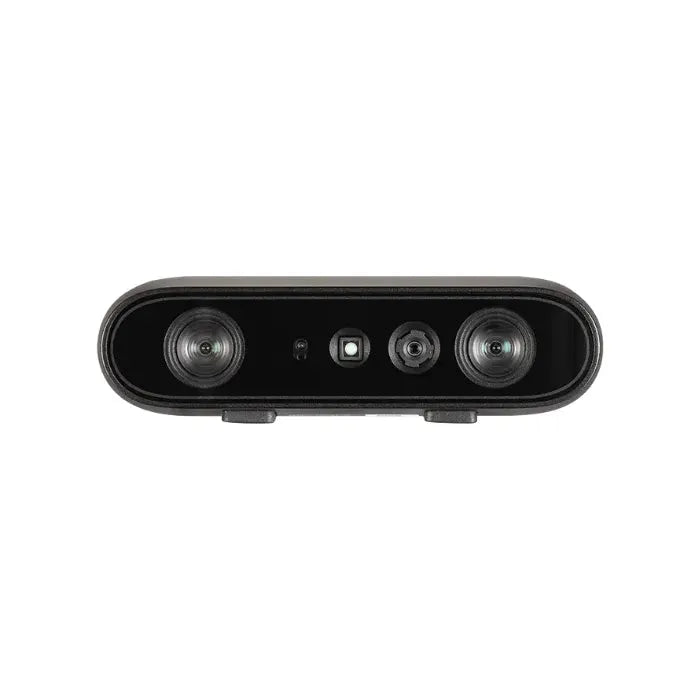

Orbbec Gemini 335 Stereo Vision Camera with Infrared Imaging
The Orbbec Gemini 330 series of depth + RGB cameras combines active and passive stereo vision technologies for seamless indoor and outdoor operation. Based on Orbbec's latest custom ASIC MX6800 and high-performance optical system, the Gemini 330 series continuously expands its product portfolio through modular extensions to flexibly meet the needs of different application scenarios.
The Gemini 335 is one of the flagship products of the Gemini 330 series. It has a 50mm baseline and is IP5X rated. It is easy to set up and use with the Orbbec SDK, and the camera delivers extremely accurate and reliable data in a wide range of lighting conditions, from pitch black to outdoor environments.
Features
Explore Everywhere with Confidence
Power at the Edge
Broad and Clear
Gemini 335 Specifications
Camera Specifications
| Parameter | Specification |
|---|---|
| Model | G40155 - 170 |
| Depth Technology | Stereo |
| Wavelength | 850nm |
| Depth Range | *0.10 - 20m+ (Optimal Range: 0.26 - 3m) |
| Depth Resolution/FPS | Up to 1280X800@30fps |
| Depth FOV | H90° V65° |
| RGB Resolution/FPS | Up to 1920X1080@30fps |
| RGB FOV | H86° V55° |
| Processing | Orbbec ASIC |
*Spatial Precision: ≤ 1.5% (1280 x 800 @ 2m & 90% x 90% x 90% ROI)
* Theoretical maximum depth range up to 65 meters
Physical Parameters
| Parameter | Specification |
|---|---|
| Depth Filter | All - Pass |
| IMU | Supported |
| Data Connection | USB 3.0 Type - C |
| Power Input | USB 3.0 Type - C |
| Trigger | Supported |
| Power Consumption | Average < 3.0W |
| Operating Environment | -10℃ - 45℃; Indoor/Outdoor; 5% - 90%RH(non - condensing) |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR & RGB |
| Dimensions (WHD) | 90mm x 25mm x 30mm |
| Weight | 97g |
| Installation | Bottom: ¼ - 20UNC; Back: 2x M3 |
