PACKAGE CONTENT
Weight: 0.032 kg
- 2.9inch NFC-Powered e-Paper x1
2.9inch Passive NFC-Powered E-Paper, No Battery, Wireless Powering & Data Transfer

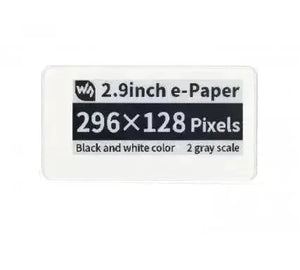

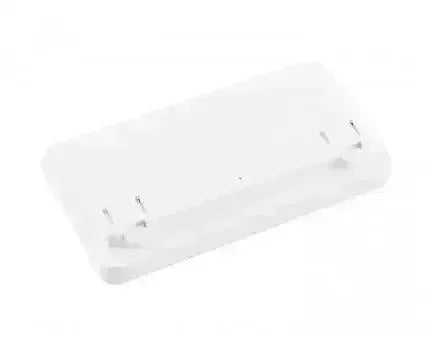

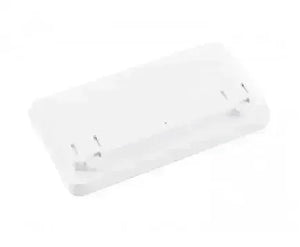

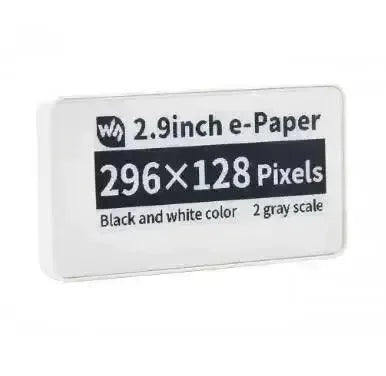

2.9" NFC-Powered E-Paper
Adopts Novel Passive NFC Technology
No Battery Required, No More Battery Life Trouble
Wireless NFC-Powered Display Refreshing
Passive NFC Solution, No Battery Required, No Messy Wiring, Stable Operation
How It Works
To Refresh The Display Content,
Use A Phone With an NFC Function, Or An NFC Reader,
Close To The E-Paper For Both Wireless Powering And Data Transfer
This product is not compatible with Samsung smartphones
Refreshing Example
Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card
Refreshed By ST25R3911B NFC Board
Recommended evaluation kit: 2.9inch NFC e-Paper Eval Kit
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Specifications
|
POWER SUPPLY |
Wireless |
GREYSCALE |
2 |
|
DISPLAY COLOR |
Black / White |
REFRESH TIME |
2s (data transfer time is not included) |
|
DOT PITCH |
0.138×0.138 |
DISPLAY SIZE |
66.89mm×29.05mm |
|
RESOLUTION |
296×128 |
OUTLINE DIMENSION |
87.5mm×47.7mm |
|
VIEWING ANGLE |
>170° |
Outline Dimensions
