MKS BaseV1.2 3D Printer Controller Board - OpenELAB

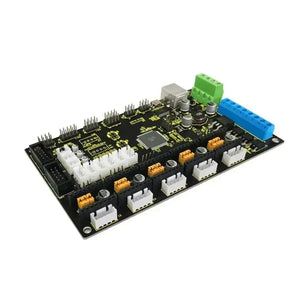

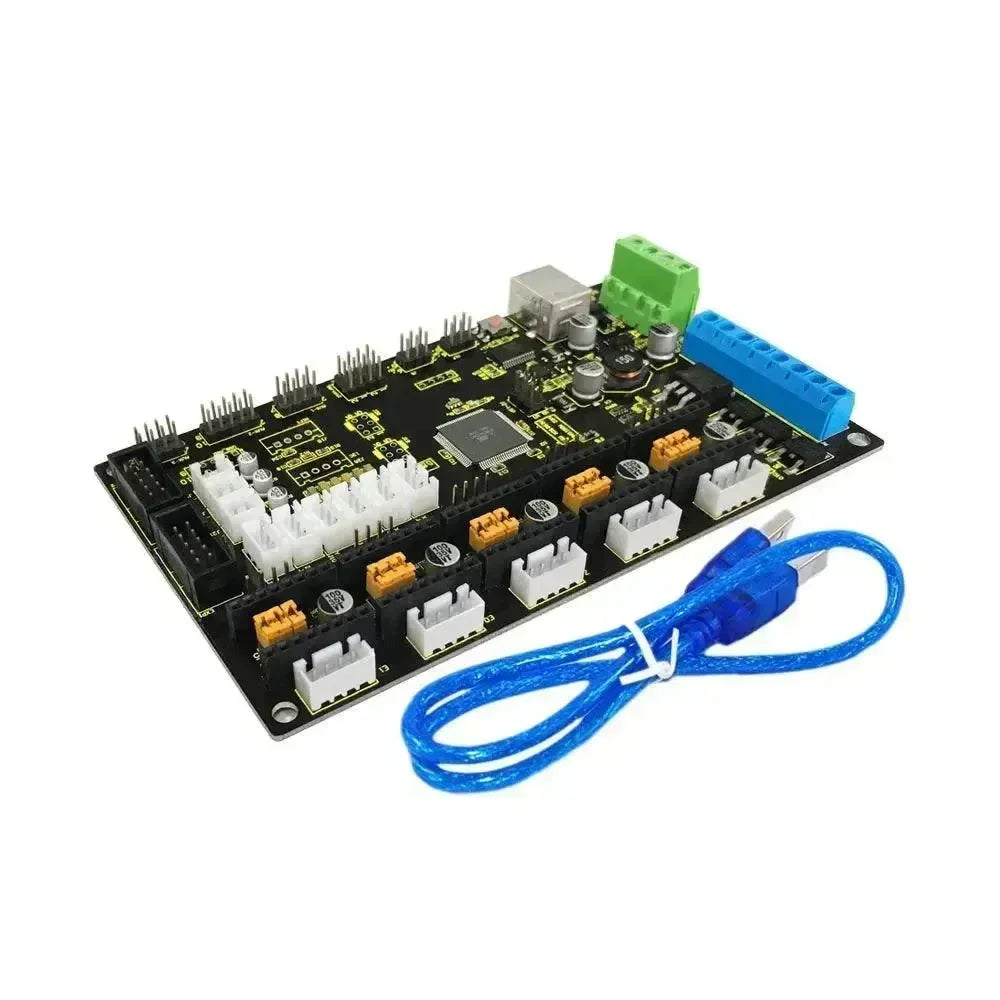

The new MKS Base 1.2 3D Printer Controller board combines and improves the assets of the RAMPS 1.4 and Arduino Mega 2560 boards on a fantastic single board solution. The MKS Base 1.2 is an optimal 3D printer controller solution for your Reprap 3D Printer.

Features

• The MKS Base 1.2 solves interface connection problems between the Arduino Mega 2560 and RAMPS 1.4 boards by having both integrated into a single board

• 5 Stepper Motor Driver Slots. The boards supports a wide variety of Stepper Motor Drivers - most notably A4988, DRV8825 and Ice-Blue Stepper Motor drivers drive

• The MKS Base 1.2 board uses a high quality 4-layer PCB which optimizes heat dissipation

• Firmware can use the same configuration as RAMPS 1.4

• Easy DISPLAY + SD-CARD connector - compatible pin header on board for 12864 & 2004 LCD Display controller panels.

• 6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax

• 3 x 5V output, 3 x Power voltage output

• Reserve motor pulse and direction output port

• Support 12V-24V power input
