M5StickC Mini JoyC HAT

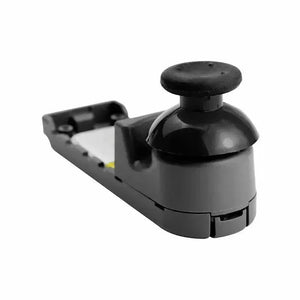

Mini JoyC HAT is an expansion base designed for the M5StickC/C-Plus, serving as a joystick controller. It features an XY-axis joystick and a button function, providing intuitive control capabilities. The HAT incorporates an I2C HY2.0 standard interface, enabling easy expansion with other components and modules.

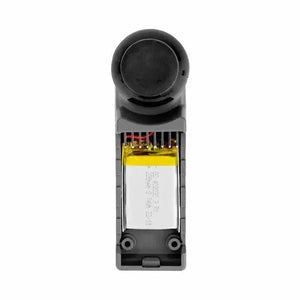

Equipped with a 200mAh lithium polymer battery and an SK6812 RGB LED, Mini JoyC HAT offers added functionality and visual feedback. It is a versatile tool suitable for various applications, such as remote control of drones, trolleys, and robot joints.

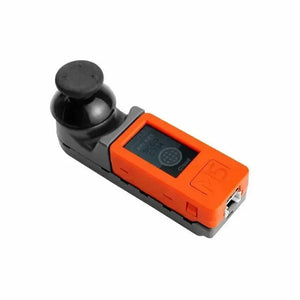

By utilizing the Mini JoyC HAT with M5StickC/C-Plus, users can effortlessly navigate and control their devices with precision and convenience. Its compact design and compatibility with the M5StickC/C-Plus make it an ideal choice for enhancing the functionality and interactivity of electronic projects.
Features
- The maximum angle of the joystick in all directions is 23°
- The total resistance is 10KΩ
- Center button
- SK6812 programmable RGB LED
- 200mAh battery
- HY2.0-4P interface
Includes
- 1x Mini JoyC HAT
- 1x lanyard
- 1x 2.0mm hex key
- 2x M2*8mm screws (cup head, self-tapping)
Applications
- Drone remote control
- Robotic joint control
- Light conditioner
- Remote control of the trolley
Specification
| MCU | STM32F030F4P6 |
| RGB | SK6812-3535 |
| support voltage | 3.3V |
| Battery level | 200mAh |
| Maximum angle of the joystick in all directions | 23° max in all directions |
| Total resistance | 10kΩ |
| Center button | yes |
| Product Size | 81.05mm × 36mm × 24mm |
| Package Size | 101mm × 27mm × 22mm |
| Product Weight | 20.6g |
| Package Weight | 31.2g |
