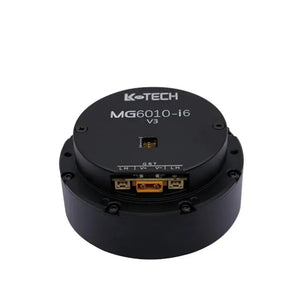

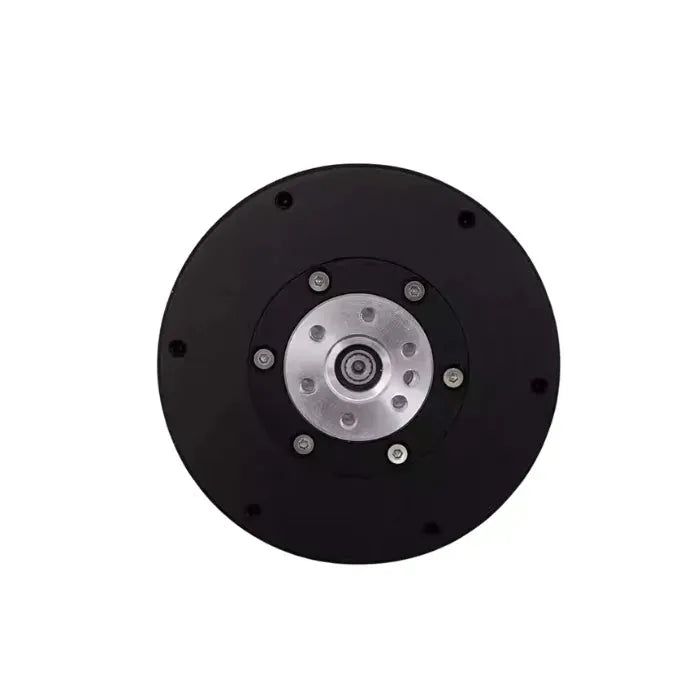

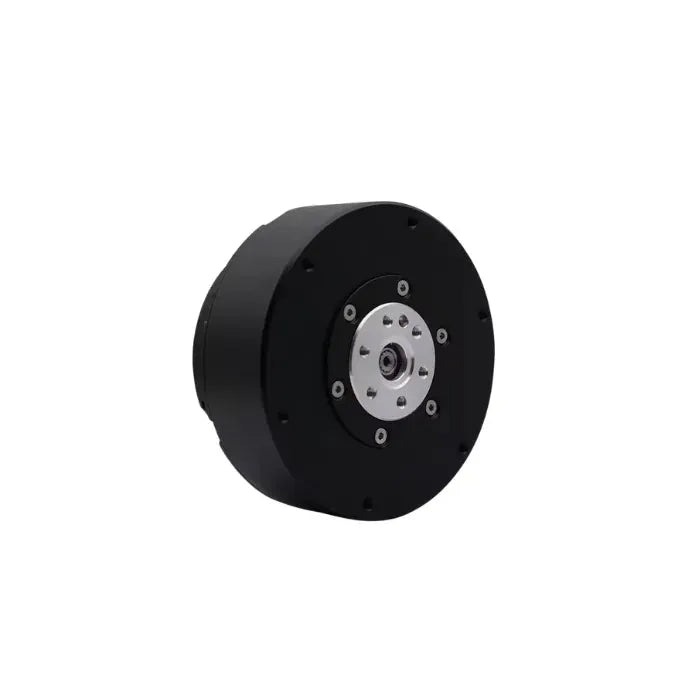

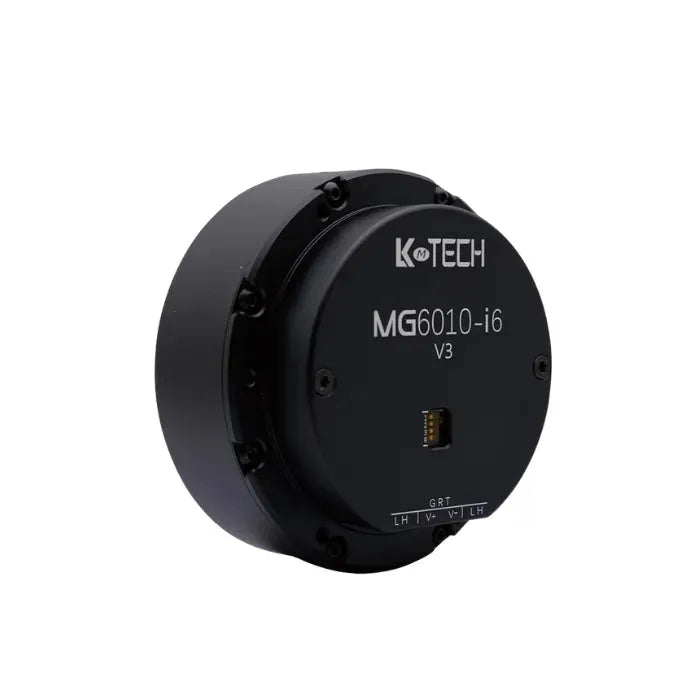

MG6010-i6 V3 Dual Encoder Robot Motor
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
MG6010-i6 V3 Dual Encoder Robot Motor
The MG6010E-i6V3 is a high-efficiency brushless servo motor with a compact form factor, integrated planetary gearbox, and dual encoder system (18-bit motor + 14-bit reducer) for precision motion control. Engineered for demanding robotics applications, it delivers 5 Nm rated torque and 10 Nm peak torque, making it ideal for robotic joints, AGVs, and quadruped platforms that require compact power and accuracy.
Key Features
-
Torque: 5 Nm rated / 10 Nm peak
-
Speed: 170 rpm (24V) / 391 rpm (48V), max 505 rpm
-
Voltage: 24V / 48V
-
Dual Encoder: 18-bit motor + 14-bit reducer
-

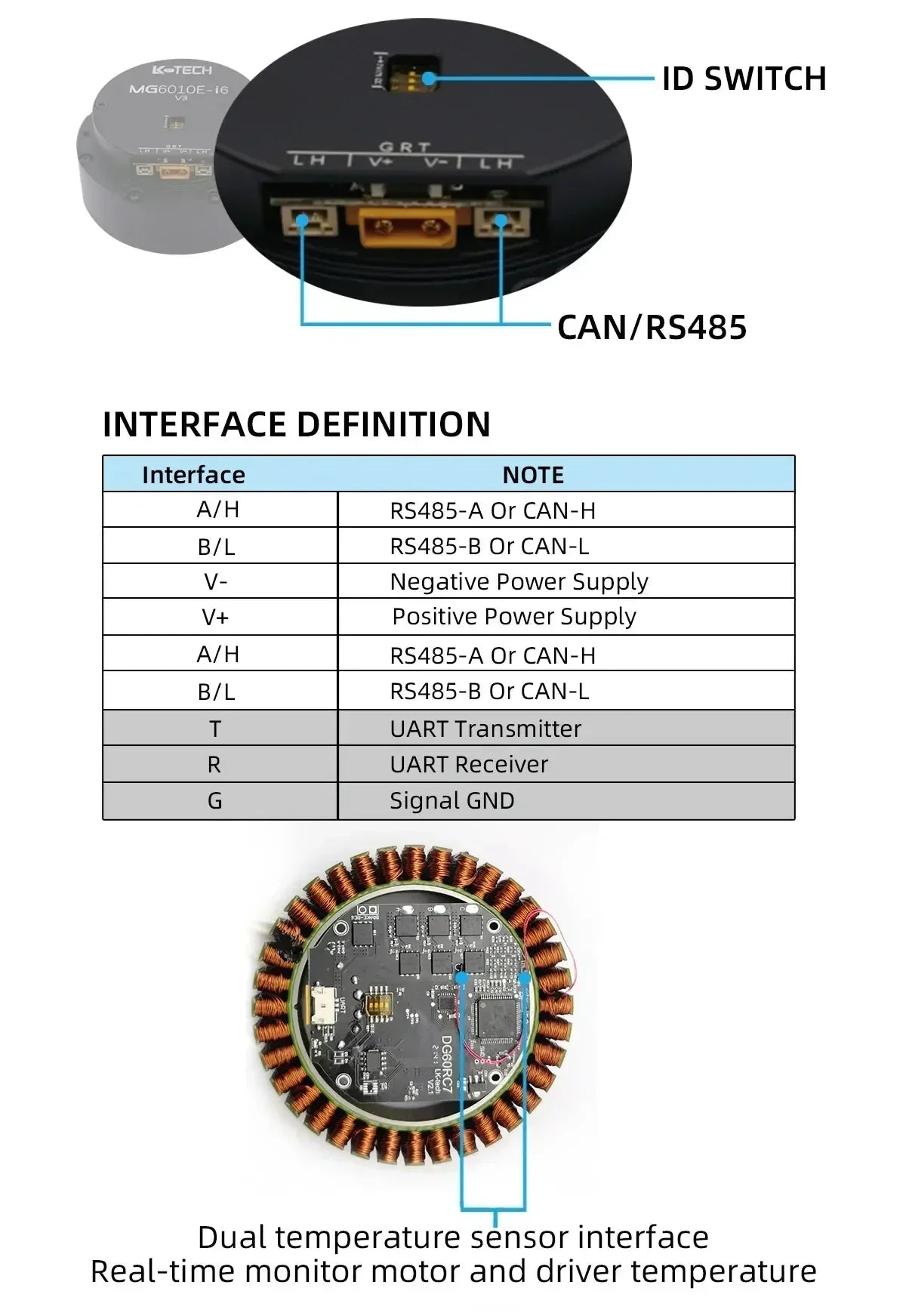

Communication: RS485 / CAN (up to 2 Mbps)
-
Gearbox: 1:6 (PG4106), ≤6 arcmin backlash
-
FOC Control: Torque, speed & position loops
-
Motor Weight: 343g | Inertia: 805 g·cm²
-
Temp Monitoring: Supported
Specifications
| Parameter | Value |
| Rated Torque | 5 Nm |
| Max Torque | 10 Nm |
| Rated Speed | 170 rpm (24V) / 391 rpm (48V) |
| Max Speed | 505 rpm |
| Voltage Options | 24V / 48V |
| Dual Encoder | 18-bit (motor) + 14-bit (reducer) |
| Gear Ratio | 1:6 (PG4106), ≤6 arcmin backlash |
| Communication | RS485 / CAN |
| Baud Rates | RS485: 9600–2M bps, CAN: up to 1M bps |
| Control Modes | Torque / Speed / Position Loop |
| Motor Weight | 343 g |
Applications
-
Robotic Arms
-
Quadruped Robots
-
AGVs / AMRs
-
Wearable Robotics
-
Precision Automation Systems
