M5Stamp Pico (5pcs)
STAMP-PICO's ultra-compact design incorporates two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB, measuring the same as a postage stamp. It is an ideal solution for space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices thanks to its low power consumption.
-

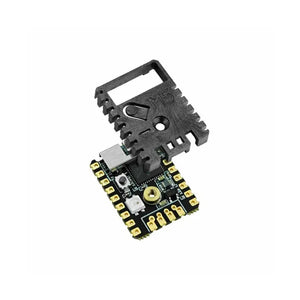

MULTIFORM: The product is available for installation in five different ways, offering a wide range of options. (SMT, DIP, flywire, grove interface), with a high-temperature-resistant plastic shell, 3D antenna, and components can be better protected.
-
LOW-CODE DEVELOPMENT: STAMP-PICO supports the UIFlow graphical programming platform, offering scripting-free, cloud push capabilities and full compatibility with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms, enabling rapid application development.
-
HIGH INTEGRATION: STAMP-PICO contains a 5V->3.3V DC/DC port, GPIOx12, a programmable RGB light x1, a button x1, and a finely tuned RF circuit, providing stable and reliable wireless communication.
-
STRONG EXPANDABILITY: Easy access to M5Stack's ecosystem of hardware and software, comprising a wide range of sensors, actuators, functional modules and accessories, allowing for rapid adaptation.
Product Features
- The chip-set is an ESP32-PICO-D4 (2.4 GHz Wi-Fi dual mode).
- It supports UIFlow graphical programming.
- It has a multi-IO pinout and supports multiple application forms (SMT, DIP, fly-by-wire).
- It has integrated programmable RGB LEDs and buttons.
- It is a miniature module.

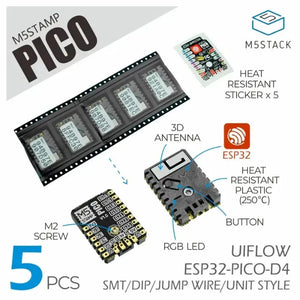

Include
- M5Stamp Pico (5pcs):
- 5 x M5Stamp Pico
- 5 x Sticker
Applications
- Instrumentation
- Wi-Fi Remote Monitoring/Control
- Smart Home
- Color LED Control
- Fire/security intelligent integrated management
- Smart Card Terminal
- Wireless POS
Specification
| Resources | Parameter |
|---|---|
| Master Control Resource | ESP32-PICO-D4 |
| Flash | 4MB |
| Input Voltage | 5V @ 500mA |
| Power consumption | Normal standby:5V@29mA, WIFI STA mode: 5V@60mA, BT mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA |
| Wireless communication distance | AP Mode: 16m |
| UI | Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1 |
| Antenna Type | 2.4G 3D Antenna |
| Wi-Fi | 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz |
| Module Resource Interface | ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter |
| IO interface x12 | G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33 |
| IO interface spacing | 2.54mm |
| perating temperature | 0°C to 60°C |
| Net weight | 2.6g |
| M5Stamp Pico (5pcs) Gross weight | 18g |
| M5Stamp Pico Mate Gross weight | 6g |
| M5Stamp Pico DIY Kit Gross weight | 12g |
| Product Dimensions | 18 * 24 * 4.6mm |
| Package Size | 85*55mm sealing bag (translucent) |
