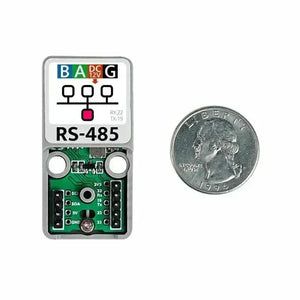

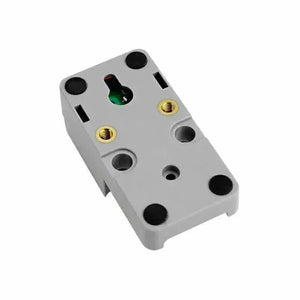

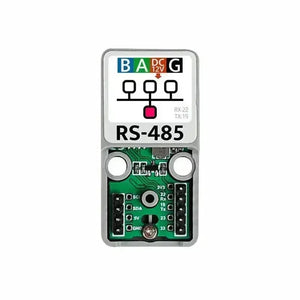

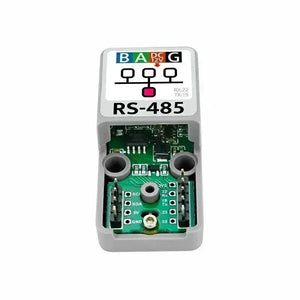

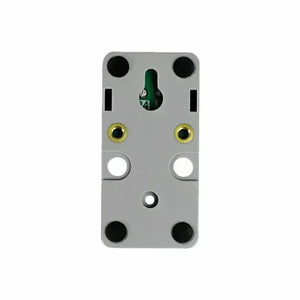

M5Stack ATOMIC TTL-RS485 Base
- €9,90 EUR
- €9,90 EUR
- Unit price
- per
Free Shipping from 50€ in EU / 80€ Worldwide
- All products are tax-inclusive.
- Product Inventory Location: China
- EU Countries Delivery Time: 1.5 weeks.
- Other Countries Delivery Time: 2 ~ 2.5 weeks.
Note: All products are tax-inclusive.
Atomic RS485 Base is a versatile TTL-RS485 converter designed specifically for use with M5Atomic. This converter serves as a bridge between the TTL level and the RS485 level, allowing seamless communication between devices.
RS485 is a widely adopted communication protocol standard that defines the electrical characteristics of drivers and receivers in a serial communication system. It supports a multi-point system, making it a preferred choice in various industrial applications. When your equipment requires RS485 communication and control capabilities, the ATOM RS-485 is an excellent solution.
The Atomic RS485 Base features an integrated DC/DC voltage regulator chip. This allows for the direct conversion of the RS485's 12V voltage to 5V, providing a power supply for M5ATOM without the need for a separate power source. This streamlined design eliminates the hassle of managing multiple power supplies, ensuring a simplified and efficient setup.
Enjoy reliable and efficient data transmission while simplifying your power supply setup. Upgrade your communication capabilities with the Atomic RS485 Base today.
Features
- Compatible ATOM Matrix/ATOM Lite/ATOMS3/ATOMS3 Lite
- SP3485EE
- Built-in DC/DC
- Multi-point communication
Includes

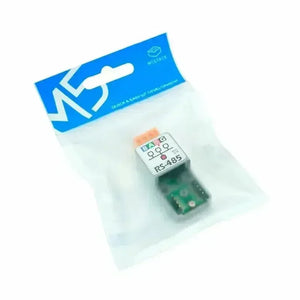

- 1x Atomic RS485 Base
Applications
- RS485 Multi point communication
- Industrial control node
Specification
| Resources | Parameters |
|---|---|

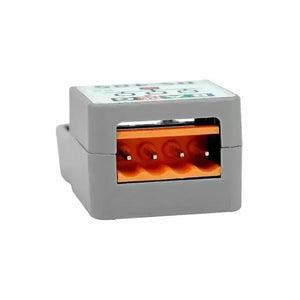

| External port | Parameter External port VH-3.96 4P |
| level-conversion IC | SP3485EE |
| DC-DC | A0Z1282CI |
| Case material | Plastic ( PC ) |
| Product Size | 24*48*18mm |
| Package Size | 54*54*20mm |
| Product Weight | 20g |
| Package Weight | 30g |
