M5Stack OLED Unit 1.3" 128 × 64 Display

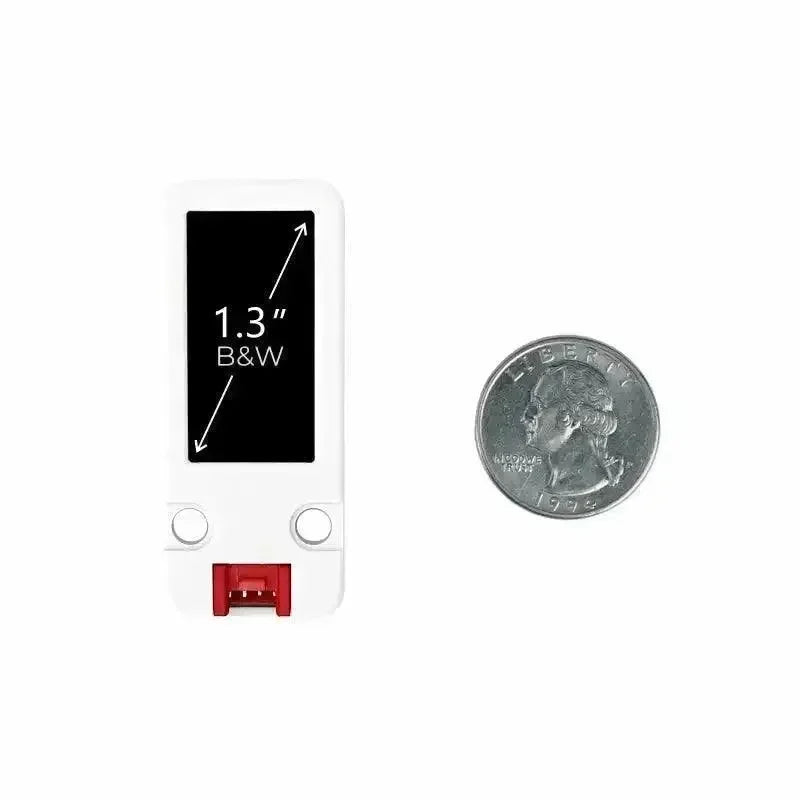

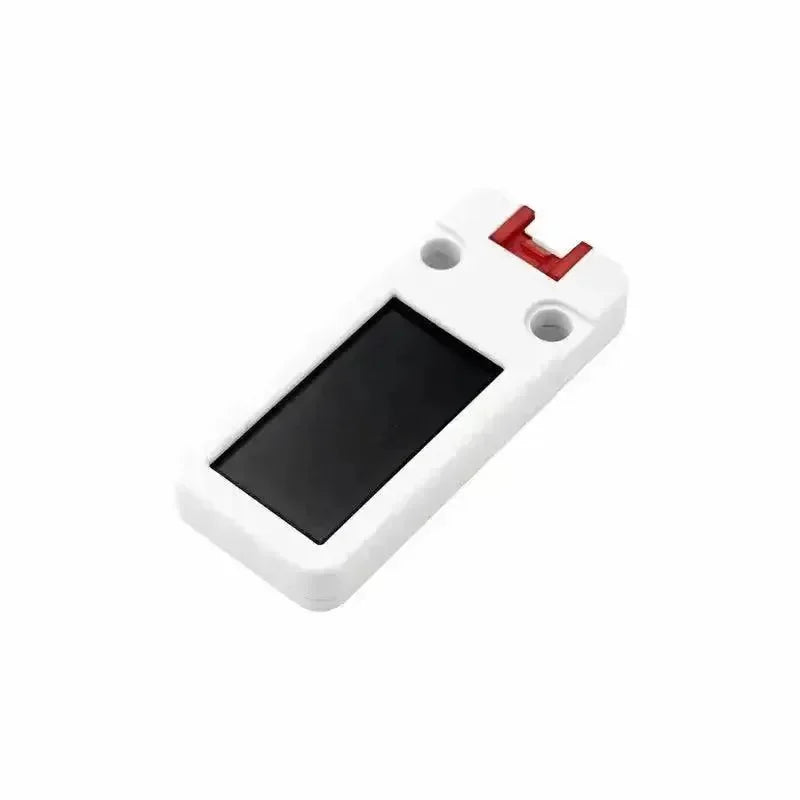

OLED Unit is a 1.3-inch OLED expansion screen unit designed to display simple content as a display panel. It features a resolution of 128x64 pixels and utilizes the SH1107 drive scheme. OLED Unit supports black and white display, providing clear and contrasted visuals.

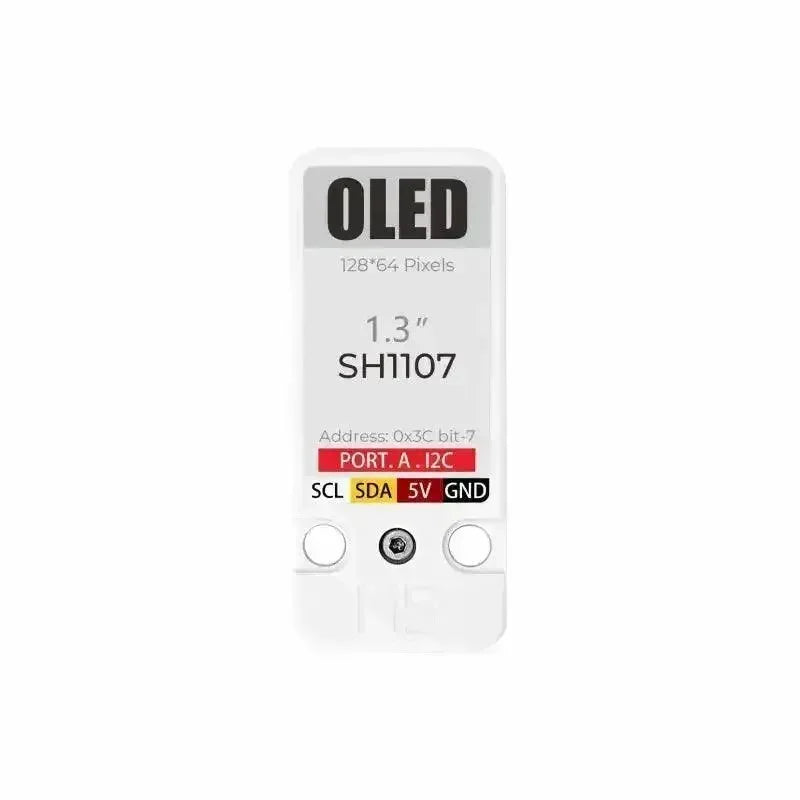

The driver chip of the OLED Unit utilizes the I2C communication interface. This allows for easy integration with existing devices by connecting them to the I2C bus, saving valuable IO pins. The I2C interface provides a convenient and efficient means of communication between the OLED Unit and the host device.
The back of the OLED screen is equipped with a magnetic design, enabling easy fixation on metal surfaces through adsorption. This design feature provides convenience and flexibility when integrating the OLED Unit into various instruments or control devices.
OLED Unit is suitable for embedding in a wide range of applications where a compact and simple display panel is required. It can be used in instruments, control devices, or any other systems that need to present basic information or visual feedback.
Product Features
- OLED display panel
- SH1107 drive scheme
- Display color: black/white
- I2C communication interface
- 128*64 resolution
- Viewing angle: full viewing angle
- Magnetic back design

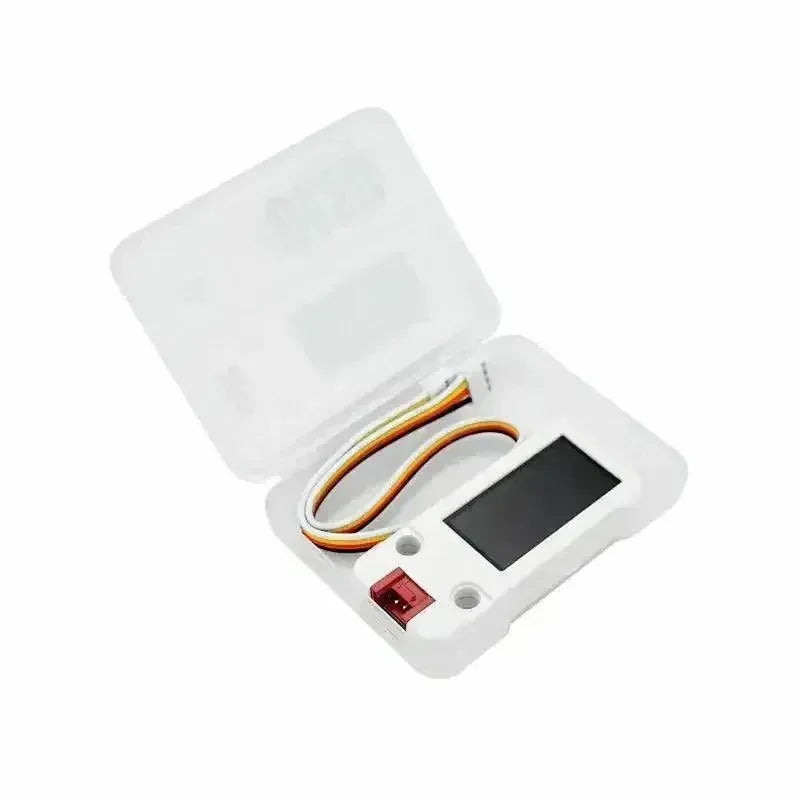

Include
- 1x Unit OLED
- 1x HY2.0-4P Cable
Applications
- Information display
Specification
| Specification | Parameter |
|---|---|
| Working current | 58mA |
| Communication protocol | I2C address: 0x3C |
| Display size | 14.7 × 29.42（mm） |
| Pixel pitch | 0.17×0.17（mm） |
| Pixel size | 0.15×0.15（mm） |
| Viewable | Full view |
| Operating temperature | 0°C to 60°C |
| Net weight | 9.3g |
| Gross weight | 20g |
| Product Size | 24*56*8mm |
| Package Size | 67*53*12mm |
| Case material | Plastic ( PC ) |
