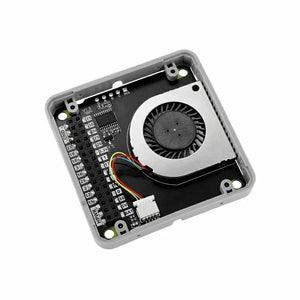

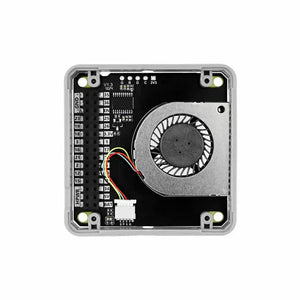

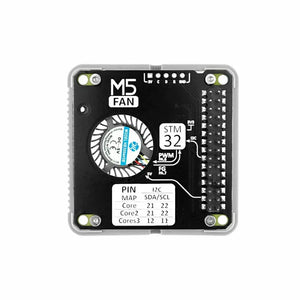

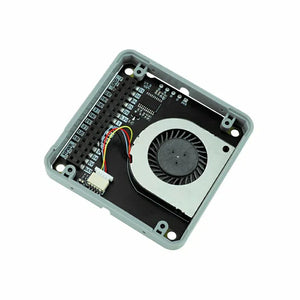

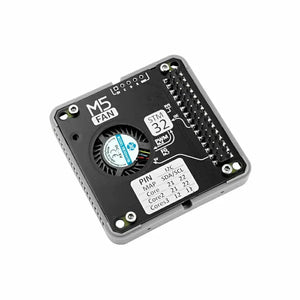

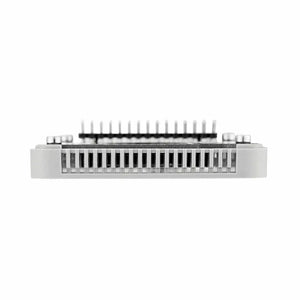

Module Fan v1.1 is a cooling module designed for M5Stack stacked systems, featuring a built-in STM32 microcontroller. It uses the I2C protocol for control, supporting fan speed reading and control, as well as stall protection. This module is primarily used for cooling in stacked systems, effectively improving the thermal performance of the system. It is suitable for embedded devices, smart hardware, and other applications requiring thermal management.
Features
- M5Stack Stacked System
- STM32 Microcontroller
- I2C Protocol Control
- Fan Speed Reading and Control
- Stall Protection Feature
- Development Platforms
Includes

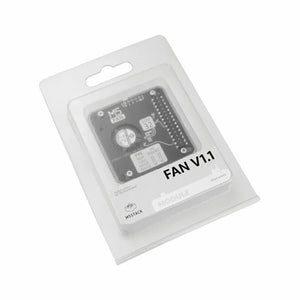

- 1 x Module Fan v1.1
Applications
- Cooling for M5Stack development platforms
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| Communication Method | I2C (0x18) |
| Operating Voltage | 5V |
| Noise Test (ambient noise 40.8dB) | PWM 20%:48.6dB PWM 60%:64.5dB PWM 100%:70.6dB |
| Operating Power Consumption | PWM 20%:DC-5V@13.52mA PWM 60%:DC-5V@56.19mA PWM 100%:DC-5V@125.14mA |
| Standby Power Consumption | DC-5V@503.49uA |
| Fan Speed | 11500RPM ±10% |
| Maximum Airflow | 1.23 CFM |
| Fan Speed Control | Supports fan speed reading and PWM control |
| Stall Protection | Supports stall protection feature |
| Operating Temperature | 0-40°C |
| Product Size | 54.0 x 54.0 x 13.1mm |
| Product Weight | 14.9g |
| Package Size | 95 x 184 x 15.7mm |
| Package Weight | 27.9g |
Learn
Stall Instructions
If the fan stalls due to foreign objects, the fan will automatically resume operation once the obstruction is cleared. However, prolonged stalling may damage the fan and even cause it to burn out. Please promptly clear any blockages and ensure the fan operates normally.
Cooling Module Installation

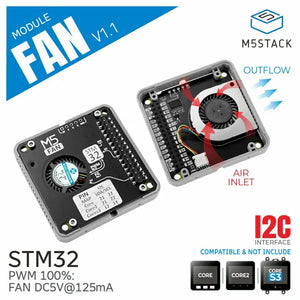

The intake of Module Fan v1.1 is designed at the bottom of the module. To achieve effective cooling, it is recommended to stack it on top of the module that requires cooling, as shown in the image below.
Schematics
Model Size
Arduino
Protocol
