M5Stack Cardputer-ADV & CAP LoRa-1262 Meshtastic Kit

M5Stack Cardputer-ADV & CAP LoRa-1262 Meshtastic Kit

55,95 €

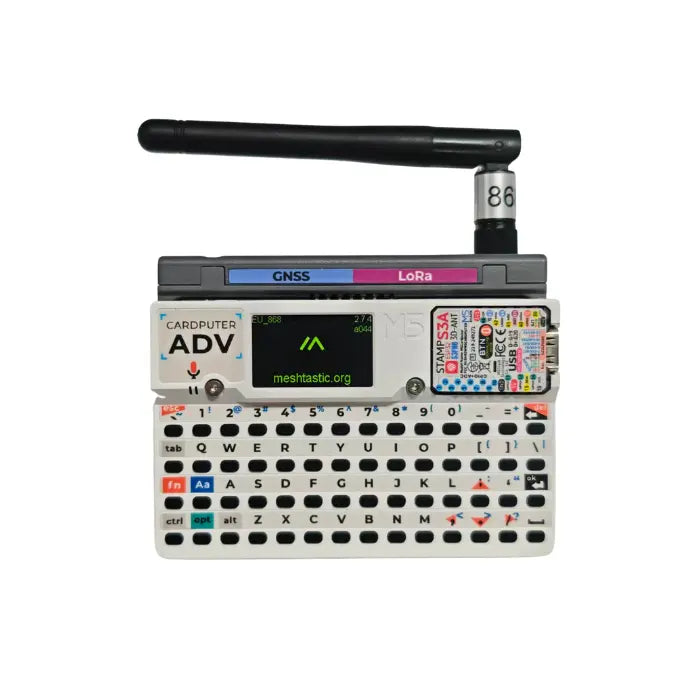

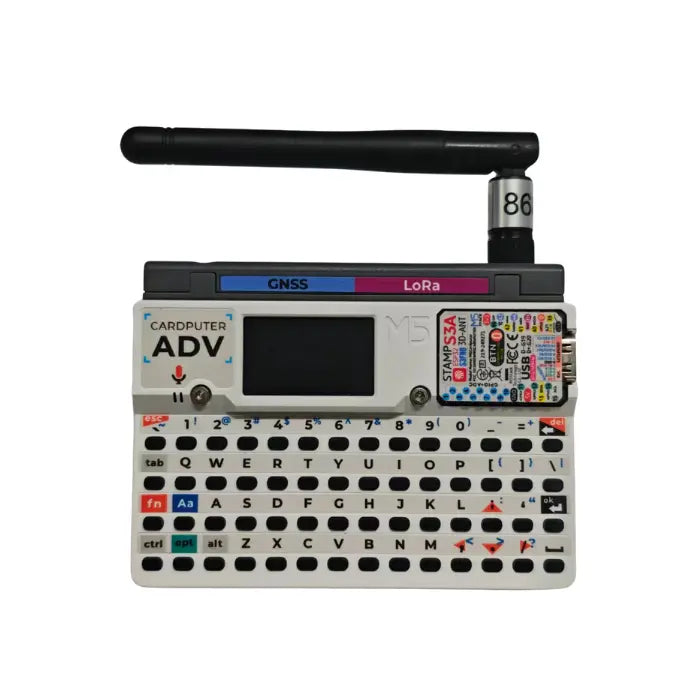

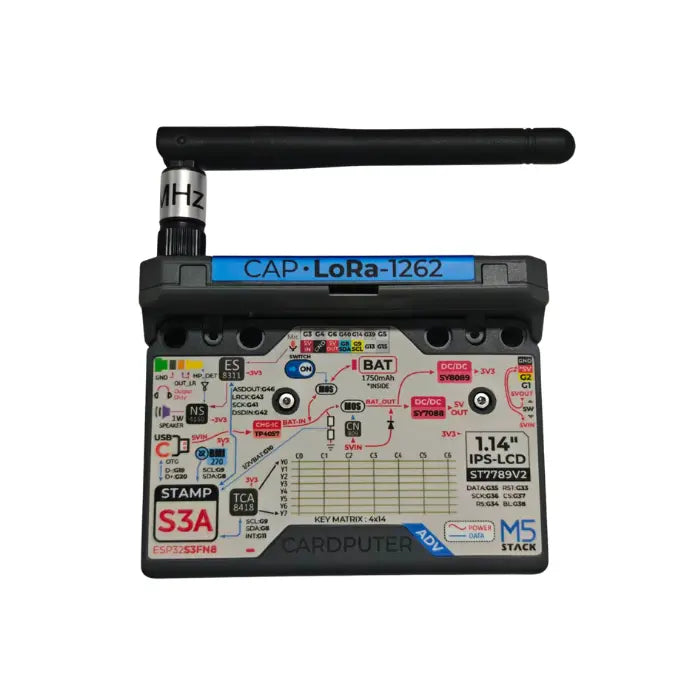

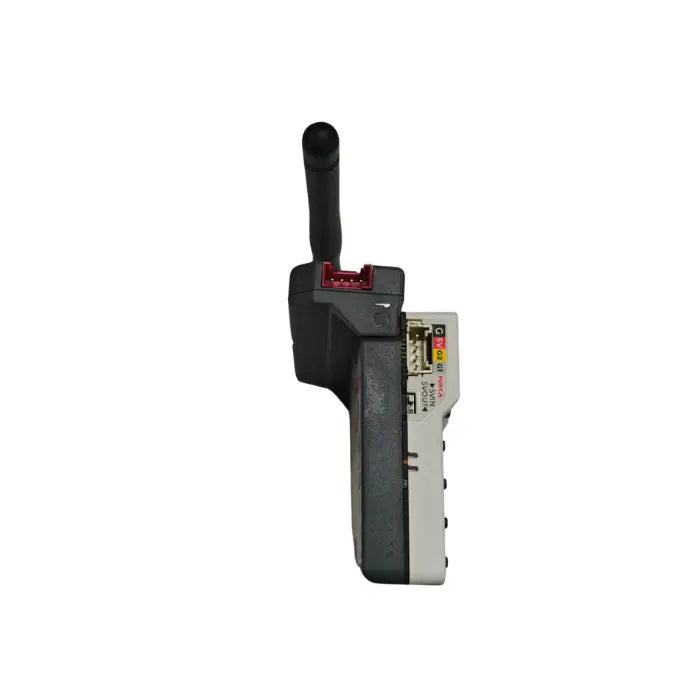

M5Stack Cardputer-ADV & CAP LoRa-1262 Meshtastic Kit is a bundled portable Meshtastic solution built from two official M5Stack hardware components: the Cardputer ADV handheld terminal and the CAP LoRa-1262 expansion module. This listing is intentionally created as a combined kit, not as a single standalone component, and is prepared with Meshtastic firmware preflashed for faster deployment.

The bundle joins a keyboard-equipped ESP32-S3 handheld platform with a dedicated SX1262 LoRa and GNSS expansion board. Together, the two parts form a compact portable node suitable for off-grid text messaging, mesh communication, and location-aware field use.

What This Kit Combines

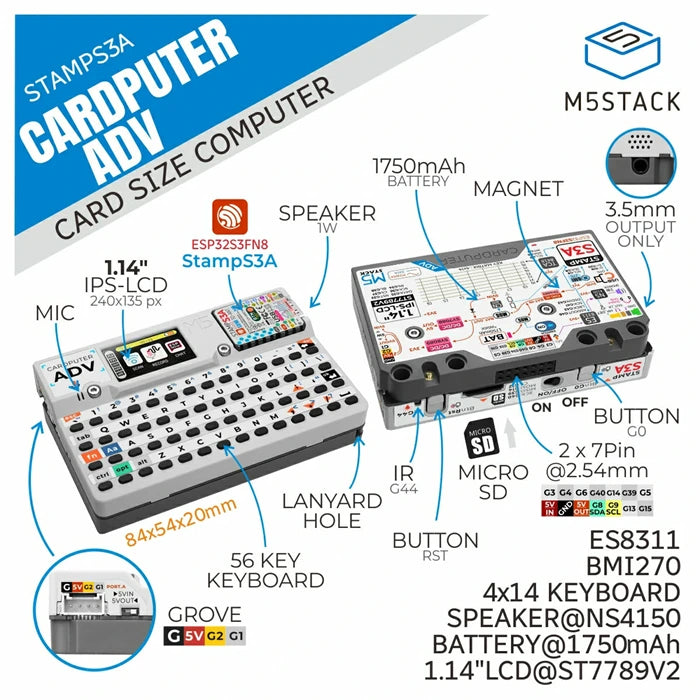

  • Cardputer ADV base device: Provides the handheld computer body, display, keyboard, battery, audio, storage support, and ESP32-S3 processing platform.

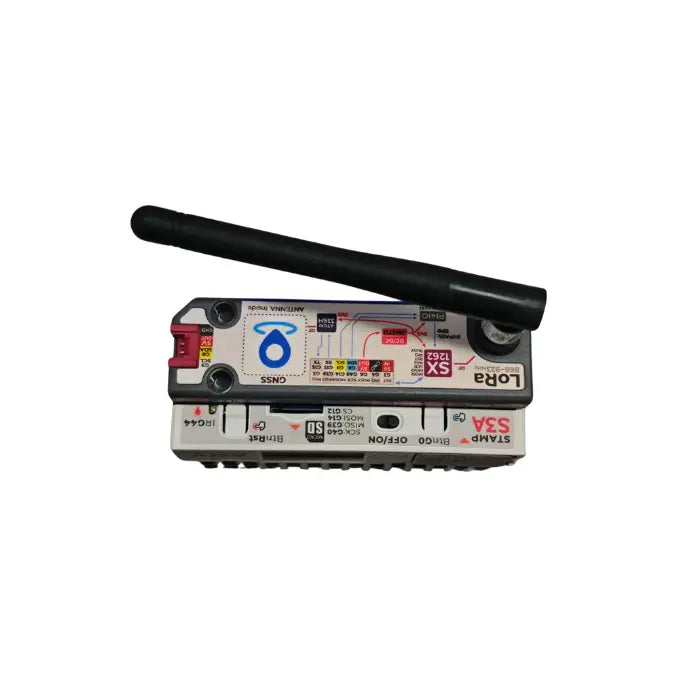

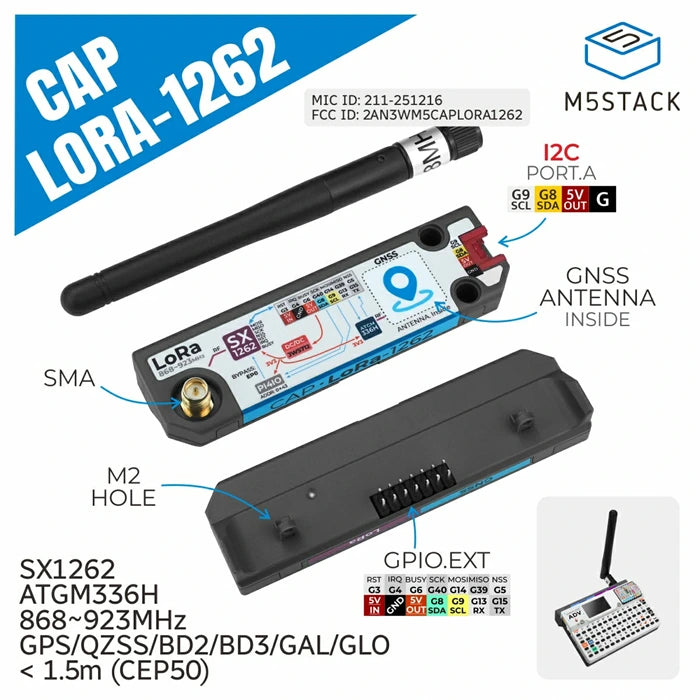

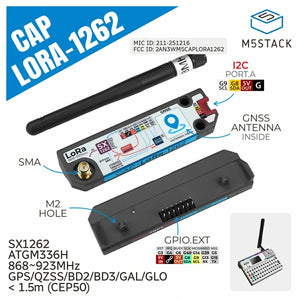

  • CAP LoRa-1262 module: Adds LoRa wireless communication, antenna connection, and GNSS positioning capability to the handheld platform.
  • Ready-to-deploy pairing: Brings both official parts together as the practical M5Stack Meshtastic hardware combination.

Combined Features

  • Portable Meshtastic platform: Built for handheld LoRa messaging and mobile mesh networking.
  • ESP32-S3 core system: Uses the Cardputer ADV as the main controller and interface device.
  • Integrated user interface: 1.14-inch display, 56-key keyboard, battery power, speaker, microphone, and 3.5mm audio support are part of the base unit.
  • LoRa communication expansion: The CAP module adds the SX1262 transceiver with strong long-range wireless capability.
  • GNSS-ready operation: The CAP module adds ATGM336H/AT6668 positioning support for field and mapping scenarios.
  • Preflashed convenience: Firmware is prepared for quicker Meshtastic setup and deployment.

Combined Specifications

Category Kit Specification
Kit Composition Cardputer ADV handheld terminal + CAP LoRa-1262 module
Main Controller ESP32-S3FN8, dual-core LX7, up to 240MHz
Flash 8MB
Display 1.14-inch, 240 x 135
Keyboard 56-key integrated keyboard
Storage Support microSD card
Battery 1750mAh built-in battery
Audio Hardware ES8311 codec, MEMS microphone, NS4150B amplifier, 1W speaker, 3.5mm audio jack
LoRa Transceiver SX1262
LoRa Frequency Range 868 to 923 MHz
LoRa Interface SPI
Antenna SMA rubber antenna, 3dBi
Transmit Power Up to +22dBm
Receive Sensitivity Up to -147dBm
GNSS Module ATGM336H / AT6668
Satellite Support GPS, QZSS, BD2, BD3, Galileo, GLONASS
Estimated Kit Weight 115g combined component weight

Applications

  • Portable Meshtastic communication nodes
  • Off-grid LoRa text messaging
  • Field telemetry and location-aware experiments
  • Outdoor mesh network prototyping
  • Education, maker, and emergency communication demos

Kit Includes

  • 1 x M5Stack Cardputer ADV handheld terminal
  • 1 x M5Stack CAP LoRa-1262 for Cardputer ADV
  • Preflashed Meshtastic firmware on the bundled kit
