M5Stack ATOMS3R Proto Kit without Screen (8MB PSRAM)

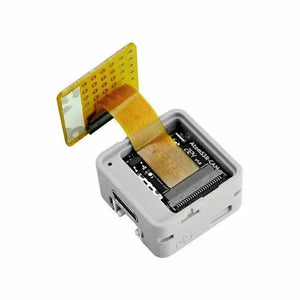

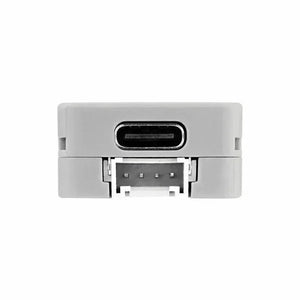

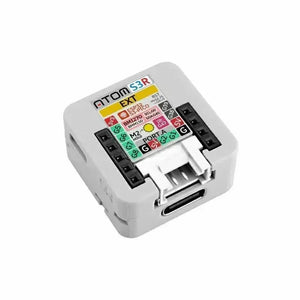

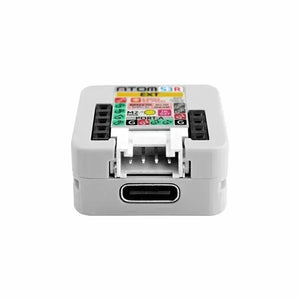

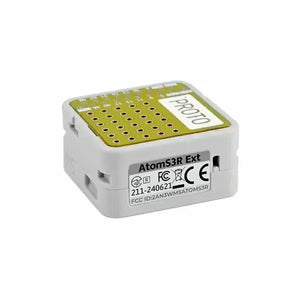

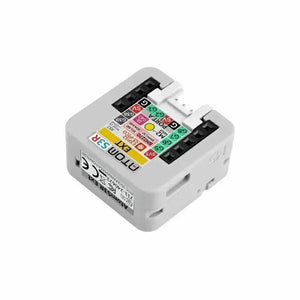

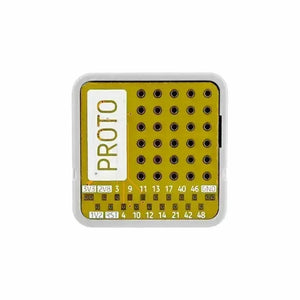

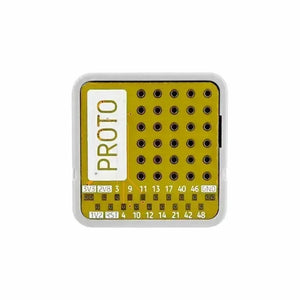

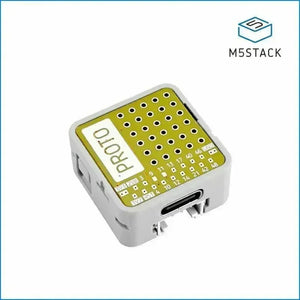

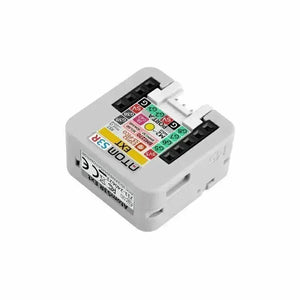

The AtomS3R Ext is a prototype development expansion programmable controller based on the ESP32-S3 main controller. It has been designed specifically for prototype validation and expansion development. The device features a prototype breadboard on the top surface, which allows users to connect and debug multiple input/output ports, thereby making it suitable for various peripheral module expansions and function validation. The device incorporates the ESP32-S3-PICO-1-N8R8 main controller, facilitates WiFi functionality, and comprises 8MB of onboard flash memory and 8MB of PSRAM, in addition to a power circuit that converts 5V to 3.3V/2.8V/1.2V. Additionally, the device is equipped with a three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The controller is equipped with a Type-C interface for power supply and firmware downloads, as well as an HY2.0-4P expansion port, six GPIO, and power pins, which facilitate the expansion of functionality. In comparison to preceding ATOM series host products, the AtomS3R Ext boasts an advanced 3D antenna, which offers enhanced signal performance and stability. With dimensions of only 24x24x12mm, the device is particularly well-suited to prototype development and validation applications in embedded smart devices.

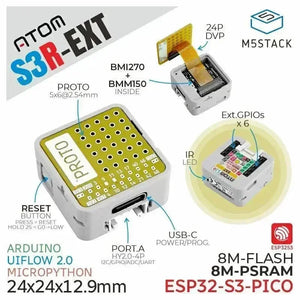

Features
- Integrated ESP32-S3-PICO-1-N8R8 main controller
- Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
- 8MB Flash and 8MB PSRAM
- Supports infrared emission control
- Expandable pins and interfaces
- Breadboard
- Development platforms: Arduino, UIFlow, MicroPython
Includes
- 1x AtomS3R Ext
Applications
- Motion detection and directional awareness
- Wearable devices
- Smart device control
- IoT applications
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG |
| PSRAM | 8M PSRAM |
| FLASH | 8M FLASH |
| Six-axis Motion Sensor (BMI270) | Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity) I2C address: 0x68 |
| Three-axis Geomagnetic Sensor (BMM150) | Accuracy: 0.3 μT Mounted on BMI270, obtaining magnetometer data via BMI270 |
| Infrared IR | IR emission distance at ∠180°: 12.46m IR emission distance at ∠90°: 1.45m IR emission distance at ∠45°: 3.88m |
| Sleep Current | GPIO-5V power supply: DC5V@11.63 uA Grove-5V power supply: DC5V@10.75 uA USB-5V power supply: DC5V@92.50 uA (including PD resistor loss) |
| Universal Expansion Board Size | 5*6@2.54mm |
| Reserved GPIO | G5/G6/G7/G8/G38/G39 |
| Breadboard Reserved GPIO | G3/G4/G9/G10/G11/G12/G13/G14/G17/G21/G40/G42/G46/G48 |
| Operating Temperature | 0°C ~ 40°C |
| Product Dimensions | 24*24*12.9mm |
| Package Dimensions | 85*65.5*13mm |
| Product Weight | 34.5g |
| Package Weight | 68.5g |
