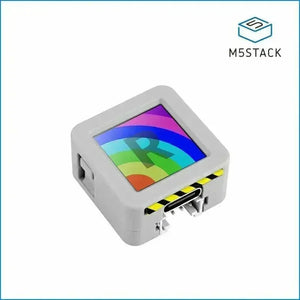

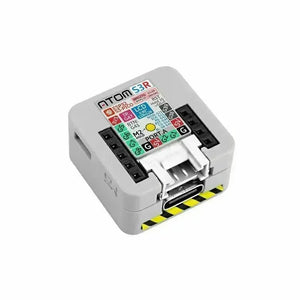

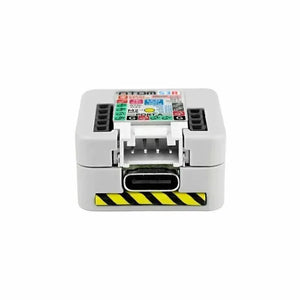

M5Stack ATOMS3R Development Kit with 0.85-inch Screen

M5Stack ATOMS3R Development Kit with 0.85-inch Screen

19,85 €

The M5Stack AtomS3R is the most integrated programmable controller on the market, based on the ESP32-S3 main controller. It features the ESP32-S3-PICO-1-N8R8 main controller with built-in WiFi, 8MB onboard FLASH, and 8MB PSRAM. M5Stack AtomS3R comes with a 0.85-inch color IPS screen and a programmable button beneath it. AtomS3R includes a 5V to 3.3V power circuit, a built-in three-axis BMM150 geomagnetic sensor, and a six-axis BMI270 attitude sensor. AtomS3R also has a Type-C interface for power supply and firmware downloads, along with a HY2.0-4P expansion port. Six GPIO and power pins are reserved at the bottom for easy expansion. The 3D antenna of the M5Stack AtomS3R is an improvement on previous products, offering better performance and greater stability. M5Stack AtomS3R measures only 24x24x12.9mm, making it ideal for a wide range of embedded smart device applications.



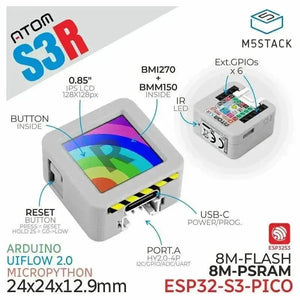

M5Stack ATOMS3R Features

  • Integrated ESP32-S3-PICO-1-N8R8 main controller
  • Nine-axis sensor system (six-axis BMI270 + three-axis BMM150 geomagnetic sensor)
  • 8MB Flash and 8MB PSRAM
  • Supports infrared control functionality
  • Programmable button
  • 0.85-inch LCD screen
  • Expandable pins and interfaces
  • Development platforms: Arduino, UIFlow, Micropython



 Articles about AtomS3R



Schematics

M5Stack ATOMS3R



Includes

  • 1x AtomS3R



Applications

  • Motion detection and direction sensing
  • Wearable devices
  • Smart device control
  • IoT applications



Specifications

Specification Details
SoC ESP32-S3-PICO-1-N8R8 @Dual-core Xtensa LX7 processor, up to 240MHz
PSRAM 8MB PSRAM
FLASH 8MB FLASH
TFT Driver GC9107
Color IPS Resolution 128 x 128
Six-axis sensor (BMI270) Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity)
I2C address: 0x68
Three-axis geomagnetic sensor (BMM150) Accuracy: 0.3 μT
Mounted on BMI270, magnetometer data accessed via BMI270
IR Infrared transmission range: 12.46m @ ∠180°, 1.45m @ ∠90°, 3.88m @ ∠45°
Sleep current GPIO-5V power: DC5V @ 11.63 μA
Grove-5V power: DC5V @ 10.75 μA
USB-5V power: DC5V @ 92.50 μA
Operating current IMU operating current: DC5V @ 99.25 mA
IR operating current: DC5V @ 100.40 mA
RGB operating current: DC5V @ 106.39 mA
With LCD: DC5V @ 56.69 mA
Bottom reserved GPIO pins G5/G6/G7/G8/G38/G39
Operating temperature 0°C ~ 40°C
Product dimensions 24*24*12.9mm
Packaging dimensions 85*65.5*13mm
Product weight 6.7g
Packaging weight 13.4g



Operating Instructions

BMM150 Magnetic Interference
Products containing magnets may interfere with the BMM150 magnetic sensor, resulting in abnormal readings. When using M5 controllers with built-in magnets, remove the magnets and keep the BMM150 away from strong magnetic fields.

Schematics



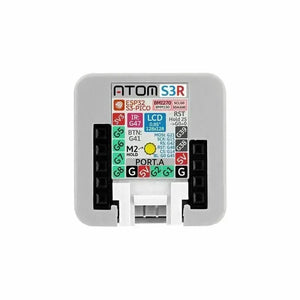

PinMap



Datasheets



AtomS3 Comparison

Spec AtomS3R AtomS3
SoC ESP32-S3-PICO-1-N8R8 ESP32-S3FN8
Memory 8 MB Flash + 8 MB PSRAM 8 MB Flash
Sensor BMI270 + BMM150 MPU6886
Antenna Enhanced 3D Antenna Standard 3D Antenna
