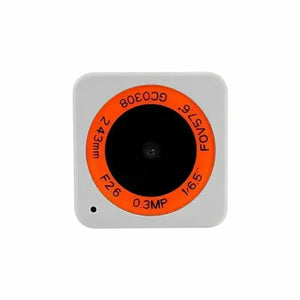

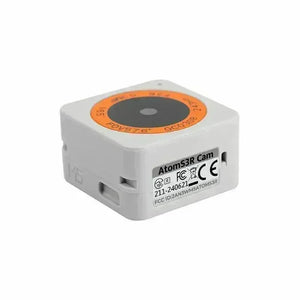

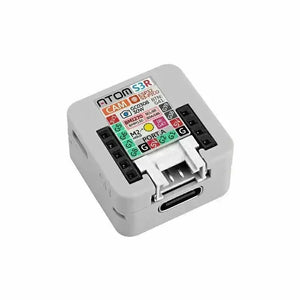

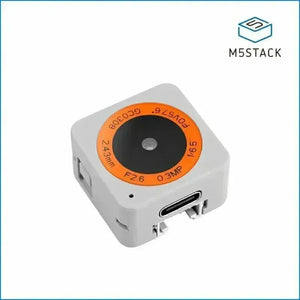

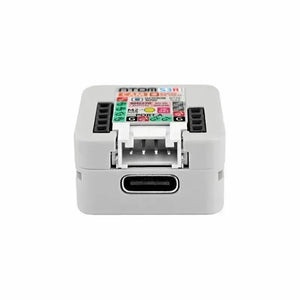

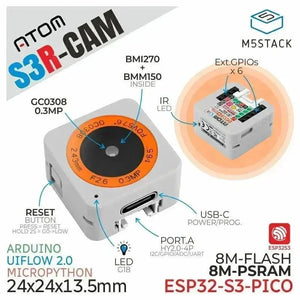

The AtomS3R Cam is the ultimate mini programmable controller, integrated with a camera and featuring the ESP32-S3-PICO-1-N8R8 main controller with built-in WiFi, 8MB onboard FLASH, and 8MB PSRAM. It includes a power management circuit that converts 5V to 3.3V, along with a built-in three-axis BMM150 geomagnetic sensor and a six-axis BMI270 attitude sensor. Furthermore, the product boasts a 0.3MP GC0308 camera, enabling high-quality image capture and infrared transmission control. The camera is protected by a glass cover, preventing dust and improving image quality. The 3D antenna of the AtomS3R Cam is better than ever, with enhanced performance and greater stability compared to previous products. This product is pre-installed with UVC (USB Video Class) firmware, allowing it to function as a driver-free USB camera. You can use the camera directly via the USB interface—no drivers required. The product also includes a Type-C interface for power supply and firmware downloads, as well as a HY2.0-4P expansion port. Six GPIO and power pins are reserved at the bottom for easy expansion. Its compact size of 24x24x13.5mm makes it ideal for embedded scenarios such as IoT device monitoring and educational development tools.
Specification | Details |
---|---|
SoC | ESP32-S3-PICO-1-N8R8 @Dual-core Xtensa LX7 processor, up to 240MHz |
PSRAM | 8MB PSRAM |
FLASH | 8MB FLASH |
Six-axis sensor (BMI270) | Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity) I2C address: 0x68 |
Three-axis geomagnetic sensor (BMM150) | Accuracy: 0.3 μT Mounted on BMI270, magnetometer data accessed via BMI270 |
Camera |
GC0308 @0.3 MP(megapixels) Max frame rate: 30 fps |
Camera panel material | Glass |
IR | Infrared transmission range: 12.46m @ ∠180°, 1.45m @ ∠90°, 3.88m @ ∠45° |
Sleep current | GPIO-5V power: DC5V @ 11.63 μA Grove-5V power: DC5V @ 10.75 μA USB-5V power: DC5V @ 92.50 μA |
Operating current | IMU operating current: DC5V @ 99.25 mA IR operating current: DC5V @ 100.40 mA RGB operating current: DC5V @ 106.39 mA Camera: DC5V @ 21.02 mA |
Bottom reserved GPIO pins | G5/G6/G7/G8/G38/G39 |
Operating temperature | 0°C ~ 40°C |
Product dimensions | 24x24x13.5mm |
Packaging dimensions | 85x65.5x13.6mm |
Product weight | 7.3g |
Packaging weight | 13.5g |
