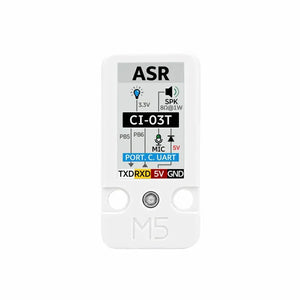

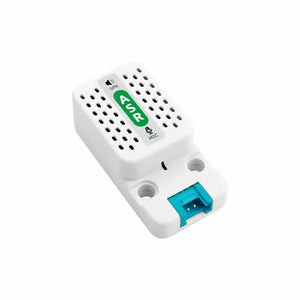

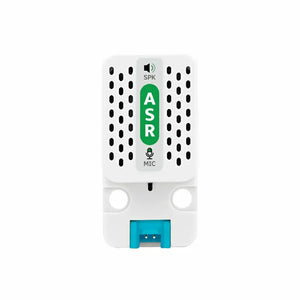

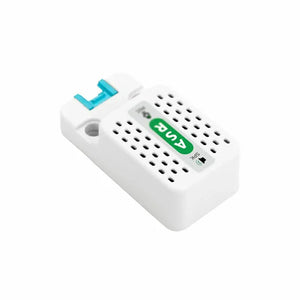

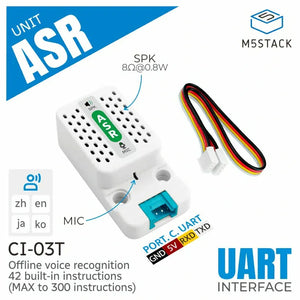

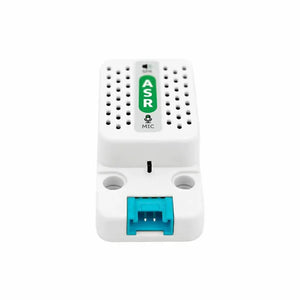

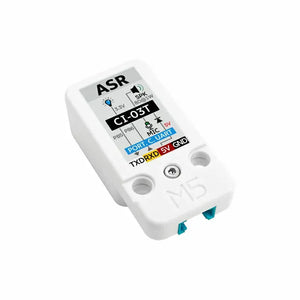

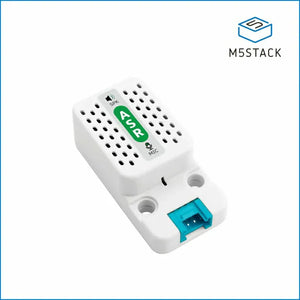

Unit ASR is an AI offline voice recognition unit, built with the CI-03T AI intelligent offline voice module. The unit offers powerful capabilities such as speech recognition, voiceprint recognition, voice enhancement, and voice detection. It supports AEC (Acoustic Echo Cancellation), effectively removing echoes and noise interference, thereby enhancing voice recognition accuracy. It also supports mid-conversation voice interruption, allowing flexible interruption during voice recognition and quick response to new commands. The product comes pre-configured with 42 English wake-up words and feedback command words. It uses UART serial communication for data transmission and supports awakening the device via UART or voice keywords. The unit also supports user-customizable multi-language wake-up recognition words and can recognize up to 300 command words. Equipped with a microphone for clear audio capture and a built-in speaker for high-quality audio feedback, this product is widely used in AI assistants, smart homes, security monitoring, automotive systems, robotics, smart hardware, and healthcare. It is an ideal choice for implementing intelligent voice interaction.
Features
- CI-03T AI intelligent offline voice module
- Noise reduction processing
- 42 pre-installed commands
- Supports up to 300 command words
- UART serial communication
- Supports custom wake-up word
- Microphone and speaker
- Development platforms:
Includes
- 1x Unit ASR
- 1x HY2.0-4P Grove cable (20cm)
Applications
- AI Assistant
- Smart Home
- Security Monitoring
- Automotive Systems
- Robotics and Smart Hardware
- Healthcare
Specifications
| Specification | Parameter |
|---|---|
| AI Module | CI-03T AI Intelligent Offline Voice Module |
| Command Words | Supports up to 300 command words,Factory default 42 built-in commands |
| Wake-up Method | UART serial communication or voice keyword wake-up |
| Microphone | Analog microphone |
| Speaker | 8Ω@1W speaker (used for output device wake-up feedback) |
| Communication | UART serial communication, default baud rate: 115200@8N1 |
| Noise Reduction | AEC (Acoustic Echo Cancellation) |
| Operating Temperature | 0-40°C |
| Product Size | 48.0 x 24.0 x 16.0mm |
| Product Weight | 10.5g |
| Packaging Size | 136.0 × 92.0mm × 13.0mm |
| Packaging Weight | 15.8g |
Softwares
Quick Start
Arduino
Protocol
Others
Schematics
