Due to the advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.
Features
No backlight keeps displaying the last content for a long time even when powered down at ultra-low power consumption, basically, power is only required for refreshing and comes with development resources and a manual (examples for Arduino-esp32)
Technology Support [Github]
If you need technical support please check the link to find more details.
Specifications
|
Operating voltage |
3.3V |
|
Interface |
3-wire SPI, 4-wire SPI |
|
Display color |
black, white |
|
Grey level |
2 |
|
Full refresh time |
8s |
|
Refresh power |
26.4mW(typ.) |
|
Driver chip |
SSD1680 |
|
Display Driver |
DEPG0213BN/ GDEM0213B74 |
|
resolution |
212x104 |
|
Wide operating temperature range |
-20℃ ~ 60℃ |
|
Power consumption |
ultra-low power consumption |
|
Viewing angle |
180 degrees |
|
support |
Use in the sun; Ultra-wide temperature -20 degrees use |

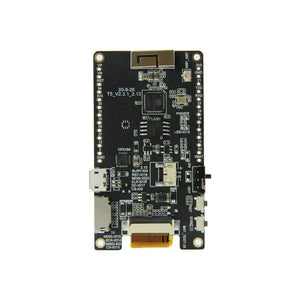

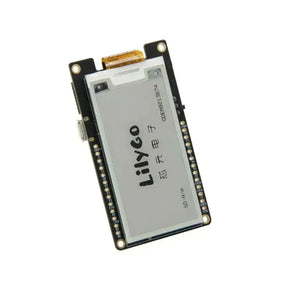

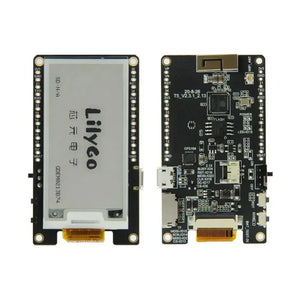

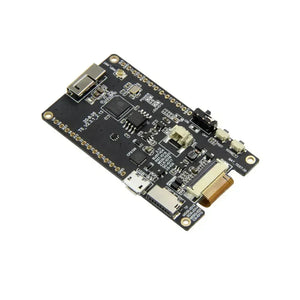

Product Display
Size

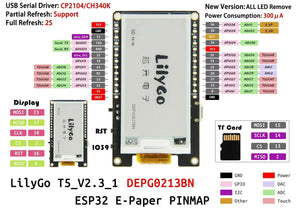

Pin Diagram
Include
- 1 X T5 V2.3.1_2.13
