LILYGO T-SIM7600E/G/SA-H

LILYGO T-SIM7600E/G/SA-H

T-SIM7600G-H R2 / T-SIM7600E-H Introduce

  • T-SIM7600 is a wireless networking module with WIFI/Bluetooth/4G LTE CAT4 GPS.
  • T-SIM7600X-H is ten times faster than T-SIM7600X's Download link (DL) and Upload Link (UL); LTE (Mbps) is optimized from 10(DL)/5(UL) to 150(DL)/ 50(UL)

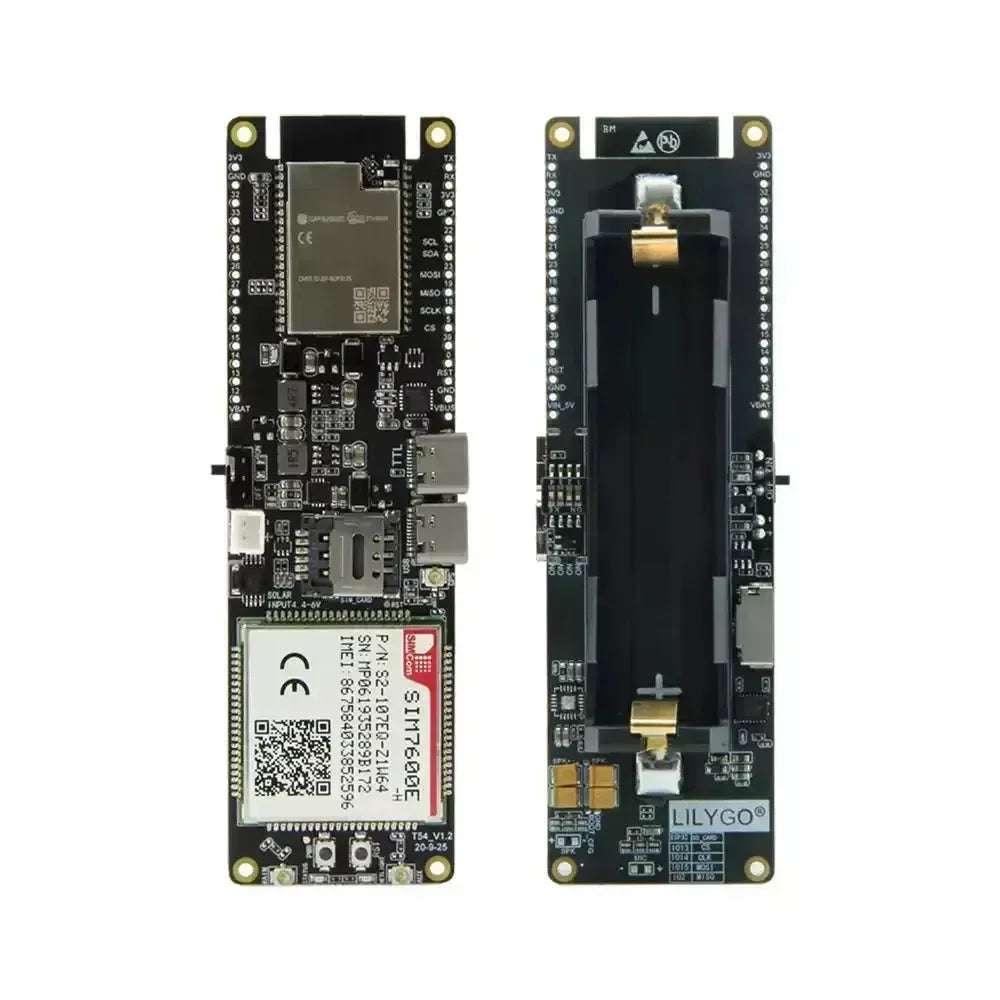

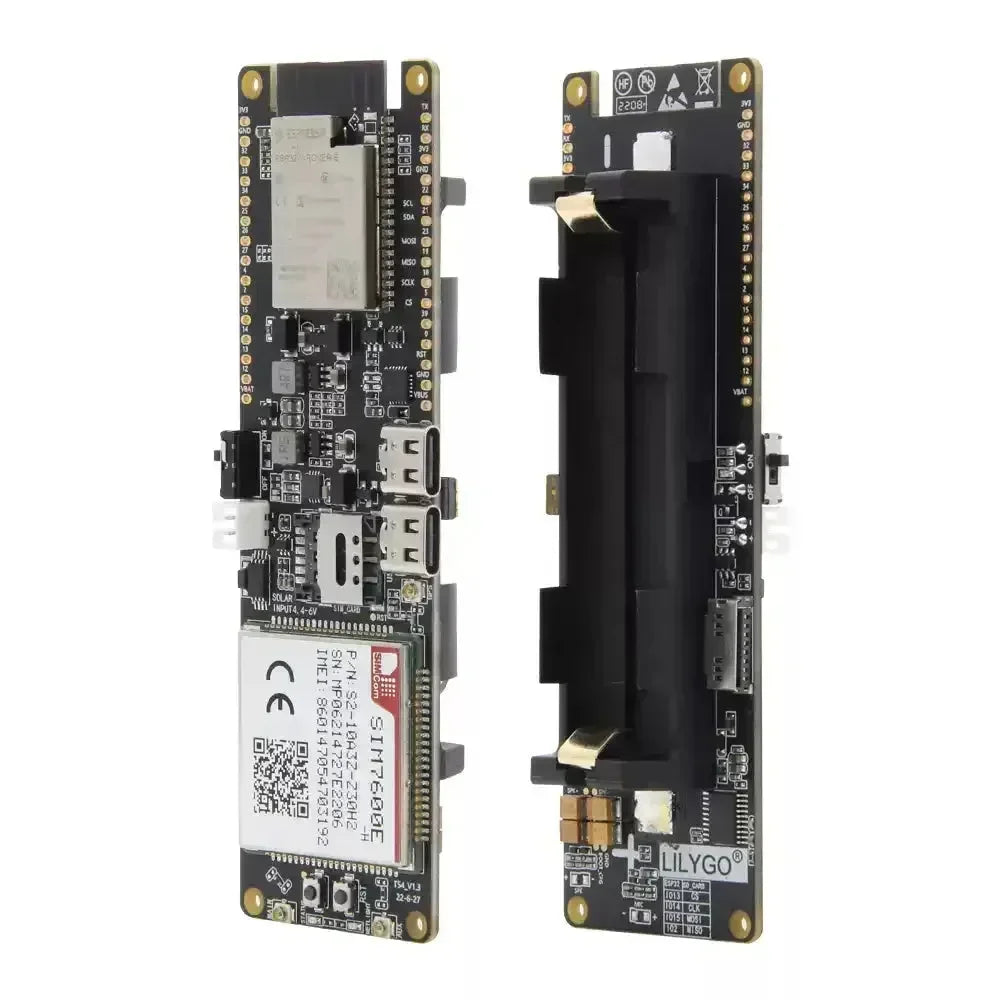

  • On this basis, we integrate a 18650 battery holder and add a solar charging interface.
  • In order to facilitate the use of various application scenarios, two T-type-c interfaces are reserved on the development board.
  1. one is used to upload the program to the main control chip
  2. And the other is the SIM7600E-H USB dongle industrial network card interface. It can be connected to a computer via a USB cable and configured as a wireless network card.



 LTE(Mbps) 150(DL)/50(UL) 10(DL)/5(UL)
  1.
  1. The battery's positive and negative poles to avoid connecting to the wrong protection, overcharge, and over-discharge protection.
  2. GPS power control reduces power consumption, the lowest reaches 300uA when sleeping.
  3. Replacement of ordinary charging IC with solar charging IC.





Specifications T-SIM7600G-H R2 T-SIM7600E-H
MCU ESP32 ESP32
LTE&GSM SIM7600G-H R2 SIM7600E-H
SIM Card
TF Card
Clock Speed 240MHz 240MHz
Flash 4MB 4MB
PSRAM 8MB 8MB
Wireless Connectivity Wi-Fi: 802.11 b/g/n Wi-Fi: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR and BLE Bluetooth: v4.2 BR/EDR and BLE
Peripheral Interfaces I2C, SPI, UART, SDIO, I2S, CAN I2C, SPI, UART, SDIO, I2S, CAN
Form Factor LCC+LGA, 119PIN LCC, 87PIN
Region Global Europe (Middle East, Africa, South Korea, Thailand)
Dimensions 30.0 x 30.0 x 2.9 mm 30.0 x 30.0 x 2.9 mm

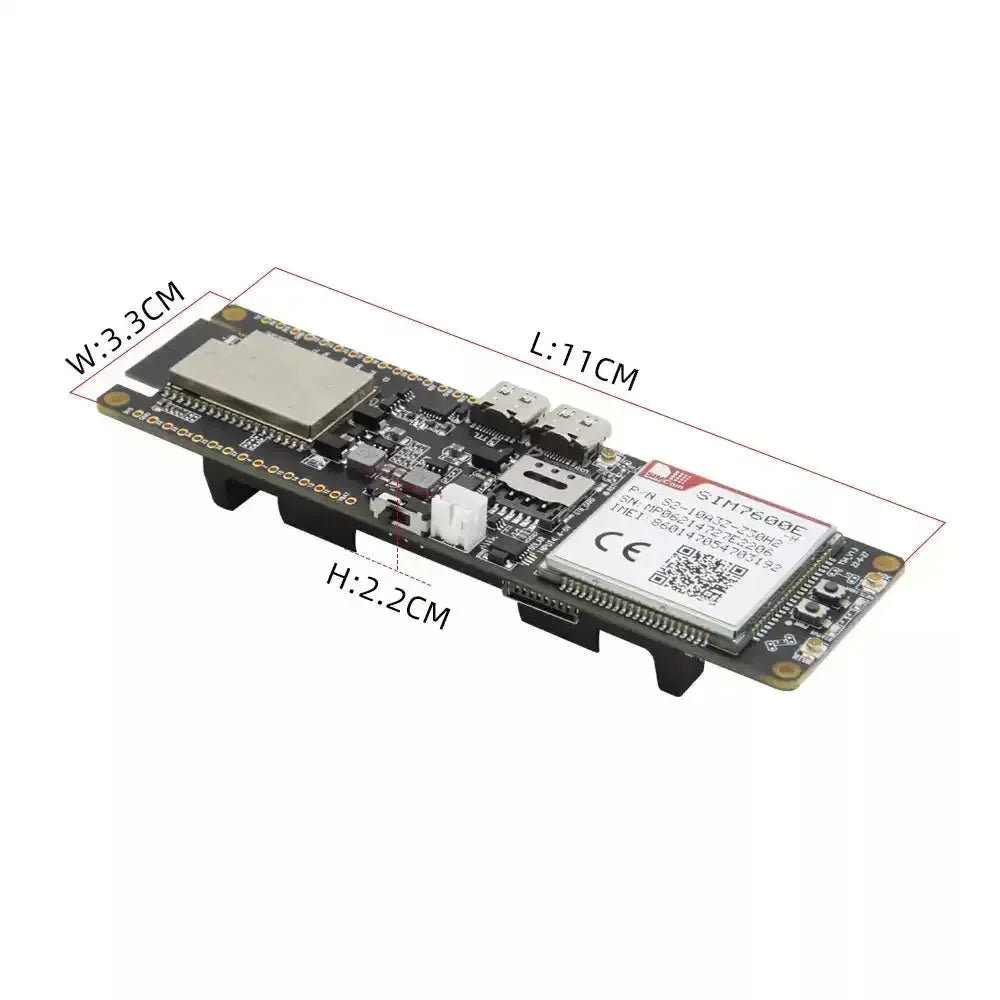

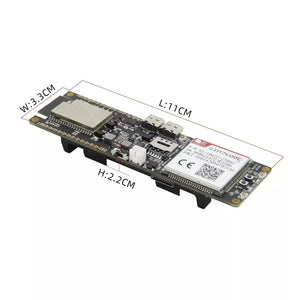

1. Size

2. Pin Diagram

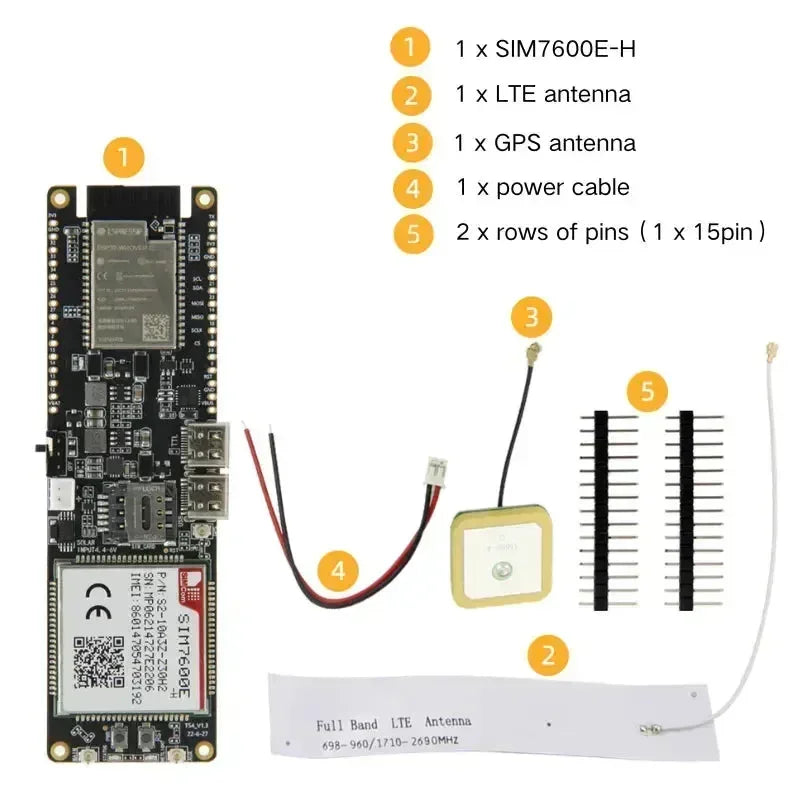

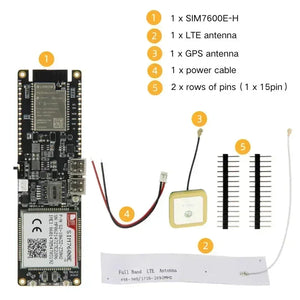

3. Shipping List

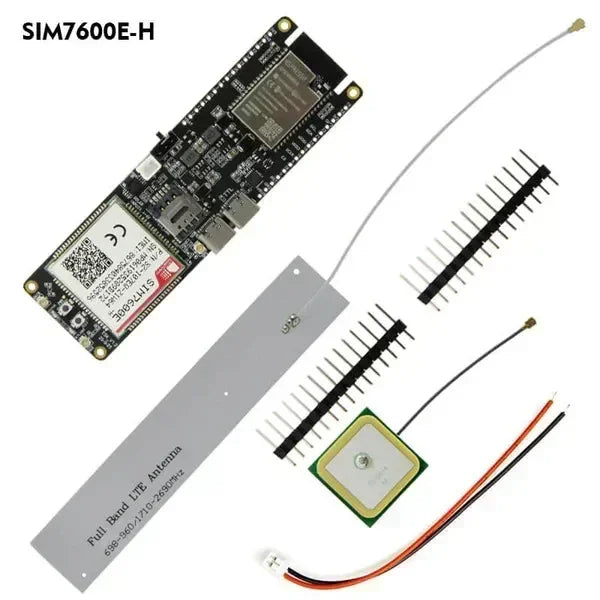

  • 1 X T-SIM7600E-H CH9102
  • 1 X SIM antenna
  • 1 X GPS antenna
  • 1 X Power cable
  • 2 X Pin

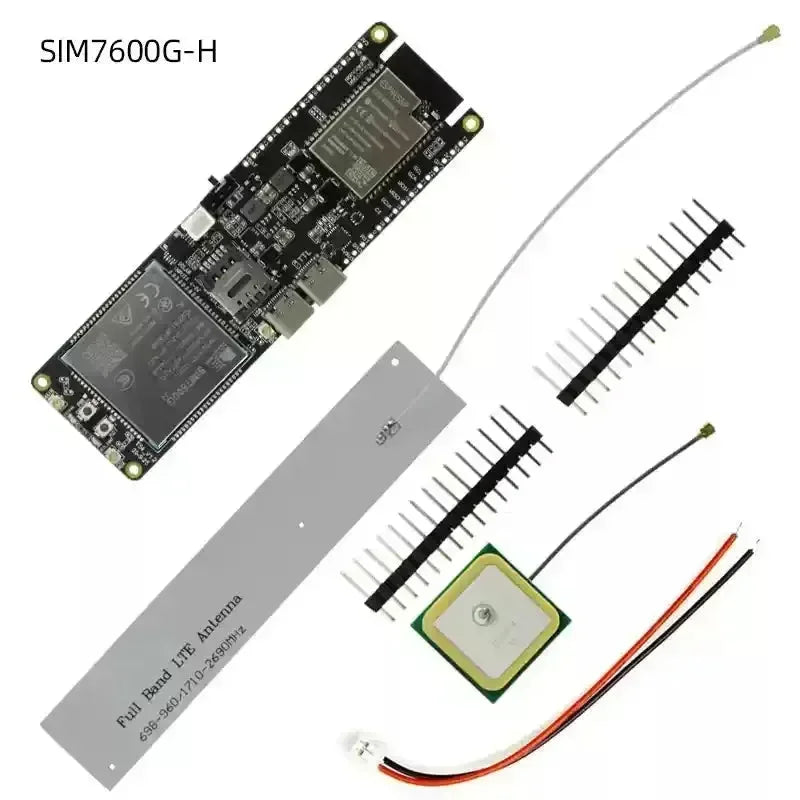

  • 1 X T-SIM7600G-H 2R CH9102
  • 1 X SIM antenna
  • 1 X GPS antenna
  • 1 X Power cable
  • 2 X Pin
