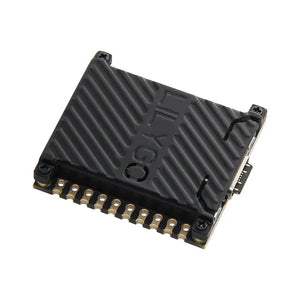

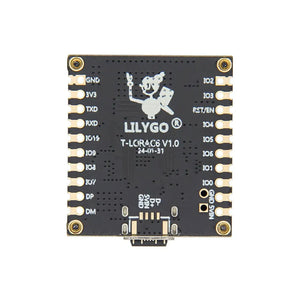

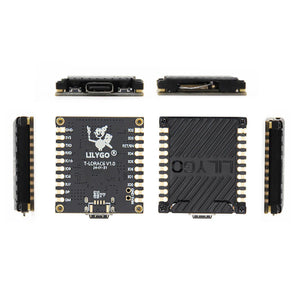

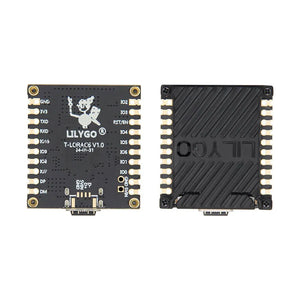

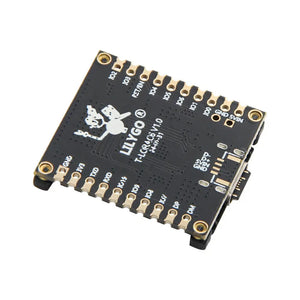

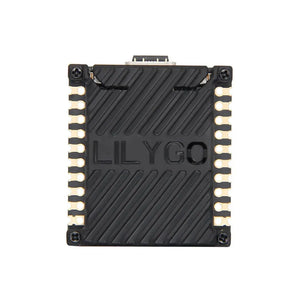

LILYGO T-Lora C6
The LILYGO T-Lora C6 868MHz and 915MHz is a compact and powerful LoRa development board based on the ESP32-C6-MINI-1 chip. It combines Wi-Fi 6, Bluetooth 5 LE, 802.15.4 (Thread/Zigbee), and LoRa SX1262, offering a comprehensive wireless solution in one compact module. With castellated edges and a compact footprint, it is ideal for IoT, sensor networks, mesh communication, and embedded LoRaWAN development.
Key Features
-
Based on ESP32-C6-MINI-1 with support for Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4
-
Built-in SX1262 LoRa transceiver for long-range wireless communication (868/915 MHz)
-
Supports LoRaWAN protocol for low-power wide-area networking
-
Compatible with Arduino IDE, VS Code, ESP-IDF
-
Dual function buttons: BOOT and RESET
-
Custom function LED
-
Compact castellated form factor (33mm x 29mm x 6mm)
-
Onboard USB Type-C for power
-
Supports C/C++, MicroPython, Lua
-
Includes 3D printed shell to fix FPC antenna (removable)
Pin Diagram

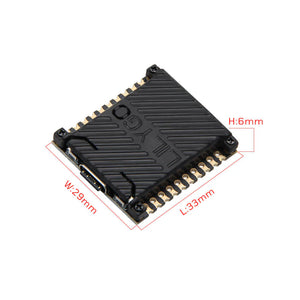

Dimensions
Applications
-
LoRaWAN-enabled IoT devices
-
Smart agriculture and remote sensing
-
Mesh networking for home automation
-
Industrial monitoring systems
-
Low-power wireless sensor nodes
Specifications
Main Module
| Parameter | Description |
|---|---|
| MCU | ESP32-C6-MINI-1 |
| Flash | 4MB |
| Wireless Protocols | 2.4GHz Wi-Fi 6, Bluetooth 5 LE, IEEE 802.15.4 |
| Supported Languages | C/C++, MicroPython, Lua |
| Programming Platform | Arduino IDE, VS Code, ESP-IDF |
| Onboard Functions | BOOT + RESET button, Custom Function LED |
LoRa Wireless
| Parameter | Description |
|---|---|
| LoRa Transceiver | SX1262 |
| Frequency Band | 868MHz / 915MHz |

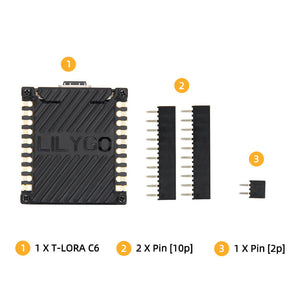

Includes
-
1 × T-Lora C6 Module
-
2 × 10-pin Header
- 1 × 2-pin Header
