Highly Efficient Zero Standby Current Driver
Driver Chip: TMC6300,3-Phase motors up to 2A (peak)
Hall-Based Angle Position Encoder Sensor
Main Chip: MT6701, 0~360° Full Angle Sensing
Specifications
| MCU | ESP32-C6-MINI-1U |
| Flash | 4MB |
| Wireless protocol | 2.4g Wi-Fi 6, Bluetooth 5 (LE), 802.15.4 |
| Onboard function | 4 LED(I020, 21, 22, 23) 1xBuzzer (IO14) |
Sample Code

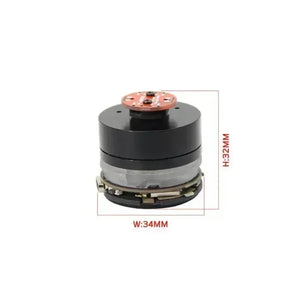

Size

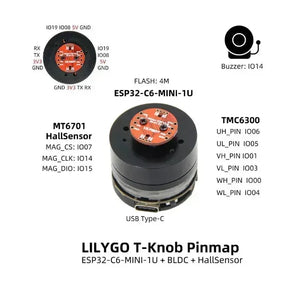

Pin Diagram
