LILYGO T-Encoder Shield CH552 Macro Keys RGB LED

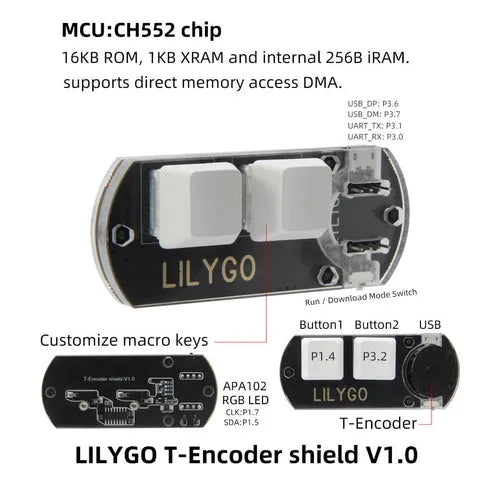

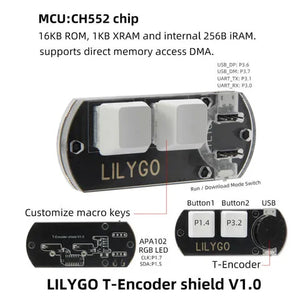

The LILYGO T-Encoder Shield V1.0 is an expansion module designed for the LILYGO T-Encoder. Powered by the CH552 microcontroller, this board features two customizable macro keys and a vibrant APA102 RGB LED for interactive lighting feedback. It is ideal for applications such as macro control, custom keyboard shortcuts, and user interface enhancements in embedded projects.
Key Features
-
CH552 MCU with 16KB ROM, 1KB XRAM, and 256B iRAM
-
Two programmable macro keys for customized functions
-
Integrated APA102 RGB full-color LED for dynamic lighting
-
Run/Download switch for firmware uploading
-
USB interface and pin breakout for connectivity
-
Compact size, easily mountable on the T-Encoder base
Technical Specifications
| Component | Description |
|---|---|
| Microcontroller | CH552 |
| Memory | 16KB ROM, 1KB XRAM, 256B iRAM |
| Keys | 2 x Programmable macro keys |
| LED | APA102 RGB (full-color) |
| Interface | USB, GPIO, UART |
| Pinouts | P3.6, P3.7 (USB), P3.1 (UART), P3.0 |

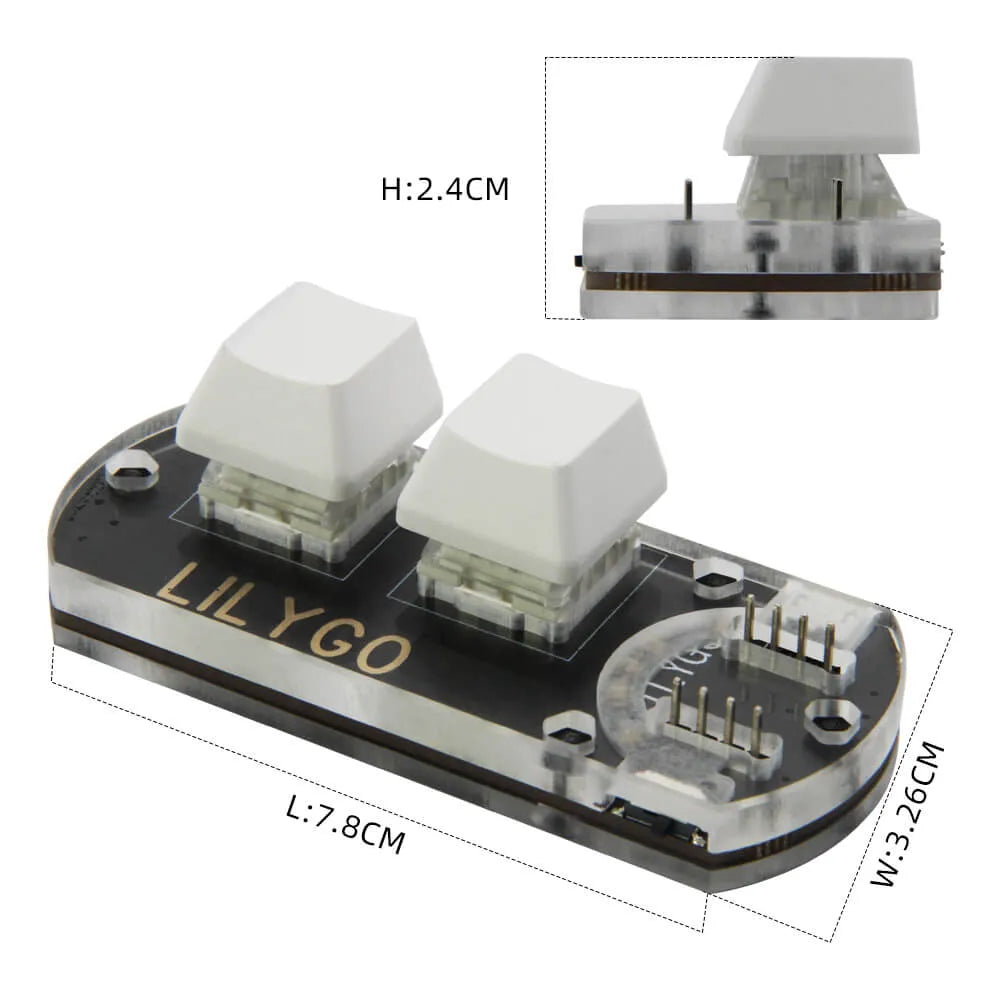

| Size | 7.8 cm (L) × 3.26 cm (W) × 2.4 cm (H) |
Application Scenarios
-
Macro key control panels
-
Custom shortcut interfaces
-
Interactive lighting modules
-
USB-based input extensions
-
Embedded user interaction systems
