LILYGO T‑Embed CC1101 Plus ESP32‑S3 LoRa NFC/RFID Wireless Lab Board

EU
Sale price €69,95
incl. VAT
SKU: LILYGO-K268
Type: Transparent[K268]
Add to Wishlist Add to Compare
Visa
PayPal
Mastercard
American Express
Shop Pay
LILYGO T‑Embed CC1101 Plus ESP32‑S3 LoRa NFC/RFID Wireless Lab Board-1

LILYGO T‑Embed CC1101 Plus ESP32‑S3 LoRa NFC/RFID Wireless Lab Board

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

⚡ LILYGO® T‑Embed CC1101 Plus ⌚ is a compact, multi‑protocol Wireless Lab Board designed for developers 👨💻, makers 🛠️, and security researchers 🔍 who explore advanced RF communication 📡. Compared to the standard T‑Embed CC1101, the CC1101 Plus version integrates an additional nRF24L01 module, giving you both a CC1101 for robust sub‑GHz communication 📶 and an nRF24L01 for interacting with a wide range of 2.4 GHz devices 📲 — all powered by the high‑performance ESP32‑S3 in a single, portable form factor.

💡 This combination makes the LILYGO T‑Embed CC1101 Plus ideal for signal analysis 🔬, protocol testing 🧪, IoT prototyping 🌐, and wireless device interaction 🔄. Whether you’re building sub‑GHz IoT networks 🌱, experimenting with multi‑protocol RF systems 📡, or conducting advanced wireless research 🛰️, this Wireless Lab Board delivers the flexibility and power you need.



📋 Specifications – LILYGO T‑Embed CC1101 Plus

MCU ESP32-S3 Dual-core LX7 microprocessor ⚙️
Flash 16MB 💾
Programming Platform Arduino-IDE, ESP-IDF 💻
PSRAM 8MB 🧠
Onboard Functions Reset + Boot Button 🔘, IR Transmit & Receive 📡
Battery Voltage Detection IO04 🔋
Wireless Wi-Fi 802.11 b/g/n 📶, BLE 5
Support Worldwide 2.4GHz ISM band operation 🌍



🖥️ 1.9 inch ST7789V IPS Color TFT LCD

Interface SPI 🔌
Drive Chip ST7789 ⚙️
Resolution 170(H)RGB x 320(V) 📏

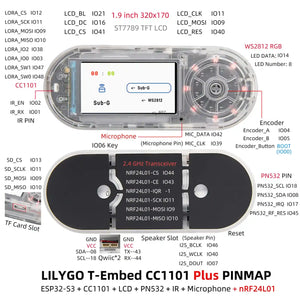

📷 LILYGO T-Embed CC1101 Plus Wireless Lab Board ESP32-S3 LoRa Sub-GHz



🛠 Tech Support – LILYGO T‑Embed CC1101 Plus

ℹ️ Product Information
Explore our GitHub repository 📚 for sample code, wiring diagrams, and detailed documentation for the LILYGO T‑Embed CC1101 Plus.

💻 Technical Support
Join our GitHub community 🤝, post your questions, and get direct help from our engineers on your CC1101 Plus or T‑Embed projects.



More information

Schematic : T-Embed-CC1101

CC1101 Schematic : CC1101

CC1101 Pins : CC1101 Pins

3D Files : T-Embed CC1101.stp



➡ Some interesting projects that support T-Embed-CC1101:

name code web
Bruce github web
Launcher github web
CapibaraZero github web
ESP32 Bus Pirate github ---



Recommended Articles about LILYGO T-Embed CC1101

What is LILYGO T-Embed

What is the Difference between LILYGO T-Embed and T-Embed CC1101

Comparison between LilyGo T-Embed CC1101 and Flipper Zero

Difference between LILYGO t-embed c1101 and flipper zero

LILYGO T-Embed CC1101 Module Introduction and Usage Guide



📷 LILYGO T-Embed CC1101 Plus Multi-Protocol Wireless Lab Board

alt text



📡Applications

  • Sub-GHz IoT Network Development Utilize the CC1101 transceiver to build low-power, long-range sensor networks for smart agriculture, environmental monitoring, or industrial telemetry.

  • 2.4GHz Wireless Device Integration The onboard nRF24L01 module enables communication with a wide range of consumer and embedded devices, including remote controls, wearables, and legacy RF modules.

  • RF Protocol Analysis & Security Research Ideal for signal sniffing, reverse engineering, and testing custom RF protocols in both sub-GHz and 2.4GHz bands.

  • Multi-Protocol Wireless Prototyping Combine LoRa, BLE, Wi-Fi, CC1101, and nRF24L01 to experiment with hybrid communication models and mesh networks.

  • NFC/RFID Interaction Projects Explore short-range wireless applications such as access control, asset tracking, or contactless authentication using the onboard NFC/RFID capabilities.

  • Wireless Lab Education & Experimentation A compact, all-in-one platform for students and engineers to learn RF fundamentals, test modulation schemes, and prototype wireless systems.

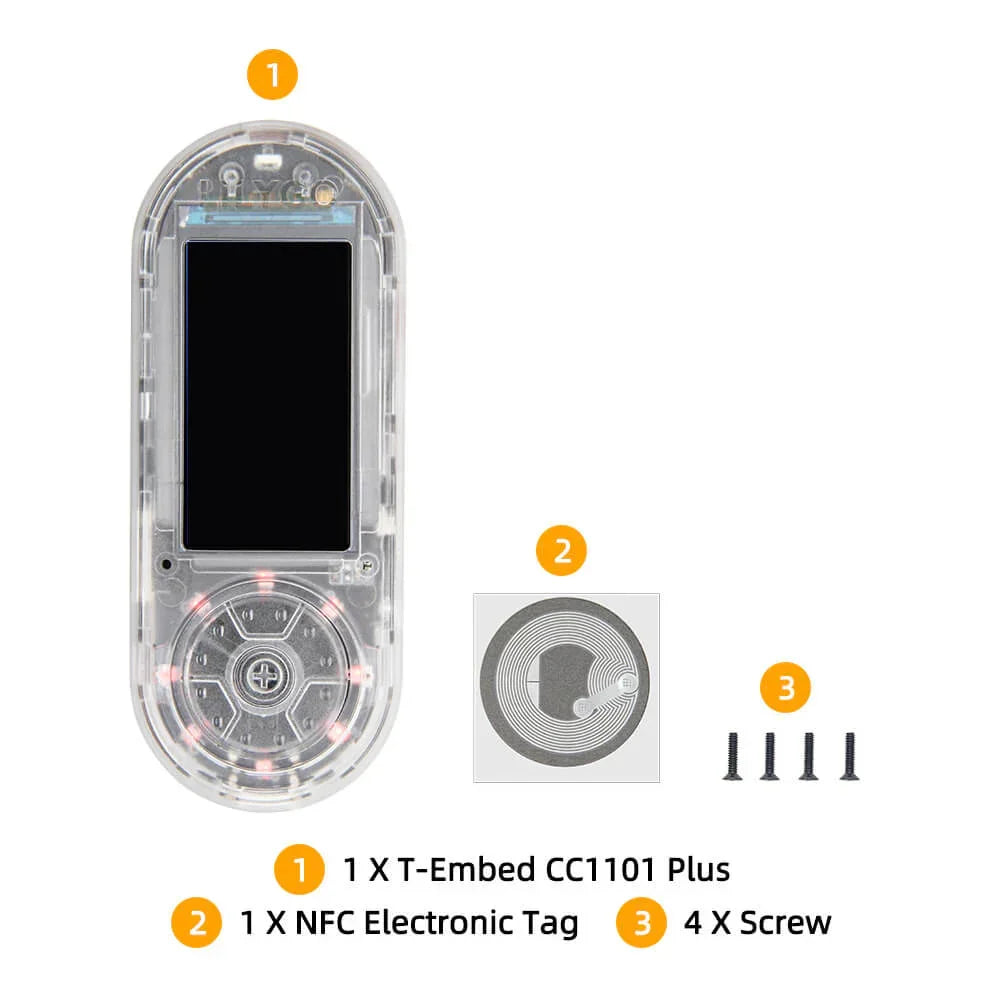

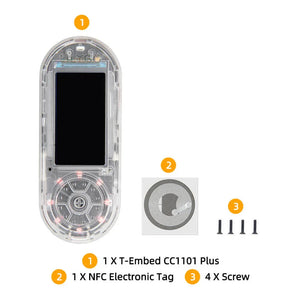

📦 What's In The Box – LILYGO T‑Embed CC1101 Plus

⚠️ Note: We do not recommend replacing the case 🛡️, as it may damage the unit and affect the IR function.

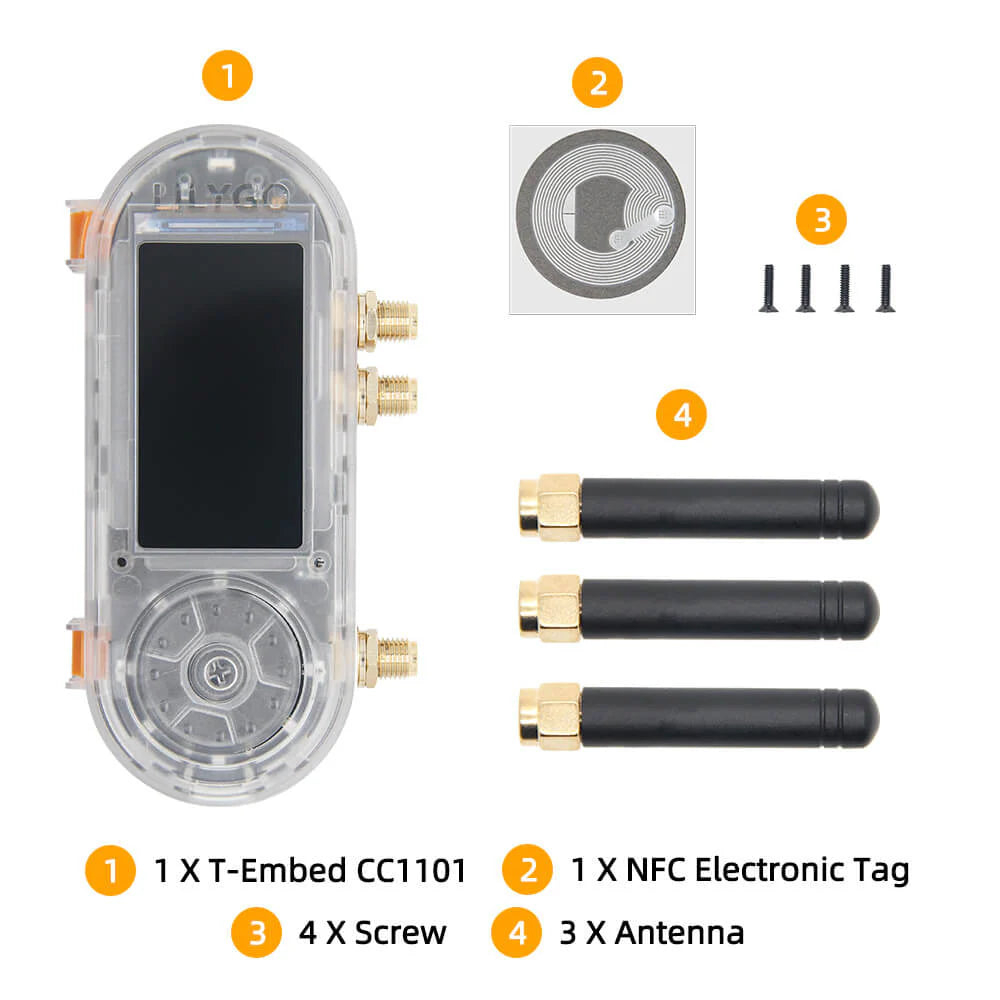

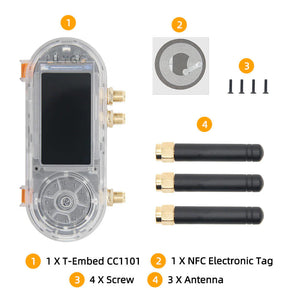

📷 LILYGO T-Embed CC1101 Plus Wireless Lab Board Package Contents



FAQ

Unable to detect sd card:

We were able to successfully test SD with SanDisk no larger than 32GB; But some other cards don't, and it's not clear why;

Therefore, when the SD card is not detected, it is recommended to change a SanDisk card not larger than 32G;

alt text

Other questions

Problem Link
How do I enter download mode? docs
How to download the program? dosc
How do I turn on the device after I shut it down? Issues #5
     How do I configure Wifi with EspTouch?         Issues #4
Why won't the battery charge? Issues #9
no display on the screen dosc
