Description

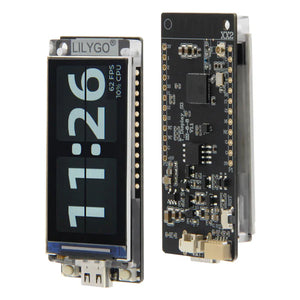

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.

The shell is only available for the soldered and non-soldered versions , not for the touch version, and the S3 with shell are soldered versions.

Note:

  • Please use a USB2.0 (USB A-USB C) cable.
  • Compatible With ST7789.
  • require a 200mAh lithium battery.



There are MIDI expansion boards for use with the T-Display S3

Connect it to headphones or a stereo and playback the simulated sound!
Compatible with all versions of T-Display S3.

[Please note that the package does not include the T-Display S3 device, only the MIDI Board, please select the right version of the T-Display S3 to use with the MIDI Board according to your needs].

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platform Arduino-ide、 Micropython
Flash 16MB
PSRAM 8MB
Bat voltage detection IO04
Onboard functions Boot + Reset + IO14 Button
LCD 1.9" diagonal, Full-color TFT Display
Drive Chip ST7789V
Resolution 170(H)RGB x320(V) 8-Bit Parallel Interface
Working power supply 3.3v
Support

STEMMA QT / Qwiic

JST-SH 1.0mm 4-PIN

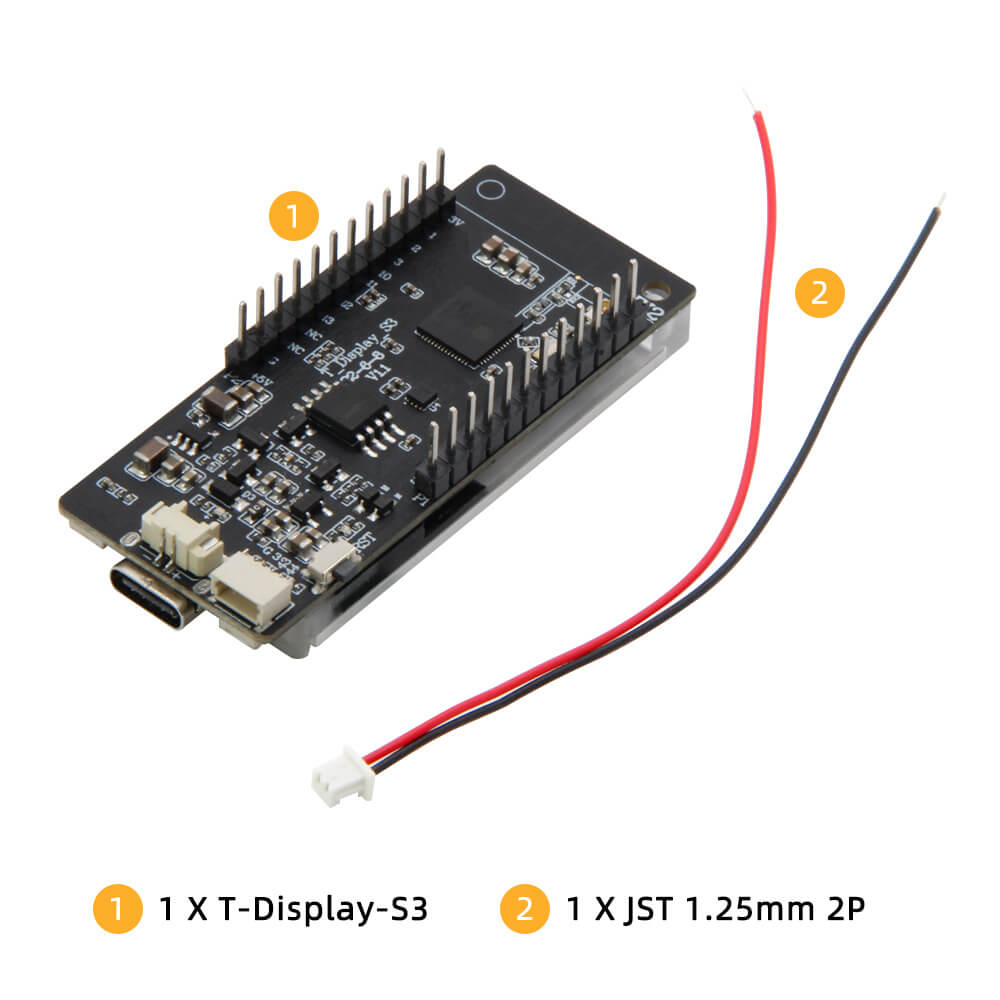

Connector JST-GH 1.25mm 2PIN



Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Display-S3



Pin Diagram

Basic Version

Touch Version
