HLK-LD2413 24G Water Level Detection Sensor Radar Module Liquid Detection Non-Contact Sensor Switch

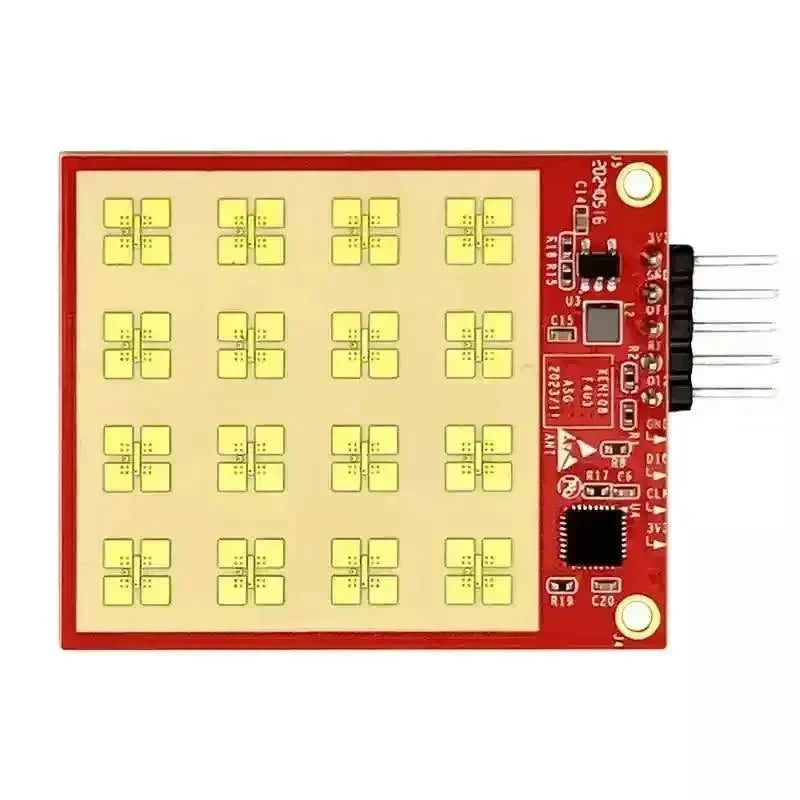

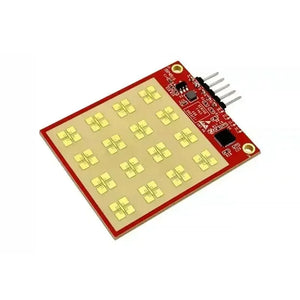

The HLK-LD2413 is a compact, high-precision 24GHz radar-based water level and material level detection sensor developed by Hi-Link. It combines an advanced millimeter wave radar module with intelligent firmware to provide reliable, contactless measurement in real time.
This HLK-LD2413 24G Wasserstandserkennungssensor features a powerful AIoT-enabled radar SoC, a high-performance microstrip antenna (1T1R), and integrated signal processing firmware using FMCW waveform for accurate level detection.
With a measurement range of 0.15 to 10 meters and ±3mm accuracy, it performs consistently in demanding environments, including dusty, pressurized, or sealed containers—making it a top choice for industrial, smart city, and home appliance applications.
Product Parameters
- Frequency: 24GHz (23~27GHz)
- Modulation Type: FMCW
- Scanning Bandwidth: 4GHz
- Detection Range: 0.15m~10m
- EIRP Parameter: 11dBm (-6dB two-way)
- Horizontal/Vertical Range: ±12°
- Distance Accuracy: ±3mm (theoretical value)
- Reporting Cycle: 160ms (configurable 50~1000ms)
- Operating Temperature: -40°C~+85°C
- Package Dimensions: 31.651.62.2mm
- Power Supply Range: 3.3V (3.0~3.6V) @1A
Key Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 23–27 GHz (24GHz center) |
| Sweep Bandwidth | 4 GHz |
| Beam Width | ±12° @ -6dB (dual) |
| Measurement Range | 0.15 – 10 m |
| Accuracy | ±3 mm |
| Supply Voltage | 3.0 – 3.6 V (typical: 3.3 V) |
| Average Current (160ms cycle) | 23 mA |
| Operating Temperature | -40°C to +85°C |
| Module Size | 44 mm x 36 mm |
| Data Interface | UART (Plug & Play) |
| Visualization Tool | Yes – distance & cycle configurable |
Applications of the HLK-LD2413 24G Radarmodul
-
Industrial Automation: Continuous, touch-free monitoring of liquid/material levels in chemical tanks or corrosive environments.
-
Smart Appliances: Real-time monitoring of water levels in smart dispensers, coffee machines, or humidifiers to prevent overflow or dry heating.
-
Hydrological Monitoring: Track water levels in rivers, reservoirs, and lakes to support resource management.
-
Smart Cities: Detect underground or drainage water levels to prevent flooding and support urban infrastructure.
Why Choose HLK-LD2413?
-
Advanced 24GHz FMCW radar technology
-
Ultra-compact design for embedded applications
-
High detection accuracy with low power consumption
-
Real-time data reporting via UART
-
Visual configuration software for flexible setup
Precautions
- Ensure the sensor's antenna is directly facing the detection area, and the surrounding space is open and unobstructed.
- The installation position of the sensor must be secure and stable, as sensor movement will affect detection accuracy.
- Ensure there are no moving objects or vibrations behind the sensor. Since radar waves can penetrate objects, the rear lobe of the antenna may detect movement behind the sensor. To mitigate this, use a metal shield or metal backing to block the rear lobe and reduce the impact of objects behind the sensor.
- If there are multiple 24 GHz radars in the working environment, avoid having their beams face each other, and install them at a distance to minimize potential interference.
- The power input voltage range is 3.0V~3.6V, with no significant spectral peaks in the power ripple within 2MHz. This solution is provided as a reference, and users should consider appropriate electromagnetic compatibility designs, such as ESD protection and lightning surge protection.
