Intel Realsense D455 Depth Camera for Unitree G1 Edu Humanoid Robot

The Intel RealSense D455 is the long‑range, high‑accuracy depth camera of choice for the Unitree G1 Edu Humanoid Robot. Built on the D450 stereo module with an extended 95 mm baseline — double that of the D435 — the D455 delivers < 2% depth error at 4 m, making it uniquely suited for G1's multi‑joint whole‑body coordination, 3D mapping, and autonomous navigation tasks. An integrated Bosch BMI055 6‑axis IMU feeds inertial data directly into the G1's sensor‑fusion pipeline, enabling visual‑inertial odometry (VIO) and real‑time balance correction during dynamic gaits. The D455 captures 1280 × 720 depth at 90 fps through global‑shutter sensors and pairs it with a 1280 × 800 global‑shutter RGB camera @ 30 fps — all powered and streamed over a single USB‑C 3.1 Gen1 cable. It is fully supported by the open‑source librealsense SDK 2.0 and the Unitree G1 ROS 2 SDK, making integration straightforward for researchers and developers.

Features

• 95 mm Stereo Baseline — The longest baseline in the RealSense D400 series enables the best depth accuracy at extended range — < 2% error at 4 m — exactly what the Unitree G1 needs for reliable obstacle detection and path planning at human‑walking distances.
• Built‑in 6‑Axis IMU (Bosch BMI055) — Streams gyroscope and accelerometer data at up to 250 Hz, directly compatible with the Unitree G1's sensor‑fusion stack for visual‑inertial odometry, drift correction, and dynamic balance during walking, running, and climbing tasks.
• 0.6–6 m Depth Range — Covers the full operational envelope of the G1 Edu, from close‑range table‑top interaction to corridor‑scale navigation without switching to a different sensor.
• 87° × 58° Depth FOV — Wide field of view gives the G1's onboard computer a broad situational awareness window — ideal for humanoid navigation through doorways, around furniture, and in cluttered indoor environments.
• 1280 × 720 @ 90 fps Global‑Shutter Depth — High frame rate with global shutter eliminates motion blur during fast leg and arm movements, keeping the depth point cloud sharp and usable during dynamic G1 motions.
• 1280 × 800 Global‑Shutter RGB — Colour camera shares the same global‑shutter technology as the depth sensors, ensuring pixel‑accurate colour mapping without rolling‑shutter artefacts during motion.
• USB‑C Single‑Cable Integration — Bus‑powered ~2.5 W over USB‑C 3.1 Gen1 — no separate power rail needed on the G1 Edu, simplifying wiring inside the robot's body.
• Hardware Sync Header — Sync cable header supports frame‑synchronised multi‑camera setups for 360° G1 perception or stereo‑pair augmentation for higher depth accuracy.
• Dual Mounting Threads — 1/4‑20 UNC tripod thread and 2× M4 screw holes enable direct mechanical attachment to the G1's head mount, chest plate, or arm end‑effector plates using standard fasteners.
• Unitree G1 ROS 2 Ready — The D455 is natively supported by the Unitree ROS/ROS 2 SDK; depth, RGB, and IMU topics are published as standard sensor messages, with pre‑configured launch files available from Unitree's open‑source repository.
• Open SDK & Cross‑Platform — Librealsense 2.0 supports Python, C++, C#, Java, and MATLAB on Ubuntu 20.04 / 22.04, Windows 10/11, and macOS, matching the G1 Edu's development environment flexibility.
• Vision Processor D4 — On‑board ASIC handles all stereo matching and colour ISP, offloading the G1's processing unit (GO EMLA or GO M702) for smooth real‑time operation.

Specifications

Reference Documents

• Intel RealSense D455 — Official Specifications
• librealsense SDK 2.0 — GitHub Repository
• D400 Series Datasheet — Intel RealSense Developer Site

Application

• Unitree G1 Edu Whole‑Body 3D Perception — Head‑mounted D455 feeds dense 3D point clouds into the G1's SLAM and navigation stack, enabling the robot to build real‑time environment maps and plan collision‑free paths through indoor spaces.
• Visual‑Inertial Odometry (VIO) — The D455's BMI055 IMU streams 6‑axis data at up to 250 Hz; fused with depth frames in the G1's IMU pipeline, it corrects odometry drift during walking, stair climbing, and dynamic balancing tasks.
• Autonomous Navigation & Obstacle Avoidance — 0.6–6 m depth range and 87° horizontal FOV let the G1 detect and avoid obstacles — chairs, doors, stairs — at human‑scale walking distances, critical for safe indoor deployment.
• Object Detection & Manipulation — 1280 × 720 @ 90 fps depth + RGB colour enable the G1's arm and hand controllers to detect, localise, and plan grasp trajectories for objects on tables, shelves, and floors.
• Human‑Robot Interaction & Face Tracking — Global‑shutter RGB at 30 fps with 90° FOV and depth co‑registration support face detection, expression recognition, and gaze tracking for social HRI use cases.
• ROS 2 Research & Education — Native ROS 2 support through realsense2_ros with published depth, colour, point cloud, and IMU topics; pre‑configured launch files match the G1 Edu's Ubuntu 22.04 development environment.
• Multi‑Camera 360° Perception — Sync header supports hardware‑synchronised multi‑D455 rigs for full‑body situational awareness on the G1's torso, back, or arms, ideal for research labs studying omnidirectional humanoid navigation.
• Outdoor & Bright‑Light Navigation — The D455's stronger IR projector and global‑shutter sensors handle brighter ambient light better than the D415/D435; for permanent outdoor G1 deployments, consider the D455F (IR Pass Filter) or D456 (IP65).

Structions of camera

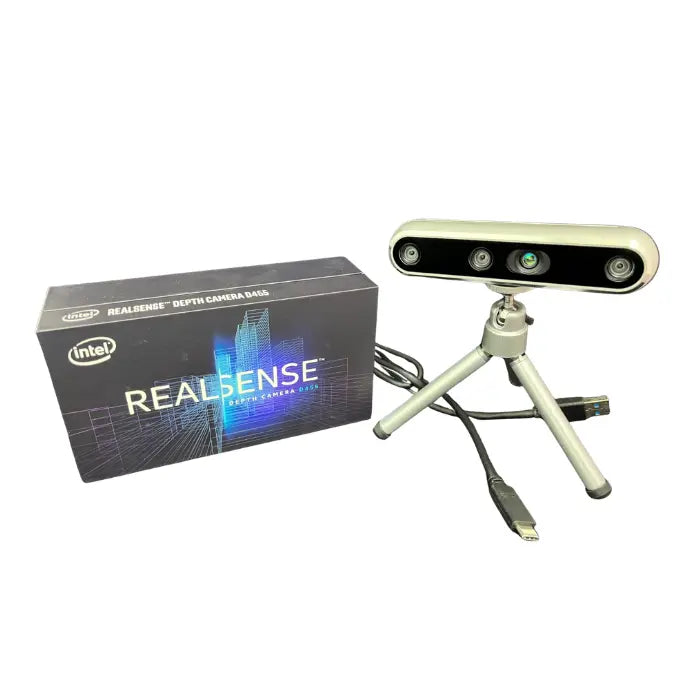

Packing List

FAQ

1. Is the D455 the right RealSense camera for the Unitree G1 Edu?

Yes. The D455 is the best all‑round RealSense choice for the G1 Edu because it combines the D450 module with a 95 mm baseline (critical for accurate depth at walking distances), an integrated Bosch BMI055 IMU for sensor fusion, and a global‑shutter RGB camera — all in a compact 124 mm body that mounts cleanly to the G1's head. The G1 Edu's ROS 2 SDK has pre‑configured launch files for the D455.

2. Can the D455 IMU data be used with the G1's balance control system?

Yes. The D455 streams gyroscope and accelerometer data at up to 250 Hz via the librealsense API. This data can be routed into the G1's sensor‑fusion pipeline to improve visual‑inertial odometry (VIO) and provide real‑time inertial feedback for the G1's balance and posture control algorithms during walking, turning, and recovering from pushes.

3. How does the D455's 95 mm baseline compare to the D435 for G1 navigation?

The 95 mm baseline (vs 50 mm on the D435) provides significantly better depth accuracy at longer distances — < 2% error at 4 m vs ~2% at 2 m on the D435. Since the G1 walks at human scale (1–2 m from obstacles), the D455's longer baseline means more reliable obstacle detection and fewer false‑negative depth readings at navigation‑relevant distances.

4. What is the effective depth range for the G1's indoor navigation tasks?

The D455's ideal operating range is 0.6 m – 6 m, with the Min‑Z at ~52 cm at full resolution. For typical indoor G1 navigation (corridor widths of 1–3 m, table‑top reach of 0.5–0.8 m), this range covers all relevant scenarios without needing to switch to a different sensor. For closer tasks (< 50 cm), the D405 is a complementary option.

5. Can I use the D455 with ROS or ROS 2 on the G1 Edu?

Yes. The official realsense2_ros ROS 2 package publishes depth, colour, rectified depth, point cloud, and IMU topics as standard sensor messages. Unitree provides reference launch files and URDF descriptions for mounting the D455 on the G1 Edu in their open‑source SDK repository. Ubuntu 20.04 / 22.04 are officially supported.

6. How is the D455 powered on the G1 Edu?

The D455 is bus‑powered via USB‑C 3.1 Gen1 at ~2.5 W typical. The G1 Edu's onboard USB‑A or USB‑C ports can supply sufficient power without a separate power rail, simplifying internal wiring. For setups with multiple D455 units or USB extension cables, a powered USB hub may be required to maintain stable power delivery.

7. Can multiple D455 cameras be mounted on the G1 for 360° perception?

Yes. The D455's hardware sync header supports frame‑synchronised multi‑camera setups — critical for aligning depth frames from front, rear, and side D455 units on the G1. Up to four D455 cameras can be hardware‑synced for simultaneous 360° coverage, which is particularly useful for research labs studying omnidirectional humanoid navigation and SLAM.

8. How does the D455 compare to the D455F for outdoor G1 deployments?

The D455F adds a factory‑installed 750 nm IR Pass Filter on the depth lens, which suppresses IR reflections from glass, metal, and bright sunlight. For G1 outdoor deployments in direct sunlight, the D455F produces cleaner depth by eliminating IR interference. If the G1 is primarily used indoors, the standard D455 is sufficient. For permanently outdoor installations, the D456 (IP65 sealed) provides both IR filtering and weather resistance.

9. Can the D455 be used for object manipulation tasks on the G1?

Yes. The D455's 1280 × 720 @ 90 fps depth and 1280 × 800 global‑shutter RGB provide sufficient resolution and frame rate for object detection, 6‑DOF pose estimation, and grasp planning for the G1's arms. At the G1's typical arm‑reach distance of 0.3–0.8 m, the D455's depth accuracy (~<2% at 2 m) is well within the tolerance needed for most pick‑and‑place tasks.

10. What mounting options are available for attaching the D455 to the G1 Edu?

The D455 has a 1/4‑20 UNC tripod thread (standard camera tripod mount) and 2× M4 screw holes on the body. These mate directly with the G1 Edu's head mount plate or chest plate using standard M4 fasteners. Third‑party 3D‑printed brackets compatible with the G1's mounting points are also available from the Unitree and open‑source community.
