Gravity: 7/24 Industrial Analog pH Meter Kit (Arduino, Raspberry Pi)

66,95 €

The Gravity: 7/24 Industrial Analog pH Meter Kit V2 is a professional‑grade pH monitoring solution engineered for continuous, real‑time water quality analysis. Equipped with an industrial‑grade pH probe and a high‑precision signal conversion board, the kit ensures exceptional stability, durability, and accuracy.

Designed for long‑term deployment in demanding environments, the Gravity Industrial pH Meter Kit V2 is ideal for applications such as aquaculture systems, chemical process monitoring, and environmental water testing. Its robust design makes it the perfect choice for industrial IoT water quality monitoring, smart farming, and scientific research projects requiring reliable pH measurement over extended periods.


Projects

Introduction: This tutorial will teach you how to program with esp32 and how to do the calibration with Arduino IDE, how to use ph meter v2 in esp32 with new calibration.

Unboxing. Analog pH meter pro V2 DFRobot Gravity for Arduino, ESP32, NodeMCU



Industrial-Grade Durability

The industrial pH probe supports 24/7 continuous measurement and offers a lifespan exceeding 4380 hours. Its rugged design ensures reliable performance in harsh or long-term monitoring scenarios.



High Accuracy & Auto Calibration

With a measurement accuracy of ±0.1 pH at 25°C, this kit uses a two-point calibration method. The included software library can automatically identify standard buffer solutions (pH 4.0 and 7.0), simplifying the calibration process while maintaining precision.



Wide Compatibility & Easy Integration

The system operates on a 3.3V to 5.5V input range, making it fully compatible with Arduino, Raspberry Pi, LattePanda, and other popular microcontroller platforms. The Gravity interface and BNC connector allow for a plug-and-play setup—no soldering required.



Features

  • Wide voltage input (3.3~5.5V) for broad microcontroller support

  • Hardware-filtered analog output, reducing noise and signal jitter

  • Two-point calibration with automatic buffer recognition

  • Gravity + BNC connectors, plug-and-play design

  • Industrial-grade pH probe for 24/7 monitoring

  • Upgraded transmitter board for enhanced stability and precision

  • Standardized dimensions and connectors for easier hardware integration



Technical Specifications

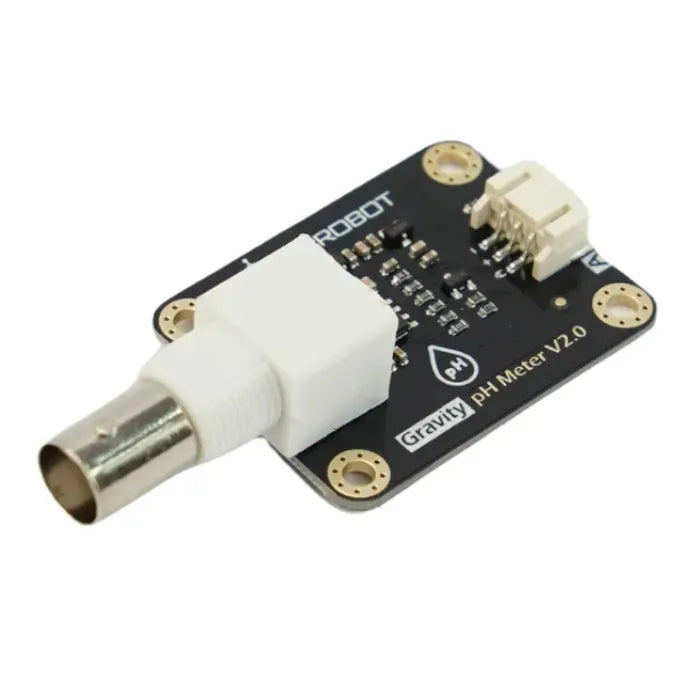

Signal Conversion Board (Transmitter V2)

  • Supply Voltage: 3.3~5.5V

  • Output Voltage: 0~3.0V

  • Measurement Accuracy: ±0.1 pH @ 25°C

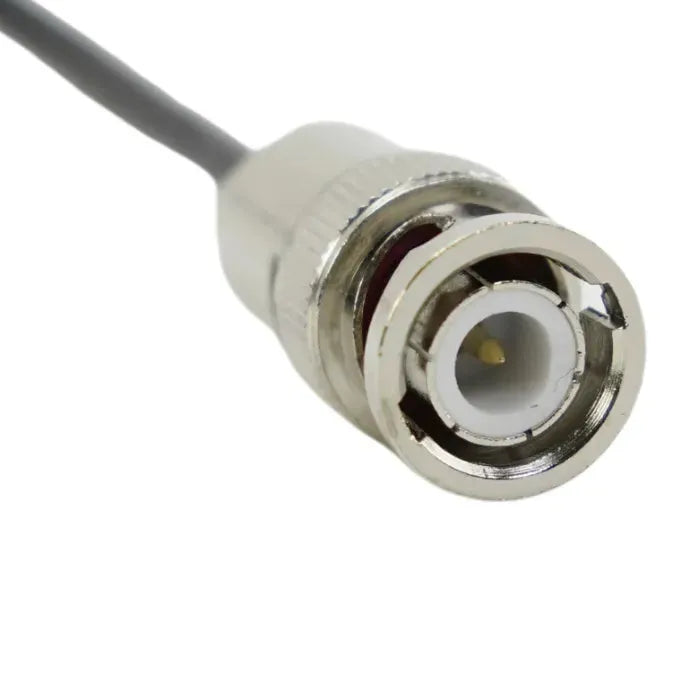

  • Probe Connector: BNC

  • Signal Connector: PH2.0-3P

  • Dimensions: 42mm × 32mm (1.66 × 1.26 in)

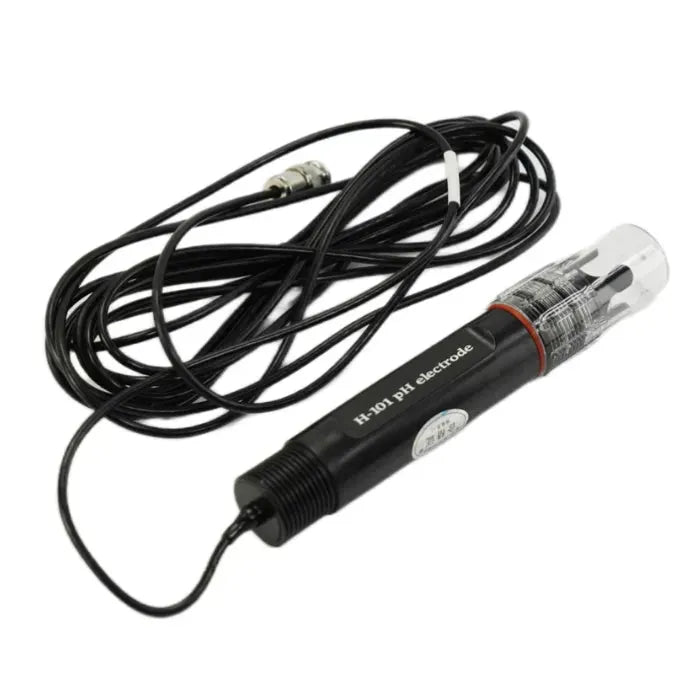

pH Probe (Industrial Grade)

  • Detection Range: 0 ~ 14 pH

  • Accuracy: ±0.1 pH @ 25°C

  • Temperature Range: 0 ~ 60°C

  • Response Time: < 1 minute

  • Probe Life: > 4380 hours (continuous 7/24 operation)

  • Cable Length: 500 cm

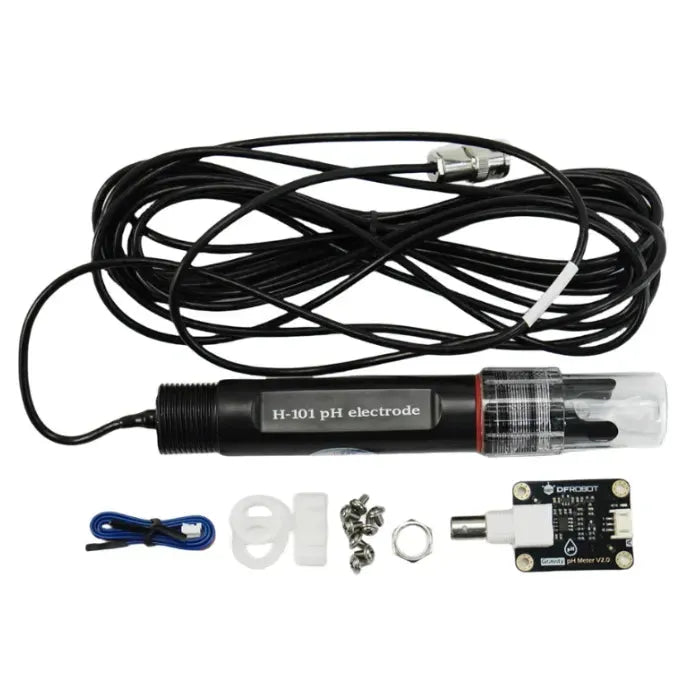

Package Includes

  • 1x Industrial Grade pH Probe

  • 1x Signal Conversion Board V2

  • 1x Gravity Analog Sensor Cable

  • 2x Waterproof Gasket

  • 1x Screw Cap for BNC Connector

  • 4x M3 × 10 Nylon Pillars

  • 8x M3 × 5 Screws



Usage Notes

  1. Keep the BNC connector and signal board dry and clean to prevent impedance issues.

  2. Avoid placing the board on wet surfaces; use nylon spacers for safe mounting.

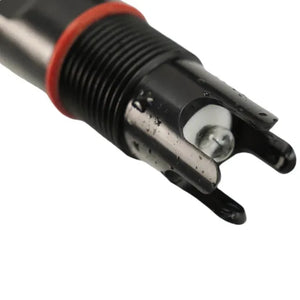

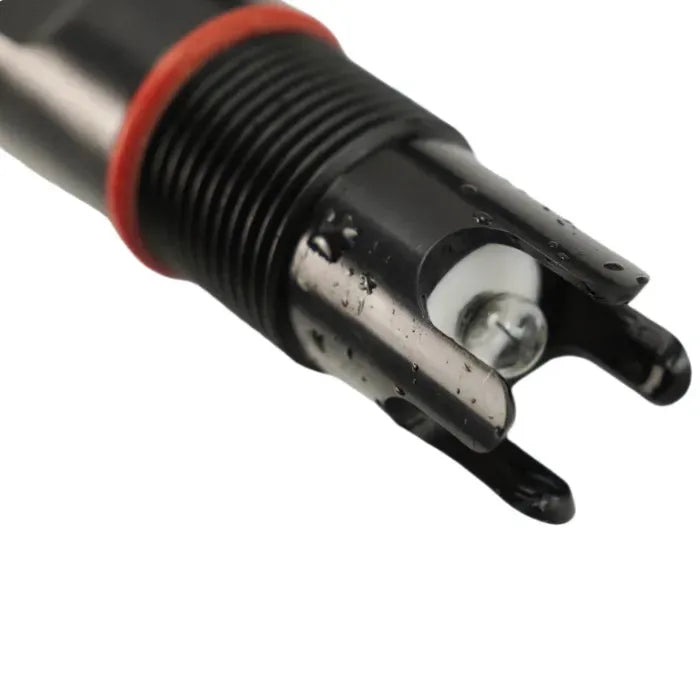

  3. Do not allow the probe tip's glass bulb to contact hard materials.

  4. Disconnect the probe after use if the system is powered off for long durations.

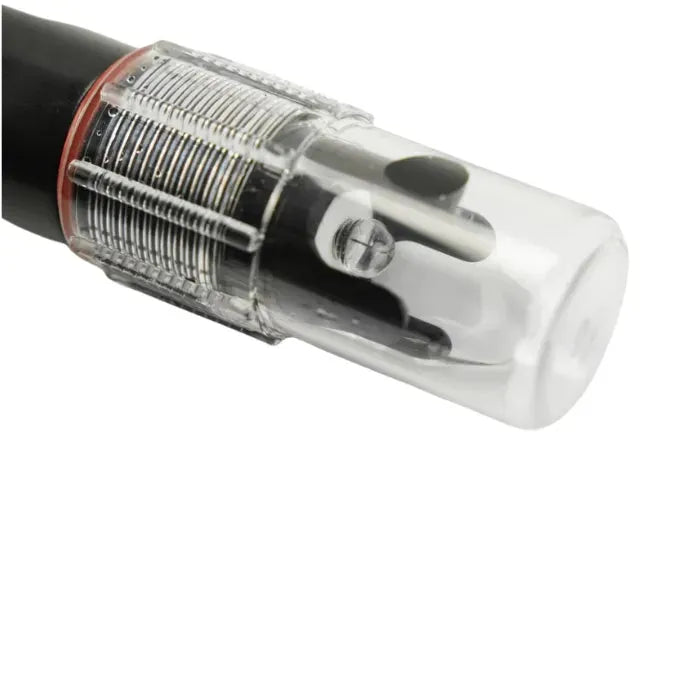

  5. White crystals may form around the probe cap due to protective KCL solution; this is normal and does not affect performance.
