Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module-1

Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module

€89,00

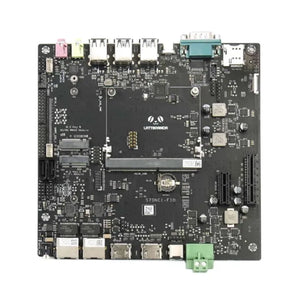

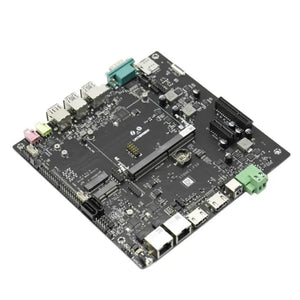

The Full-Function Evaluation Carrier Board is an advanced development platform designed to fully leverage the capabilities of the LattePanda Mu compute module. It exposes all pins of the compute module and offers a rich set of interfaces and expansion options, making it ideal for hardware/software testing, prototyping, and industrial applications.



Key Features

  • Complete Pin Exposure for full compatibility with LattePanda Mu

  • Rich I/O Interfaces including USB, HDMI, SIM, RS232, and audio ports

  • Wide Voltage Input: Supports 12~20V DC input

  • Dual Standard PCIe Slots: PCIe 3.0 x1 and PCIe 3.0 x4 for peripherals like GPU, NICs, and sound cards

  • Dual M.2 Expansion Slots: M.2 E Key and M.2 B Key for WiFi, 4G/5G cards, and more

  • Dual 2.5GbE Ethernet Ports with Intel I225-V controllers

  • ITX Standard Form Factor (170mm x 170mm), compatible with common ITX enclosures and test platforms

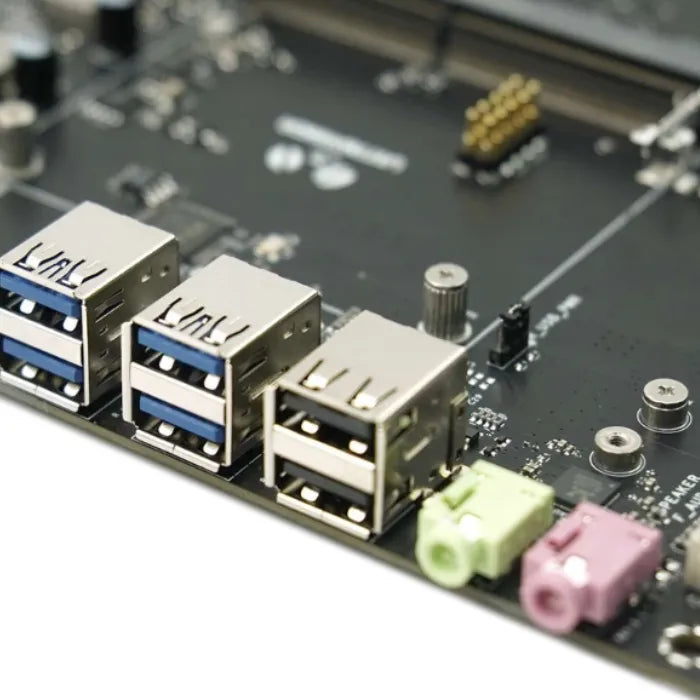

 Front I/O Interface

  • 1x 3.5mm microphone interface
  • 1x 3.5mm headphone interface
  • 2x USB 2.0
  • 4x USB 3.0
  • 1x USB Type-C(supports USB 2.0, USB 3.0, DisplayPort)
  • 1x DB9(RS232)
  • 1x SIM card slot



 Rear I/O Interface

  • 1x Power button
  • 2x Intel 2.5GbE network interfaces
  • 2x HDMI 2.0 interfaces
  • 1x DC 5.5x2.5mm power jack
  • 1x DC Power 5.08mm Screw Terminal Plug



Expansion Slots

  • 1x PCIe 3.0 x1 slot
  • 1x PCIe 3.0 x4 slot (multiplexed with the SATA signals)
  • 1x M.2 E Key slot: Supports 2230 Type WLAN card (PCIe 3.0 x1, USB 2.0; multiplexed with the Ethernet port 2 (RJ45_2) signals)
  • 1x M.2 B Key slot: Supports 3042/3052 Type 4G/5G WWAN card (USB 3.0, USB 2.0)
  • 2x SATA 6Gb/s interfaces (multiplexed with the PCIe 3.0 x4 signals)



Pins/Jumpers/Buttons

  • 1x CPU fan interface (CPU_FAN)
  • 1x System fan interface (SYS_FAN)
  • 1x MIPI CSI-2 interface (MIPI_CSI)
  • 1x I2S header (I2S1)
  • 1x TPM header (TPM)
  • 1x eSPI header (ESPI_CON)
  • 1x Auto power-on jumper (AUTO_PWR)
  • 1x Temperature sensor header (TMP)
  • 1x USB 2.0 header (F_USB1)
  • 1x Front panel header (F_PANEL1)
  • 1x UART and I2C header (UART_I2C_1)
  • 1x SoC GPIO header (GPIO_1)
  • 1x Speaker interface (SPEAKER)
  • 1x HD Audio header (F_AUDIO)
  • 1x Function Configuration DIP switches (ID_SW)
  • 1x USB header power control jumper (F_USB_PWR)
  • 1x Front USB power control jumper (R_USB_PWR)
  • 1x PoE power header (POE_IN)
  • 1x Hard disk power interface (HDD_PWR1)
  • 1x Power input header (POE_OUT)
  • ITX Dimension: 170 x 170mm

Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module-2



Specifications

  • Dimensions: 170mm x 170mm (ITX Standard)

  • Power Input: 12~20V DC via barrel jack or screw terminal

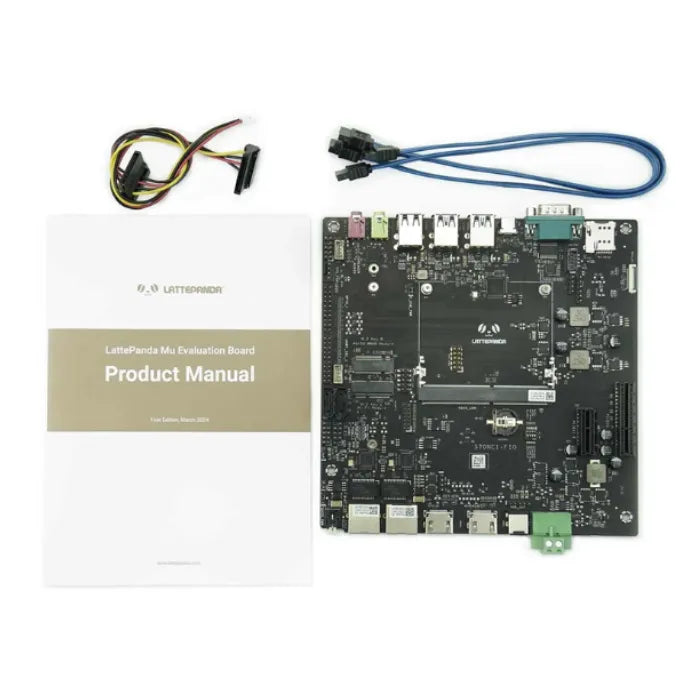

Package Includes

  • Full-Function Evaluation Carrier Board x1

  • SATA Data Cables x2

  • SATA Power Cable x1

  • Product Manual x1



Important Notes

  1. The LattePanda Mu compute module is not included.

  2. Please ensure the board is powered off before inserting or removing the LattePanda Mu or any peripherals.

  3. Suitable for both professional development and educational prototyping environments.
