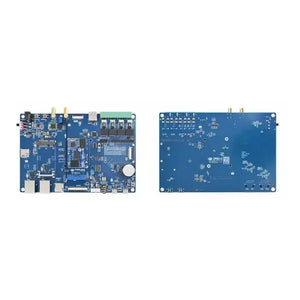

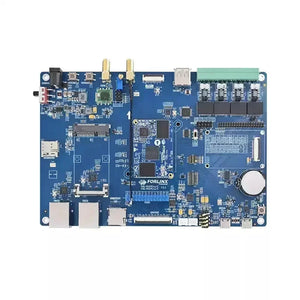

Forlinx OKMX93 i.MX 9352 ARM Dev Board
The OK-MX9352-C development board offers a robust and cost-effective solution for industrial and edge AI applications. With a modular design featuring a core board and a baseboard, it ensures flexibility, easy assembly, and reliable connections.
The board supports a variety of interfaces, including Ethernet, UART, CAN-FD, RS485, 4G, and WiFi, making it suitable for a wide range of development and evaluation projects.
Key Features
- TSN-Enabled Ethernet: Supports up to 2 Ethernet ports, with one supporting TSN for real-time industrial applications and IT/OT convergence.
- CAN-FD Interface: Includes 2 high-speed, reliable, and stable CAN-FD ports for advanced network integration.
- High-Performance Processor: Combines a multi-core architecture with 2 Cortex-A55 cores for multitasking and 1 Cortex-M33 core for real-time control, running Linux OS and RTOS.
- AI Capability: Equipped with a 0.5 TOPS NPU powered by ARM Ethos U-65, enabling efficient edge AI operations.
Highlights
- Wide Temperature Range: Industrial-grade materials ensure operation in extreme environments, from -40°C to +85°C.
- Compact Design: The core board measures 48mm × 33mm × 1.5mm, with 2 × 100-pin connectors for seamless integration.
Development_Board_Function_Parameters
- LCD(1) RGB888 24-bit, max resolution 1366x768p60 or 1280x800p60
- LVDS(1) Single 8-bit, max resolution 1366x768p60 or 1280x800p60
- MIPI-DSI(1) 4 lanes, max resolution 1920x1200p60
- TF(1) 1 TF card slot, supports SD card 3.0 protocol
- 4G(1) Mini-PCIe slot, compatible with EC20 module, includes external antenna
- Ethernet(2) 2 ports: 10M/100M/1000M, ENET1/ETH1 supports TSN
- GPIO(28) 28 pins, double-row, shared with LCD
- ADC(4) 4 12-bit ADC, sampling rate 1MS/s
- CAN-FD(2) Supports CAN 2.0B, with isolation and 4-level pulse protection
- RS-485 (2) Supports automatic send/receive, isolated, with 4-level pulse protection
- USB2.0 (2) USB Type-C and USB 2.0 expansion, up to 4 USB-A ports
- UART (2) 3.3V TTL level, 2.54mm pitch
- WiFi & BT(1) BL-M8723DU module, supports 2.4G WiFi and Bluetooth 2.1/4.2
- RTC (1) CR2032 battery holder, keeps time during power loss
- Audio (1) 1 stereo jack with dual-channel HP and MIC inputs
- Camera (1) MIPI-CSI, compatible with OV5645 module
- KEY (3) 3 keys: reset, power, user-defined
-
LED (1) User-defined LED indicators
Core_Board_Function_Parameters
- LCD (1) 24-bit RGB, max resolution 1366x768p60 or 1280x800p60
- LVDS (1) Single 4-lane, max resolution 1366x768p60
- MIPI-DSI (1) 4-lane MIPI-DSI, max resolution 1920x1200p60
- Ethernet (2) 2 ports, one supports TSN, 10/100/1000 Mbps
- UART (8) Up to 8 UARTs, supports baud rates up to 5 Mbps
- CAN-FD (2) Supports CAN 2.0B and CAN FD standards
- USB (2) 2 integrated PHYs for USB 2.0
- SD (2) Supports SD 3.0 protocol, up to 200MB/s
- SDIO (1) 1 SDIO slot, supports SDIO 3.0 protocol
- SAI (3) 3 SAI slots, supports multiple audio standards
- SPDIF (1) Supports original capture mode, IEC61937 compression
- PDM(1) 24 PDM module for high-accuracy audio capture
- MIPI-CSI(1) Supports MIPI-CSI 2 v1.3, up to 200 MHz clock rate
- I2C(8) Supports up to 8 I2C buses, max speed 5 Mbps
- I3C(2) 2 I3C modules, supports HDR-DDR mode
- ADC(4) 4-channel 12-bit ADC, 1MS/s
-
JTAG(1) For Cortex-M33 debugging
This development board is an excellent choice for developers seeking high performance, low cost, and reliable solutions for advanced embedded systems and edge AI applications.
