Extension Port Module for Core2

Note: All products are tax-inclusive.

ExtPort For Core2 is an expansion module for M5Stack Core2 converting to Grove interface. It provides PortB/C/D/E 4 Grove interfaces, and PortD/E can be configured with different GPIOs via internal dip switches.

Notes

• ExtPort For Core2 has the signature of designer.

• Before use, please switch one of the 3-pin dip switch to be ON. Remember that, only one of the dip switch can be set to ON, or it may damage the module.

• If you need to use the Core2 bottom board, you will need to cut off the four support feet of the PROTO module (as shown below), to avoid interference with the bottom board, and use M3 screws to fix.

Product Features

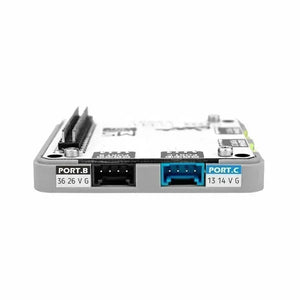

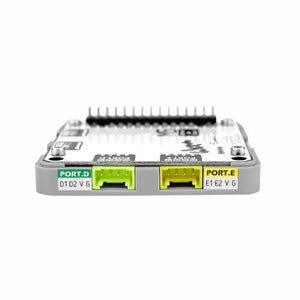

• 4x Grove interface (PortB/C/D/E)

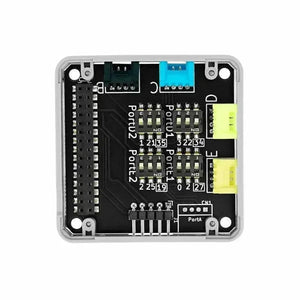

• 4x 3-pin dip switches (PortD/E)

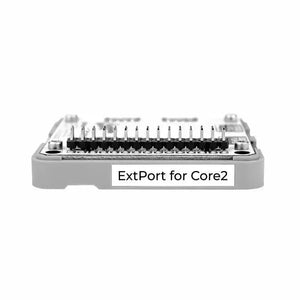

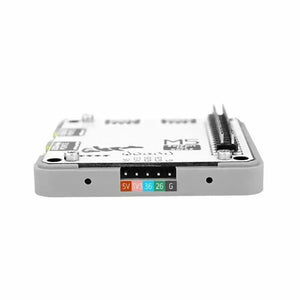

• 1x [email protected] pin head

Included

• 1x ExtPort For Core2

Application Scenarios

• Multi-sensor, multi-actuator extensions
• DIY project

Specifications
