Espressif ESP32 S2 WROVER 4MB Module
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!

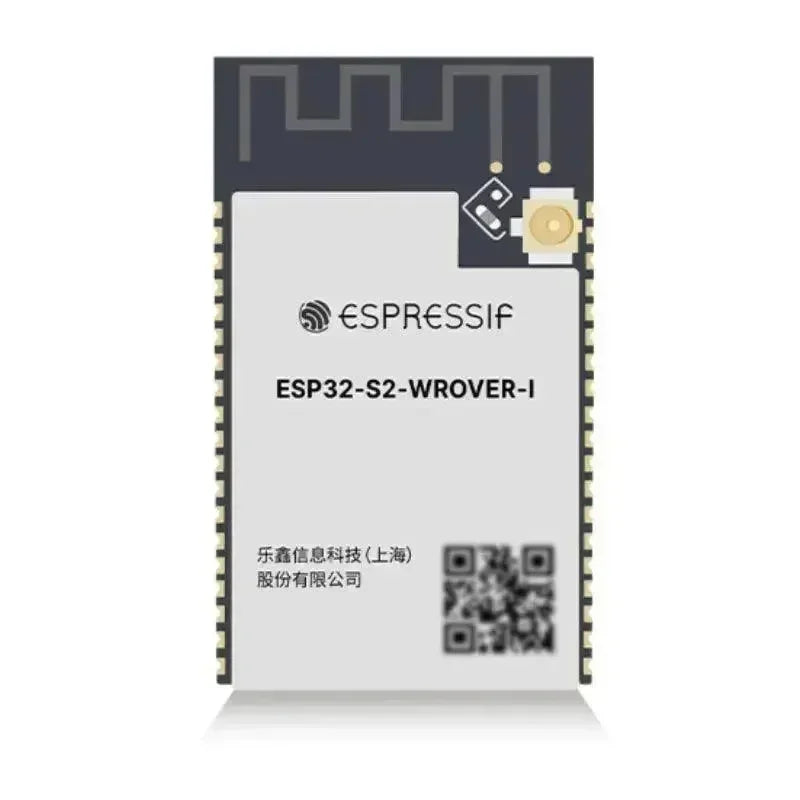

Espressif ESP32 S2 WROVER 4MB Module
The ESP32-S2-WROVER is a versatile Wi-Fi MCU module with powerful features and a wide range of peripheral interfaces, suitable for applications such as wearable electronics and smart home devices. The ESP32-S2-WROVER uses an onboard PCB antenna and is equipped with 4 MB of external SPI flash and 2 MB of SPI PSRAM.
Features
CPU and On-chip Memory
- Built-in ESP32-S2 chip, Xtensa® single-core 32-bit LX7 microprocessor, supporting clock frequencies up to 240 MHz
- 128 KB ROM
- 320 KB SRAM
- 16 KB RTC SRAM
Wi-Fi
- 802.11 b/g/n
- Data rates up to 150 Mbps in 802.11n mode
- Frame aggregation (TX/RX A-MPDU, RX A-MSDU)
- 0.4 µs guard interval
- Operating channel center frequency range: 2412 ~ 2484 MHz
Peripherals
- GPIO, SPI, UART, I2C, I2S, LCD interface, Camera interface, IR, pulse counter, LED PWM, TWAI® (ISO 11898-1 compliant, i.e., CAN 2.0 specification), full-speed USB OTG, ADC, DAC, touch sensor, temperature sensor
Module Integrated Components
- 40 MHz integrated crystal oscillator
- 4 MB SPI flash
- 2 MB PSRAM
Antenna Options
- Onboard PCB antenna (ESP32-S2-WROVER)
- External antenna via a connector (ESP32-S2-WROVER-I)
Operating Conditions
- Operating voltage/power supply voltage: 3.0 ~ 3.6 V
- Operating temperature: –40 ~ 85°C
Certifications
- RF Certifications: Refer to ESP32-S2-WROVER and ESP32-S2-WROVER-I certificates
- Environmental certifications: RoHS/REACH
Testing
- HTOL, HTSL, uHAST, TCT, ESD
