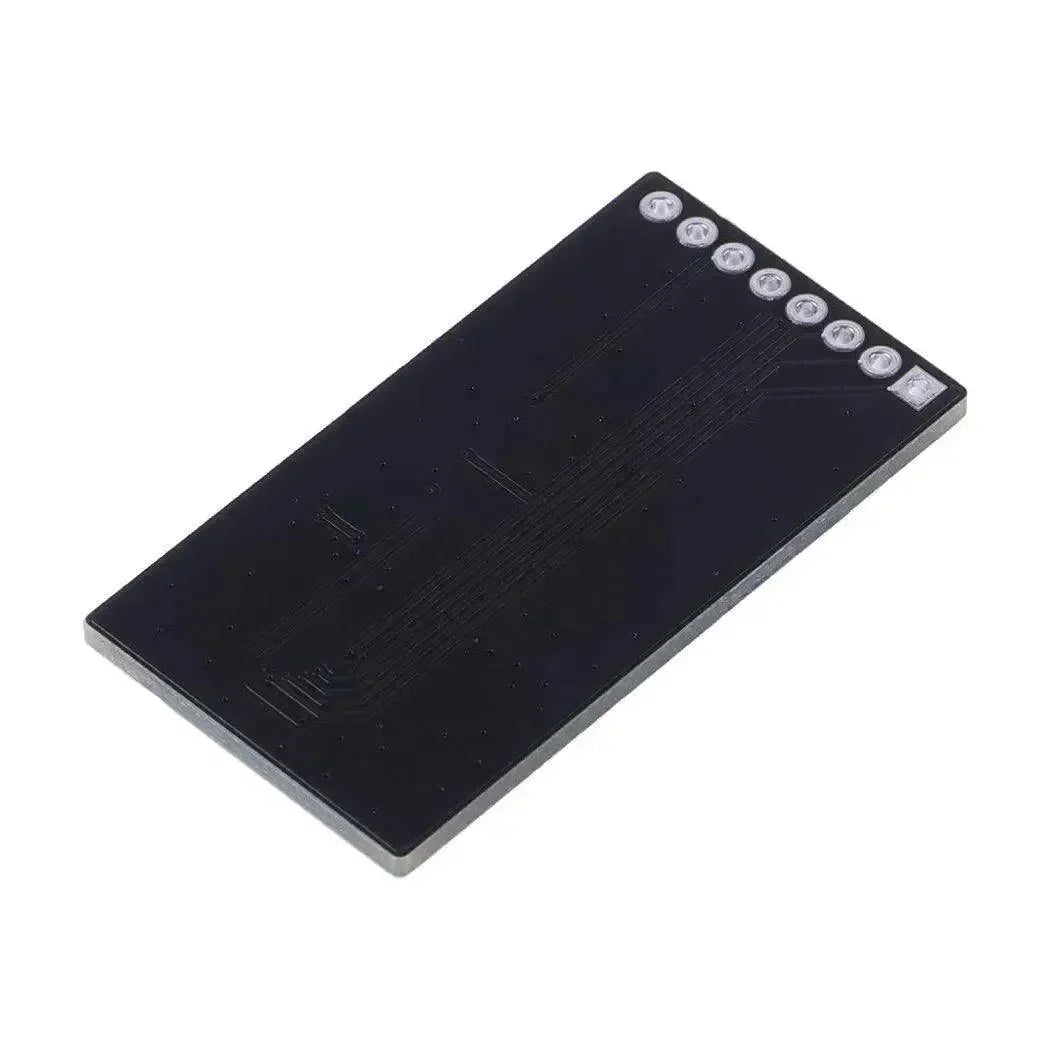

Epaper Breakout Board - 24-pin FPC Connection

€5,90

Feature

  • ePaper display extension designed for Seeed Studio XIAO boards: Provide 24-pin FPC connector, to allow you to drive ePaper display seamlessly
  • Additional 8-pin 2.54 Header: Offers flexibility by letting you connect to any microcontroller like Arduino UNO or Rasbperry Pi
  • Plug and Play: All pins are led out, no soldering is needed



Description

This ePaper Breakout Board is an extension board, built with 24-pin FPC connector, designed for SeeedStudio XIAO series boards, to allow you driving ePaper display seamlessly. It also comes with a 8-pin 2.54 header, letting you connect to any microcontroller like Arduino UNO or Rasbperry Pi.

It is suitable for a wide range of ePaper displays, from small to large sizes. Supporting by different functional SeeedStudio XIAO boards and without any soldering, this extension board can be easily deployed in various scenarios.



Application

  • Digital Signage: Use the ePaper Breakout Board to create dynamic and energy-efficient digital signs.
  • E-Readers: Build your own customized e-reader with features tailored to your needs.
  • Smart Home Control Panels: Integrate the board into a smart home system for a sleek and modern control panel.
  • Retail Price Tags: Create electronic price tags for a more efficient and eco-friendly retail experience.
  • Educational Tools: Develop interactive educational materials that can be easily updated and are energy-efficient.

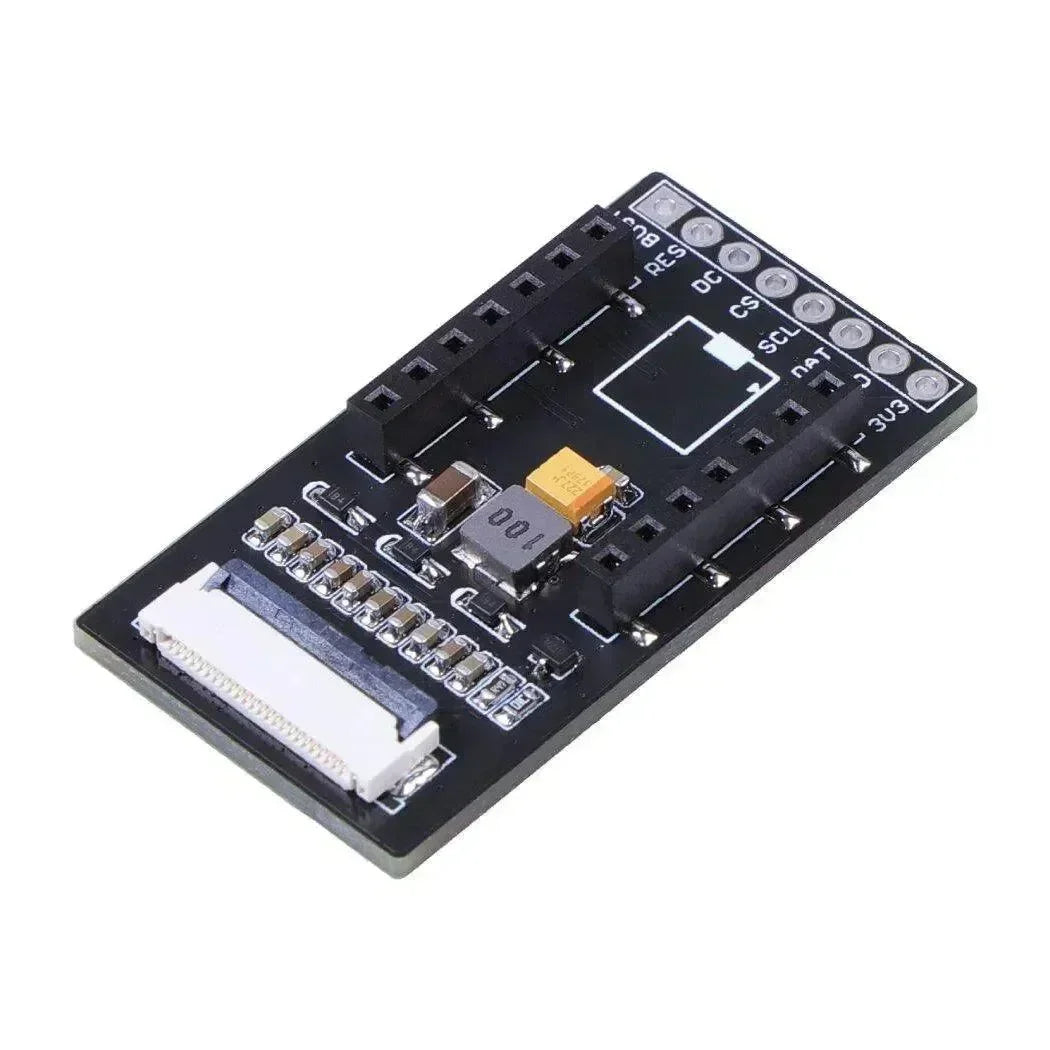

Hardware Overview

  • 24-pin FPC Connector: For the 2.13 inch ePaper.
  • XIAO Socket: For connecting the Seeed Studio XIAO development board.
  • IO Break out: For connecting the other controller, such Arduino UNO or Raspberry Pi.

Pin definition

ePaper

XIAO

RST

D0

CS

D1

DC

D3

BUSY

D5

SCK

D8

MOST

D10

Part List

ePaper Breakout Board

x1
