Elephant 6 DOF Robotics Arm 1kg Payload MyCobot 320 M5Stack

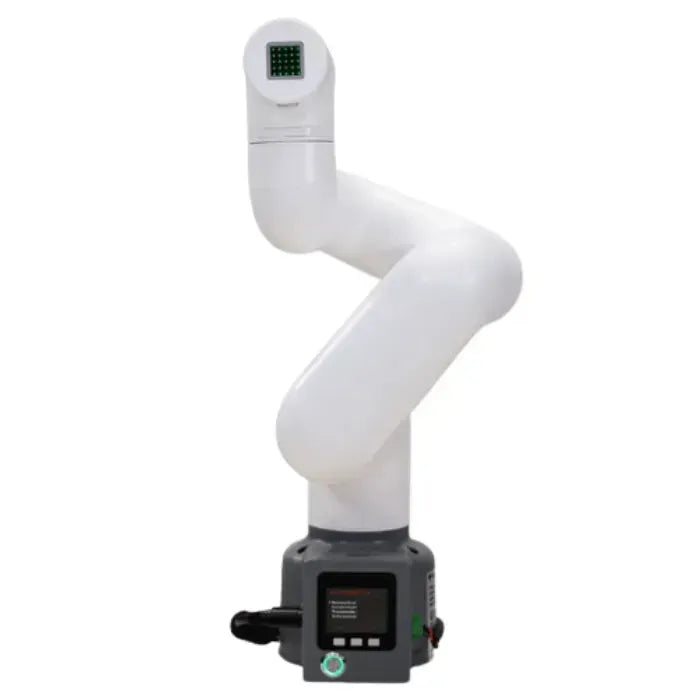

The myCobot 320 M5Stack is a compact and powerful 6 Degrees of Freedom (6 DOF) collaborative robotic arm developed by Elephant Robotics and M5Stack. Designed for light industrial use, education, and research, it offers a 1kg payload, 350mm working radius, and high accuracy with ±0.5mm repeatability. This robot is ideal for applications such as AI development, automation prototyping, STEM education, and vision-based interaction projects.
Key Features
-
6-axis robotic arm with smooth motion and high reliability
-
1kg payload and 350mm working radius
-
±0.5mm positioning accuracy
-
ESP32 microcontroller with built-in dual display screens
-
Built-in 5x5 LED matrix, 2” LED display, and 24V I/O x 12
-
Supports M5Stack ecosystem, UIFlow, Python, and Arduino
-
Built-in emergency stop interface and custom hardware buttons
-
Compact desktop design suitable for education, demos, and R&D labs
Robust Hardware Configuration
-
High-efficiency servo motors x6 for accurate joint control
-
Industrial-grade 24V input, allowing for PLC integration
-
12 I/O interfaces for flexible expansion with sensors and actuators
-
Lightweight structure at 3360g, perfect for table-top deployment
-
2000h operational lifespan, built to last in continuous learning environments
Development & Connectivity
-
Fully supports ROS1 and open-source robot control
-
Compatible with Windows, Linux, and macOS development platforms
-
Programming languages supported: Python, C++, C#, JavaScript
-
Connect via USB, Wi-Fi, or Bluetooth for quick setup and control
-
Integrated with myBlockly, UIFlow, and myStudio for versatile programming
Application Scenarios
-
STEM education and robotics teaching
-
AI and vision system development
-
Object recognition and automated sorting
-
Light assembly tasks and desktop automation
Open Source & Expandable
-
Supports secondary development and visual programming
-
Open access to Grove interfaces for sensor expansion
-
Equipped with drag-and-teach functionality for intuitive learning
-
Use with miniRoboFlow for offline teaching and calibration without a PC
Technical Specifications
-
Degrees of Freedom: 6
-
Payload: 1000g
-
Working Radius: 350mm
-
Positioning Accuracy: ±0.5mm
-
Weight: 3360g
-
Working Temperature: -5°C to 45°C
-
Joint Max Speed: 160°/s
-
Power Input: DC 24V / 120W
-
Controller: ESP32
-
Interfaces: 12x 24V I/O, USB, Type-C, Grove
Included Software & Tools
-
myStudio: One-click firmware updates and device management
-
myBlockly: Drag-and-drop block coding interface
-
UIFlow: Visual development platform integrated with M5Stack
-
miniRoboFlow: Coordinate calibration, firmware control without PC
Why Choose myCobot 320 M5Stack
-
Trusted by over 5,000 users in 60+ countries
-
Ideal for beginners, educators, developers, and innovators
-
Compact, programmable, and expandable with powerful hardware
-
Perfect for creating your own personal robotic assistant
