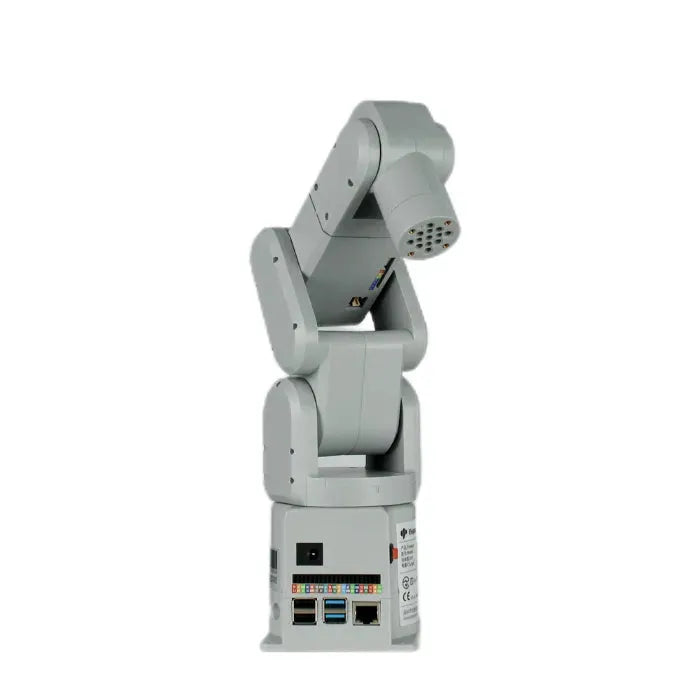

Elephant 6-Axis Robotics MechArm Pi for Makers Designers

Sale price €899,00

📦 Location of the warehouse: China

Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4.4/5.0

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
Elephant 6-Axis Robotics MechArm Pi for Makers Designers-1

Elephant 6-Axis Robotics MechArm Pi for Makers Designers

€899,00

Have you ever dreamed of having a small robot that can do it all? Not the towering machines from sci-fi films, but something compact, smart, and incredibly versatile. We did too—and we brought it to life. Meet the MechArm: the most compact 6-axis robotic arm, perfect for makers, designers, and anyone passionate about creating.



Small But Mighty

Small in size. Giant in potential. The MechArm Pi is a highly compact yet powerful 6-axis robotic arm, engineered for precision, portability, and unlimited creativity. Whether you're a maker, designer, educator, or robotics enthusiast, this is the robot companion you've always imagined.



Lightweight & Portable

Weighing just 1kg, MechArm Pi is truly travel-friendly. Designed with portability in mind, it fits easily into your backpack. You can take it to workshops, maker events, or classrooms—and get started instantly.



Multiple End Actuators

MechArm supports a wide variety of end effectors such as grippers, suction cups, pen holders, and more. Switch between creative and technical tasks with ease—from drawing and chess playing to light-duty automation.



Excellent Configuration

Built with innovation in mind, the MechArm Pi includes:

  • 6-axis high-precision magnetic encoder motors

  • Integrated Raspberry Pi 4B controller

  • Voice control, visual tracking, and gesture response

  • HDMI support for screenless operation

  • ROS (Robot Operating System) compatibility



Open-Source Interfaces

MechArm is designed for developers and learners. It supports:

  • Object/facial/image recognition

  • Open-source platforms and frameworks

  • Programming in Python, C++, C#, JavaScript

  • Cross-platform support: Windows, macOS, Linux, Android

  • USB, Wi-Fi, and Bluetooth connections



Learn Robotics with Programming

MechArm Pi is an excellent tool for learning to code and control robotics. It supports block-based programming (Blockly), as well as advanced coding via Python, Arduino, C++ and more. Detailed GitBook tutorials help you start from scratch or expand your robotics expertise.



Optional AI Vision Kit

Upgrade your setup with an optional AI kit, allowing the arm to visually recognize, track, and interact with objects. Ideal for machine vision, grasping tasks, or smart automation development.



Technical Specifications

  • Model: MechArm 270-Pi

  • Controller: Raspberry Pi 4B

  • Degrees of Freedom: 6

  • Load Capacity: 250g

  • Working Radius: 270mm

  • Repeated Accuracy: ±0.5mm

  • Weight: 1kg

  • Motor Type: High-precision magnetic encoder motors x6

  • Max Speed: 120°/s

  • Power Input: 8–12V 5A



Ideal for:

  • STEM education & robotics training

  • Designers & product prototyping

  • Developers & tinkerers

  • Labs & creative studios



Reference

Get User Tutorial On Github(Reconmmended Reading)

Get Software Tutorial On Github(Coding Reading)

Download 3D file(Host & Accessories STEP Files)
