EQKIT Digital Control Power Supply DIY Kit

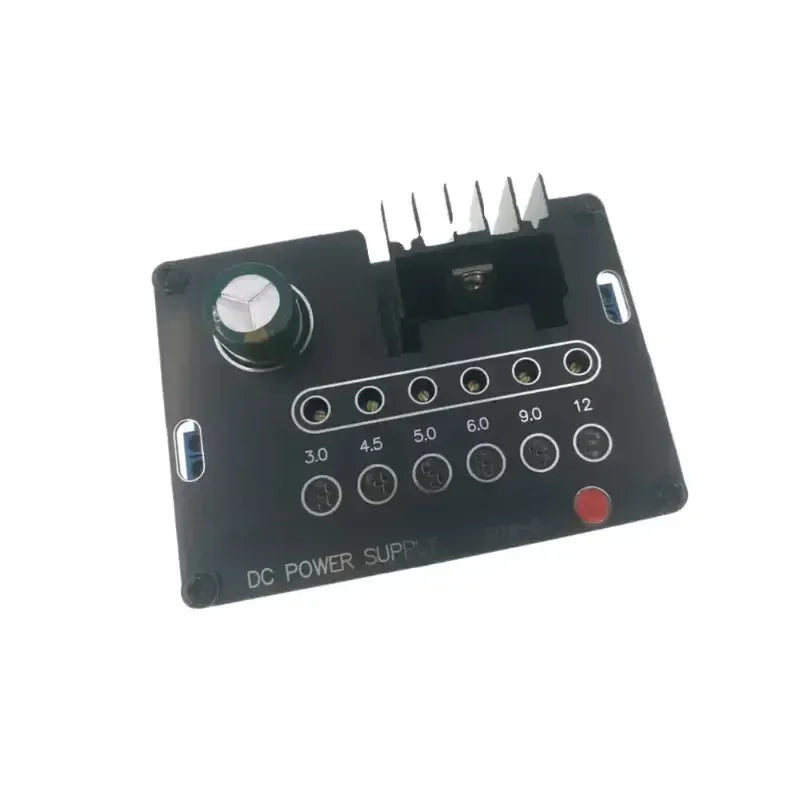

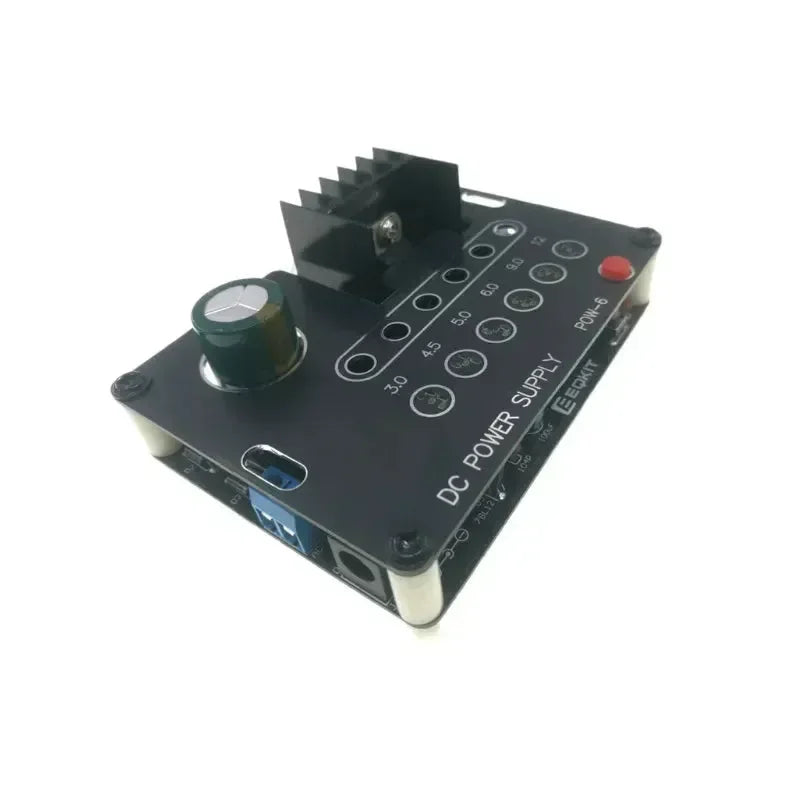

The EQKIT team has designed the POW-6 digital control regulated power supply kit. This innovative product outputs six fixed voltage levels, adjustable via a push-button switch. Each voltage level is indicated by an LED light, displaying the selected output voltage. The POW-6 is simple to operate, highly practical, and features a modern design, making it an excellent tool for beginners and electronics enthusiasts.

Features

1. Push-Button Voltage Control: Allows switching between six fixed voltage outputs—3V, 4.5V, 5V, 6V, 9V, and 12V.

2. LED Indicators: Clearly indicate the current output voltage level for easy monitoring.

3. Versatile Input Options: Supports DC input (18V) or AC input (15V), compatible with 5.5mm power plugs.

4. Adjustable Voltage Calibration: Includes precise voltage adjustment to minimize deviation.

5. Compact Design: Small and portable, with dimensions of 93×67×41mm.

6. High Output Stability: Delivers a maximum current of 1A.

Specifications

• Input Voltage: 18V DC or 15V AC.
• Output Voltage Levels: 3V, 4.5V, 5V, 6V, 9V, 12V.
• Maximum Output Current: 1A.
• Weight: 95g (kit only), 180g (with power supply).
• PCB Dimensions: 93×67×41mm.

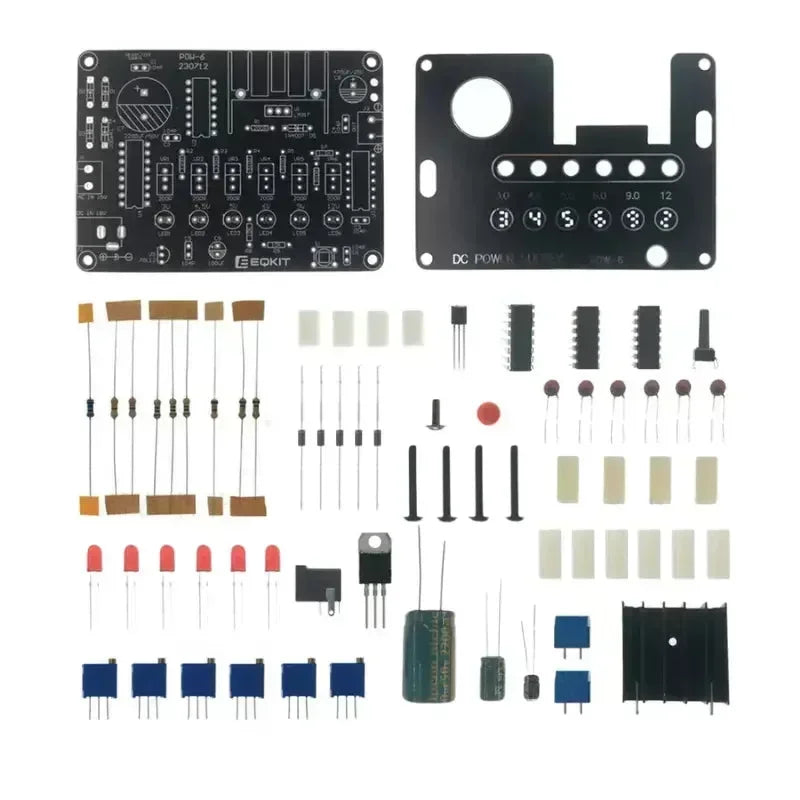

• Assembly Guide: Comes with an electronic instruction manual, including circuit diagrams.

The POW-6 is an ideal power supply solution for testing and experimentation in educational and DIY projects, providing reliable performance and ease of use.
