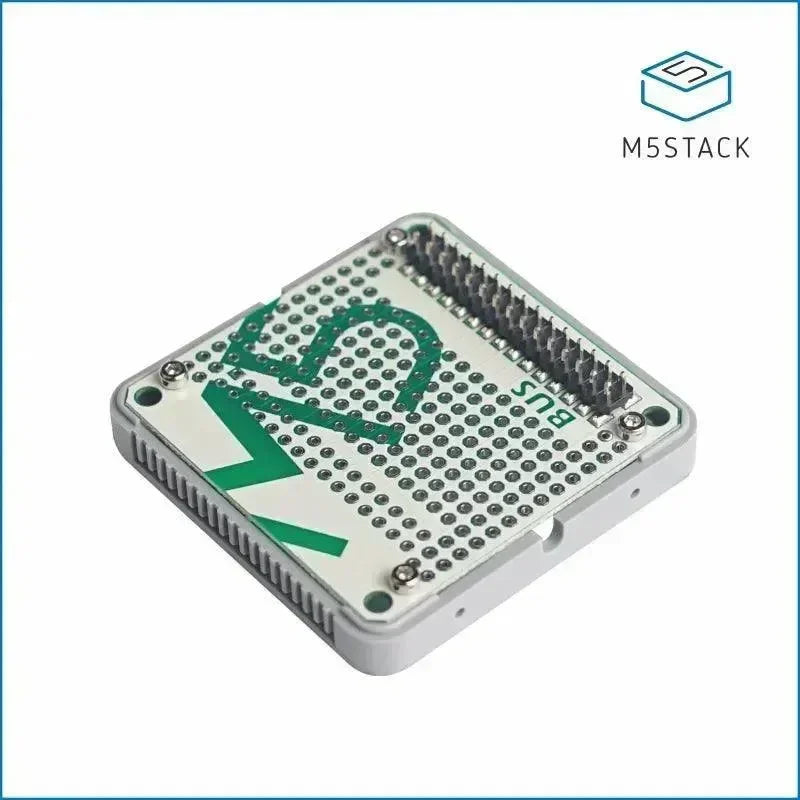

BUS Module M5STACK M-BUS Connection

Note: All products are tax-inclusive.

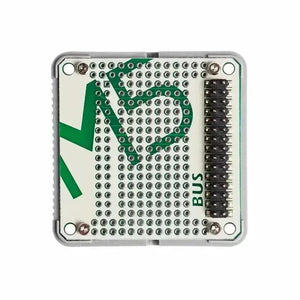

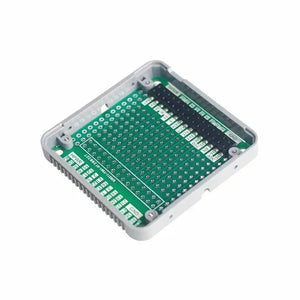

BUS allows you add your own custom circuit design to the universal prototype perboard so it could interact with the M5Core via M-BUS.

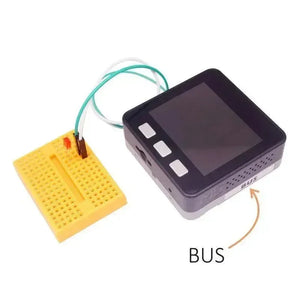

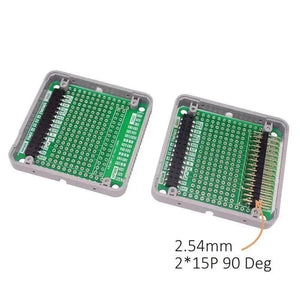

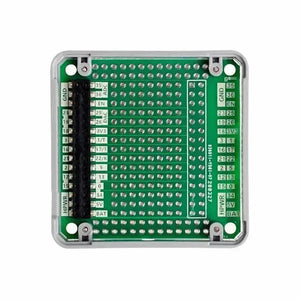

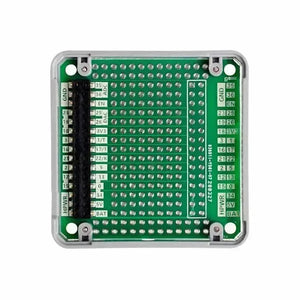

Just like other M5 modules, BUS can connect with other layers through M-BUS, while in this module, we've extended the M_BUS pin to pin to the other side of the board. You might need to cut off the fence on the side to be able to expose the pins. We've included a 2*15 90-degree pin set in the package.

Product Features

• Hole Size: 0.039" 1mm (CNC Drilled)
• Hole Pitch: 0.1 in - (2.54 mm)
• Entire Hole Quantity: 200 Holes

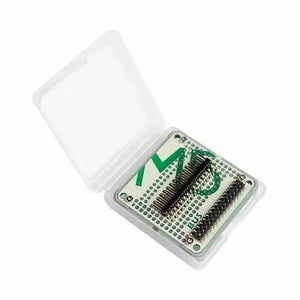

Include

• 1x BUS Module

Specification
