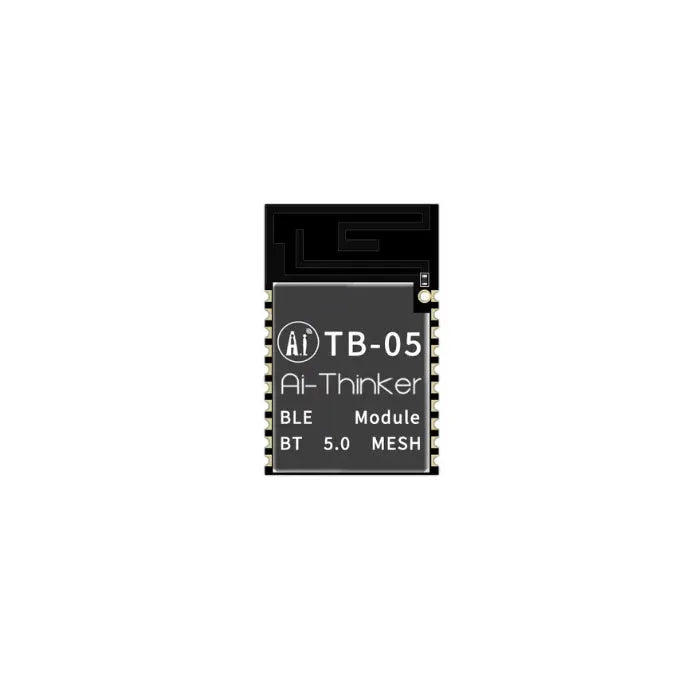

The TB-05 is a Bluetooth 5.0 module designed for smart lighting products with support for mesh networking. It can be directly controlled by Tmall Genie without the need for a gateway, making it an excellent choice for IoT and smart home applications. With AT transmission firmware, it allows for secondary development and supports multiple sleep modes, making it highly versatile and energy-efficient.
Features
- Bluetooth Mesh Networking: Enables device-to-device communication through a peer-to-peer star network.
- Gateway-Free Tmall Genie Control: Directly controllable by Tmall Genie without an external gateway.
- 6 PWM Output Channels: Frequency of 1 kHz with brightness adjustment range of 5% ~ 100%.
- Energy Efficient: Supports multiple sleep modes, with a deep sleep current as low as 0.8 μA.
- Compact Design: SMD-20 package with 1.1 mm pin spacing, compatible with both semi-hole pads and through-hole pads.
- Additional Features: Includes small night light functionality and wall switch-based color temperature adjustment.
Specifications
| Parameter | Details |
|---|---|
| Model Number | TB-05 |
| Brand | Ai-Thinker |
| Interface Type | GPIO / PWM / SPI / ADC |
| Bluetooth Version | 5.0 |
| Antenna Type | Onboard (PCB), compatible with spring antenna |
| Frequency Range | 2400 ~ 2483.5 MHz |
| Transmission Power | Maximum 10.5 dBm |
| Receiver Sensitivity | -93 dBm |
| Dimensions | 12.2 × 18.6 × 2.8 mm |
| Package | SMD-20 |
| Operating Temperature | -40°C ~ 85°C |
| Storage Environment | -40°C ~ 125°C, <90% RH |
| Supply Voltage | 2.7V ~ 3.6V |
| Power Consumption | - Deep Sleep Mode: 0.8 μA |
| - Idle Mode: 1.8 μA | |
| - TX: 21.56 mA | |
| Transmission Distance | ≥ 100 m (Outdoor Line-of-Sight) |
Applications
- Smart Lighting Products: Ideal for brightness and color temperature adjustment.
- IoT and Smart Home Systems: Perfect for integration into smart home ecosystems with Tmall Genie control.
- Energy-Efficient Devices: Suitable for applications requiring ultra-low power consumption.

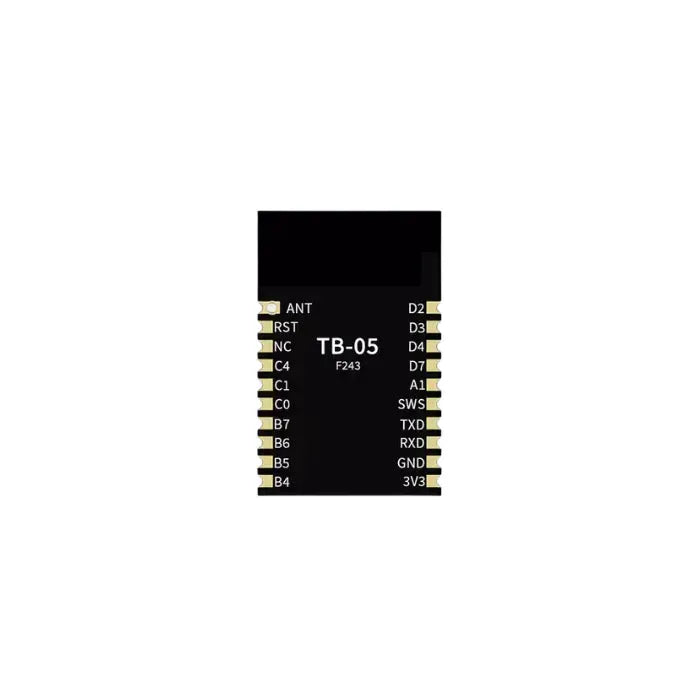

Pin Descriptions
| Pin Number | Name | Function Description |
|---|---|---|
| 1 | D2 | SPI Chip Select (Low Active) / PWM3 Output / GPIO PD2 |
| 2 | D3 | PWM1 Reverse Output / GPIO PD3 |
| 3 | D4 | GPIO PD4 / Single-Wire Master / PWM2 Reverse Output |
| 4 | D7 | GPIO PD7 / SPI Clock (I2C_SCK) |
| 5 | A1 | GPIO PA1 |
| 6 | SWS | Single-Wire Slave |
| 7 | TXD | PWM4 Output / UART_TX / SAR ADC Input / GPIO PB1 |
| 8 | RXD | PWM0 Reverse Output / UART_RX / GPIO PA0 |
| 9 | GND | Ground |
| 10 | 3V3 | 3.3V Power Supply |
| 11 | B4 | PWM4 Output / SAR ADC Input / GPIO PB4 |
| 12 | B5 | PWM5 Output / SAR ADC Input / GPIO PB5 |
| 13 | B6 | SPI Data Input (I2C_SDA) / UART_RTS / SAR ADC Input / GPIO PB6 |
| 14 | B7 | SPI Data Output / UART_RX / SAR ADC Input / GPIO PB7 |
| 15 | C0 | I2C Data / PWM4 Reverse Output / UART_RTS / GPIO PC0 |
| 16 | C1 | I2C Clock / PWM1 Reverse Output / PWM0 Output / GPIO PC1 |
| 17 | C4 | PWM2 Output / UART_CTS / PWM0 Reverse Output / SAR ADC Input |
| 18 | NC | Not Connected |
| 19 | RST | Reset Pin |
| 20 | ANT | Antenna Interface |
