Ai-Thinker TB-02 BLE Module
Shipping within 72 hours
*Excluding pre-order items
Ai-Thinker TB-02 BLE Module

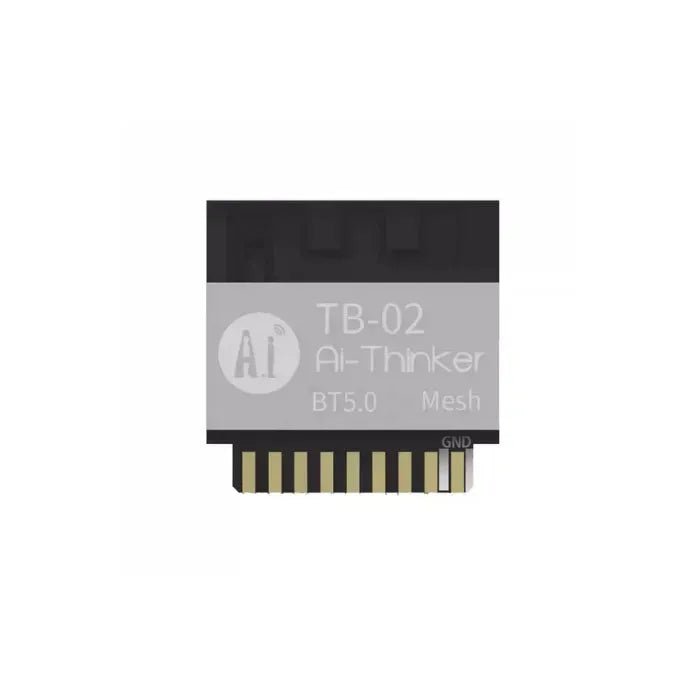

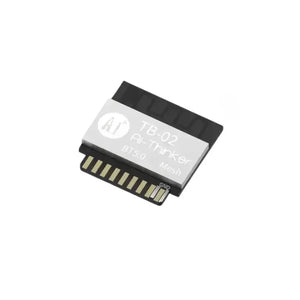

Ai-Thinker TB-02 is a compact Bluetooth 5.0 module designed for IoT, smart lighting, and smart home applications. As part of the official Ai-Thinker TB series, the TB-02 supports Bluetooth Mesh networking, open SDK-based secondary development, and practical wireless control features for connected lighting, home automation, and embedded BLE products.
The Ai-Thinker TB-02 BLE module is suitable for developers building Bluetooth Mesh devices, smart lamps, control panels, low-power consumer electronics, and wireless automation nodes. With support for AT firmware, mobile interaction, and low-power operation, the TB-02 can be used in many compact BLE smart home and IoT control scenarios.
Features
- Bluetooth 5.0 wireless connectivity for low-power embedded communication
- Bluetooth Mesh support for multi-device networking in smart lighting and smart home systems
- Open SDK support for secondary development and custom firmware workflows
- Supports AT firmware for application integration and wireless control
- Designed for smart lighting, including color temperature switching and brightness-related control functions
- Supports Android, iOS, and mini-program style application interaction according to official materials
- 6 PWM output channels with a 1kHz frequency and brightness adjustment capability
- Compact package options for embedded BLE and IoT module integration
Specifications
| Parameter | Details |
|---|---|
| Brand | Ai-Thinker |
| Model | TB-02 |
| Wireless Standard | Bluetooth 5.0 |
| Package | DIP-18 or SMD-13 |
| Dimensions | 18.0 x 18.0 x 2.8 mm (+/-0.2 mm) |
| Frequency Range | 2400 to 2483.5MHz |
| Maximum Transmission Power | 10dBm |
| Maximum Receiver Sensitivity | -93.2dBm |

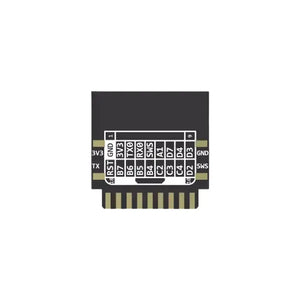

| Interface | GPIO, PWM, SPI, ADC |
| Operating Temperature | -20C to 70C |
| Storage Environment | -40C to 125C, less than 90% RH |
| Supply Voltage | 2.7V to 3.6V, supply current no less than 50mA |
| Power Consumption | Deep Sleep 0.8uA, Idle 1.8uA, Transmission 12.62mA |
| Transmission Distance | 80 to 150m in outdoor line-of-sight conditions |
Applications
- Smart lighting products such as lamps, ambient lights, and color temperature control systems
- Smart home devices using Bluetooth Mesh networking for wireless control
- IoT modules and embedded BLE nodes for automation, sensors, and connected appliances
- Low-power Bluetooth 5.0 applications in consumer electronics and home control terminals
- Projects that need BLE mesh communication, mobile app interaction, and compact wireless integration
Other Content
Ai-Thinker TB-02 belongs to the official TB series Bluetooth module family. According to the official series introduction, these modules are designed for direct smartphone-based Mesh networking and are suitable for smart lights, sockets, air conditioners, and other smart home devices. This makes the TB-02 a practical choice for BLE Mesh product development and wireless lighting control.
For development work, the official materials also mention secondary development and SDK-based customization. That makes the Ai-Thinker TB-02 BLE module useful not only for finished smart lighting products, but also for engineering prototypes and custom IoT solutions that require low-power Bluetooth communication and flexible control logic.
Resources
- Ai-Thinker TB series official topic page
- TB-02 specification
- TB-02 user manual
- Telink 825X SDK
- Ai-Thinker certification page
FAQ
Does the TB-02 support Bluetooth Mesh?
Yes. According to the official TB series introduction, the Ai-Thinker TB-02 supports Bluetooth Mesh, making it suitable for smart lighting and smart home networking.
What kind of products is the TB-02 suitable for?
The TB-02 is suitable for smart lighting, smart home, low-power IoT, and embedded Bluetooth 5.0 control applications.
Does the TB-02 support secondary development?
Yes. Official materials indicate support for secondary development and SDK-based customization, which is useful for engineering development and custom BLE firmware workflows.
What interfaces are available on the TB-02?
The official specification lists GPIO, PWM, SPI, and ADC interfaces for embedded application development.
