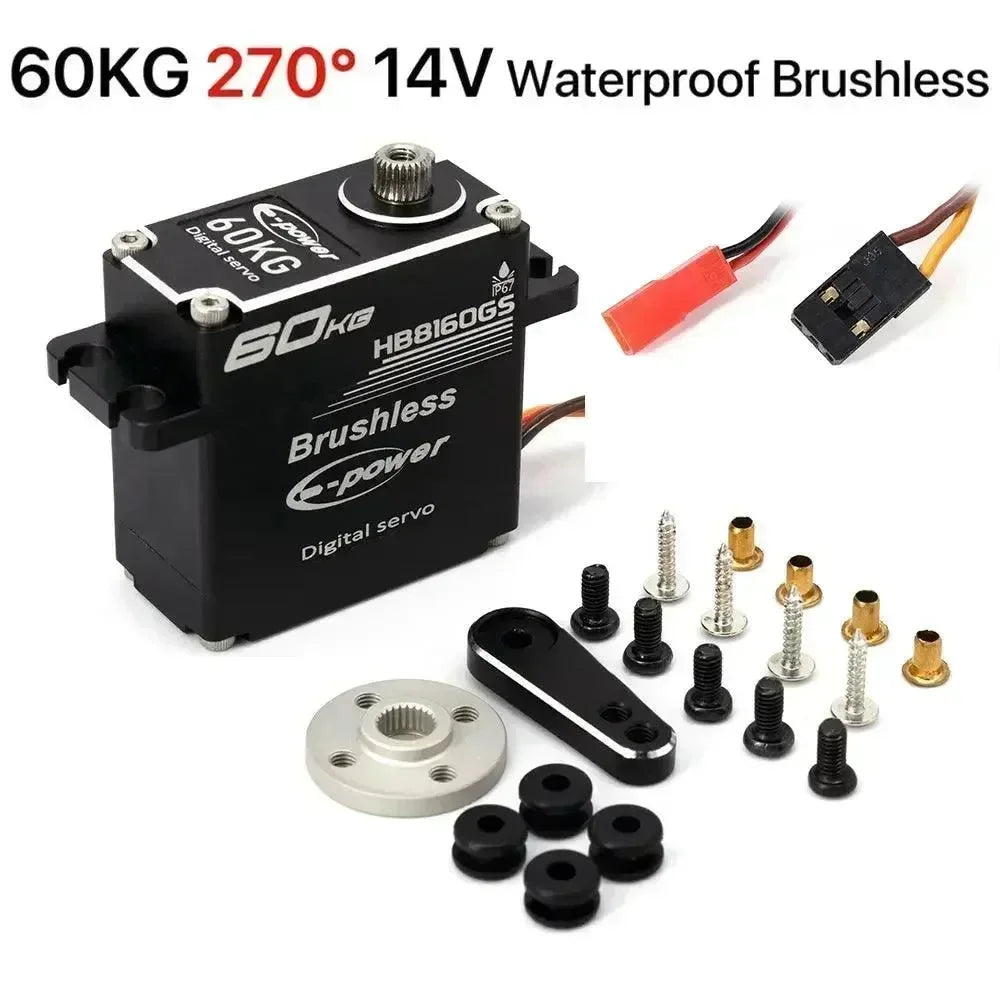

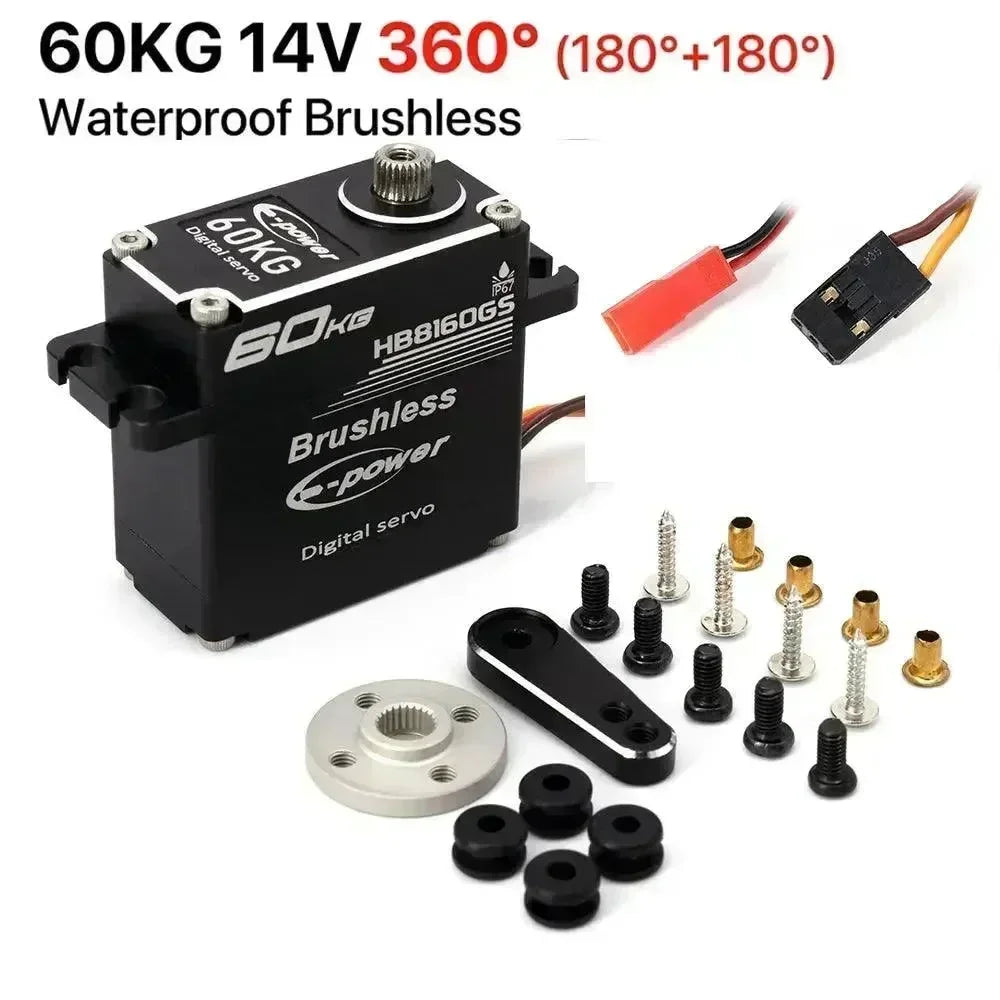

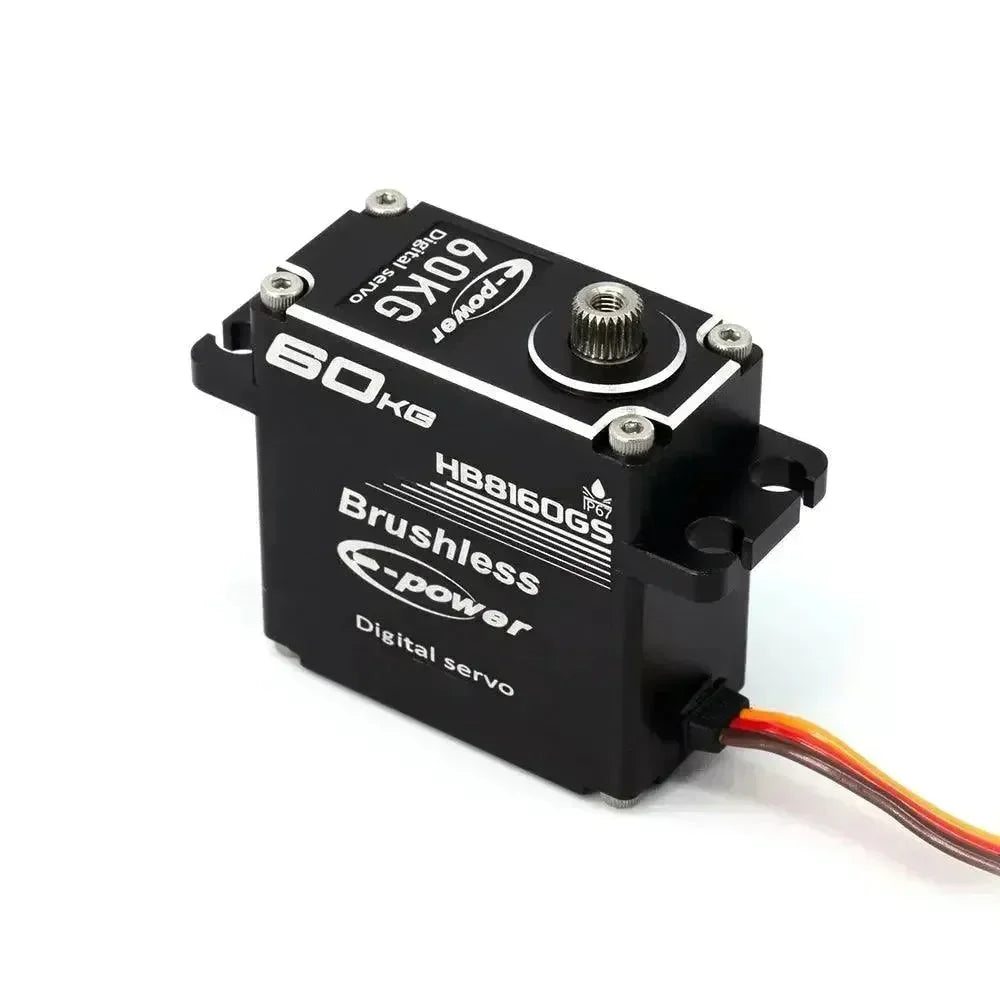

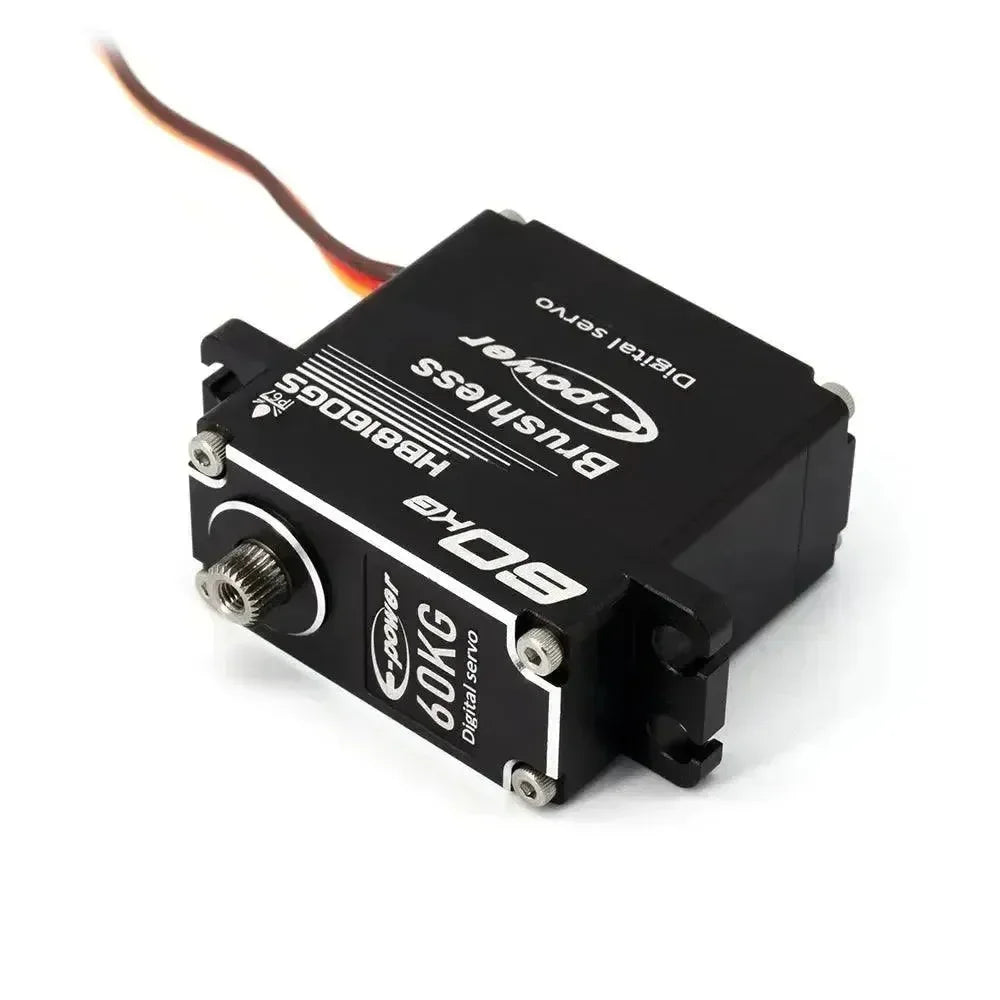

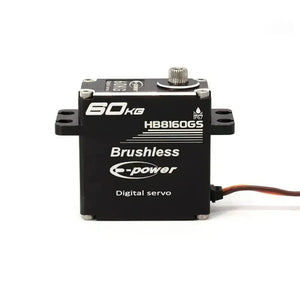

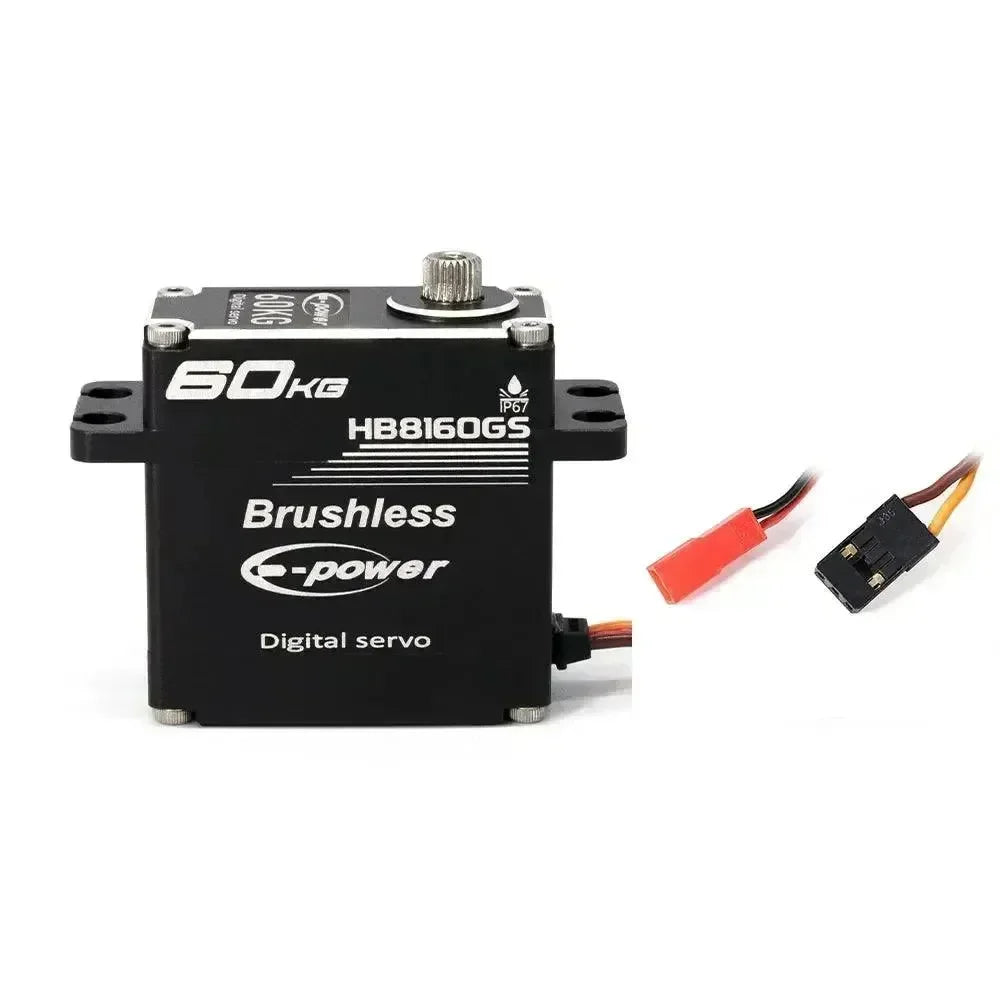

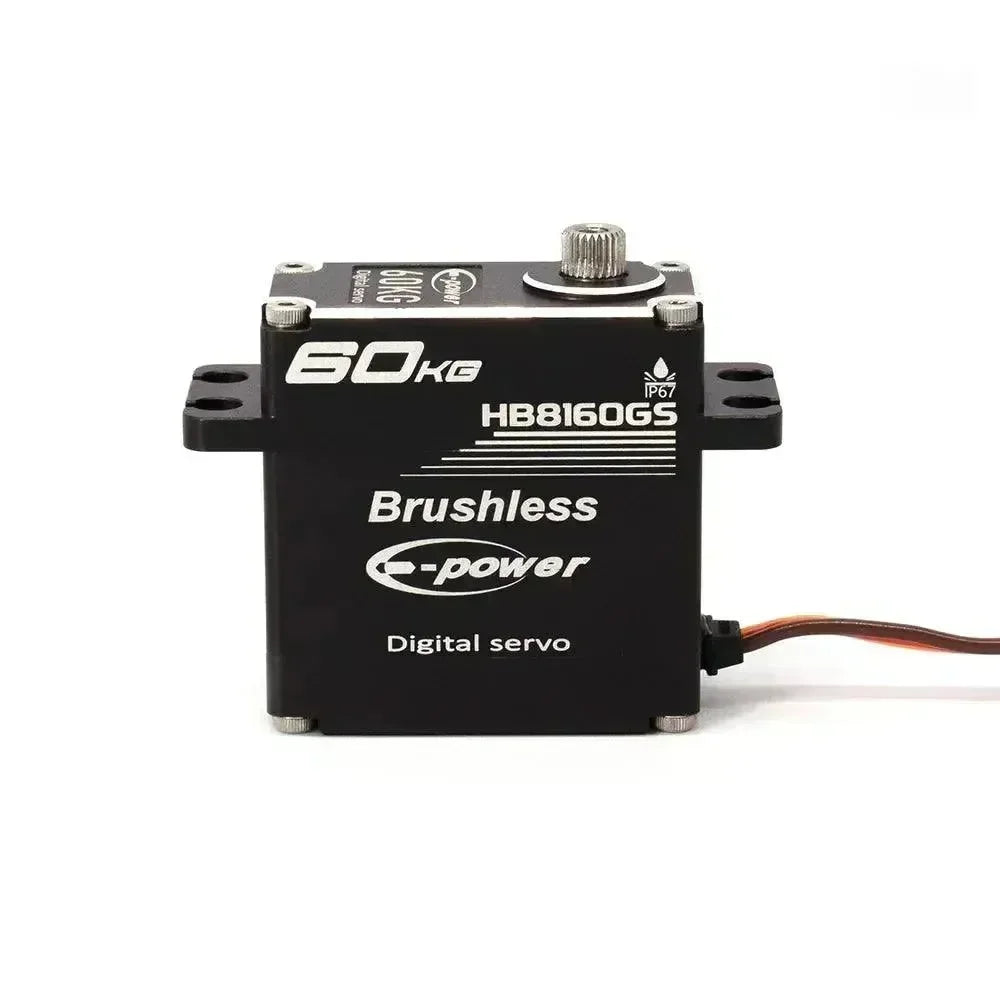

E-Power Waterproof Brushless 60KG Digital Servo Motors 14V Metal Gear RC Steering Servo 1/10 RC Servo for RC Car
Features:
1.Upgraded Version: Less heat, more sensitive ,high torque!10.0V ~15V high performance digital high voltage brushless . (The High voltage servo is a direct power servo that needs to be supplied with extra power).Maximum torque of this RC Servo can up to 60kg/cm.
2.Waterproof Servo:The waterproof protection level is IP67. It can adapt to different wading environments.
3.High Rotation :The steering servo (Control Angle 180°/270°/360°optional) is widely use.Excellent linearity, precision control. compatible with 1/8, 1/10 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
4.High Quality :Metal gear brushless servo equipped with stainless steel gears(Black heat-treated gear:About twice hardness of ordinary steel, more wear-resistant,not easy to sweep teeth.), full CNC aluminium shell, less noise, light weight.Dual ball bearings.
5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); W
eight:2.7oz (79g)
Description:
The EP HB8160GS 60KG large torque digital waterproof servo with 25T metal servo arm,adopt brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,10V ~15V high operation voltage range.
It's a good accessory for your RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:E-Power
Model:HB8160GS
Color:Black
Control Angle:180°/270°/360°optional
Dead band width:1 usec
Gear Material:Metal Gear
Case Material:Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:10.0V ~15V
Operation Temperature Range:-20C°~ +60C°
Circle:＞100 million times without load
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1/360°± 1
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Standing Torque:0.15sec/60°,48kg-cm@10.0V ;
0.13sec/60°,55kg-cm@12V
0.11sec/60°,60kg-cm@14V
Idle Current:300mA@10.0V ;400mA@12V;450mA@14V
Running Current:4000mA@10.0V ; 4500mA@12V;5500mA@14V
Ball Bearing:2BB
Connector Wire Length: 300MM JR JST Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Black):Negative
Wire Info (Yellow):S Single

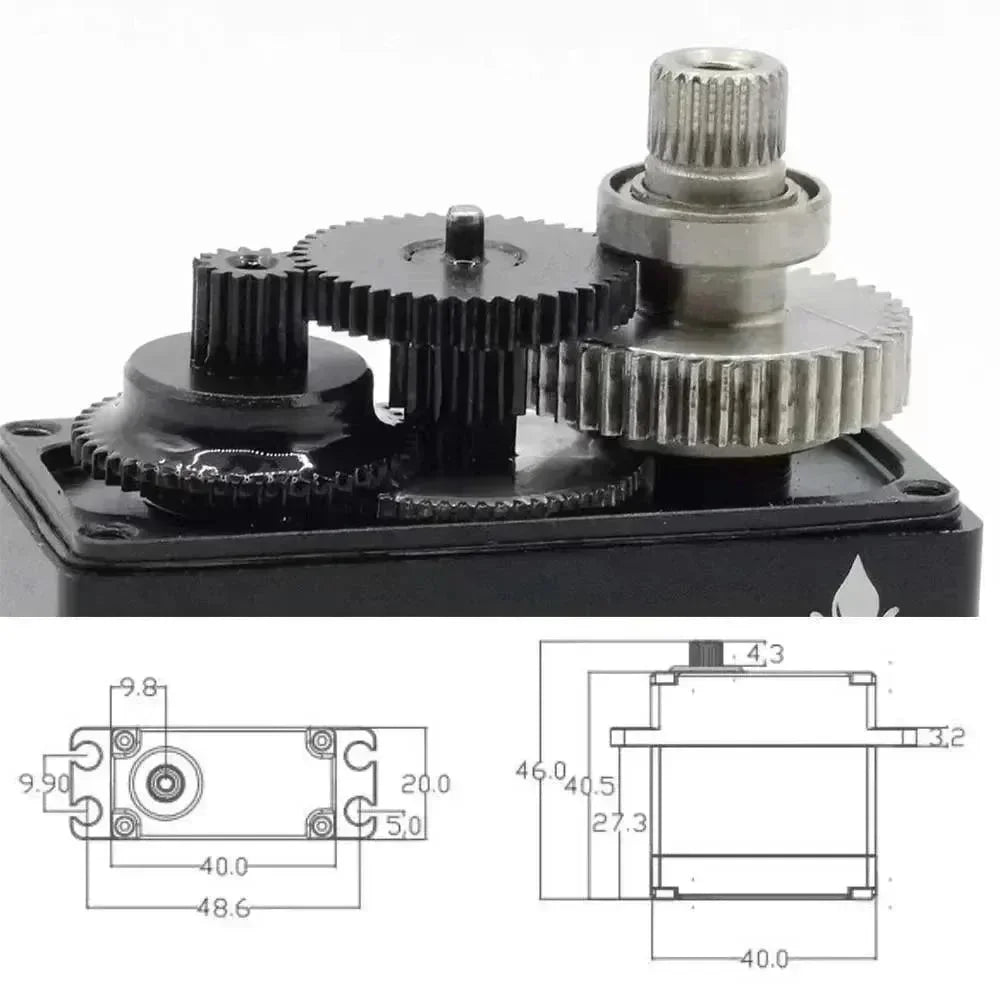

Dimensions:40x20x40.5mm
Weight:83g (without servo horn)
With 25T metal servo arm
Tips:Our 360degree servo built in adjustable potentiometer.So is the left and right of the middle locus are 180 degrees, not 360 degrees rotation.
Package included:
1 x Servo
1 x Servo Accessories
