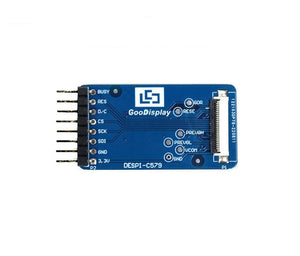

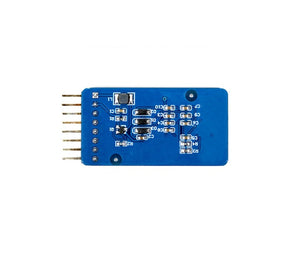

5.79-inch E-Paper HAT Adapter Board DESPI-C579

Basic Function

• Driver circuit: Peripheral Boost Circuit
• Supporting screen: 5.79 inch
• Matching motherboard: STM32、ESP32-L、ESP8266-L、Arduino UNO-L

Basic Parameters

• Outline size: 41x22mm
• Communication Interface: SPI
• Screen Interface: 24PIN 0.5mm
• Key Components: SI1308EDL, MBR0530
• DIP Switch: None
• Operating Voltage: 3.3V
• Operating Temperature: -20~70℃

Auxiliary Functions

• Boost Detection: Reserved boost detection points for convenient fault diagnosis.
• Design Reference: Initial design reference for user product design.
