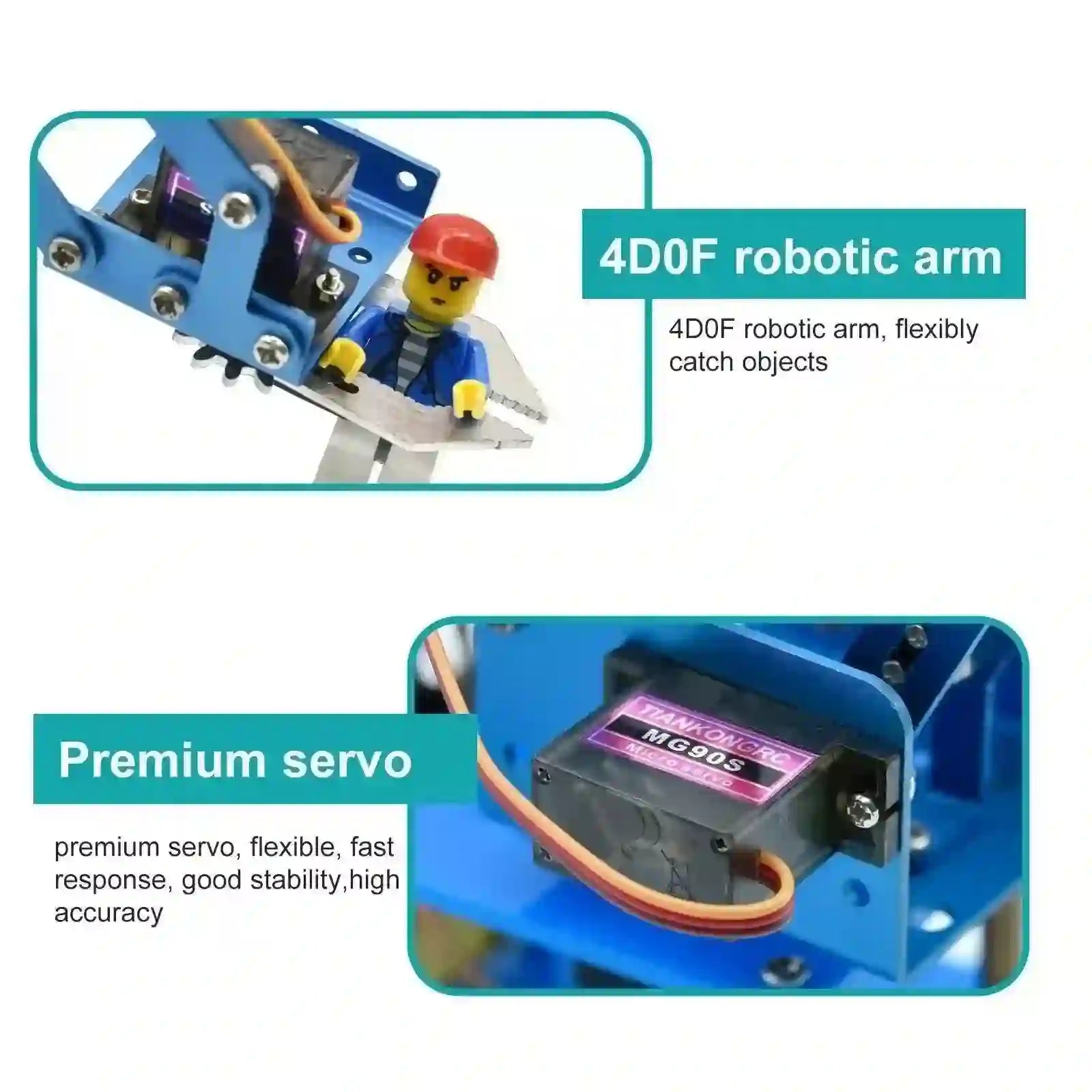

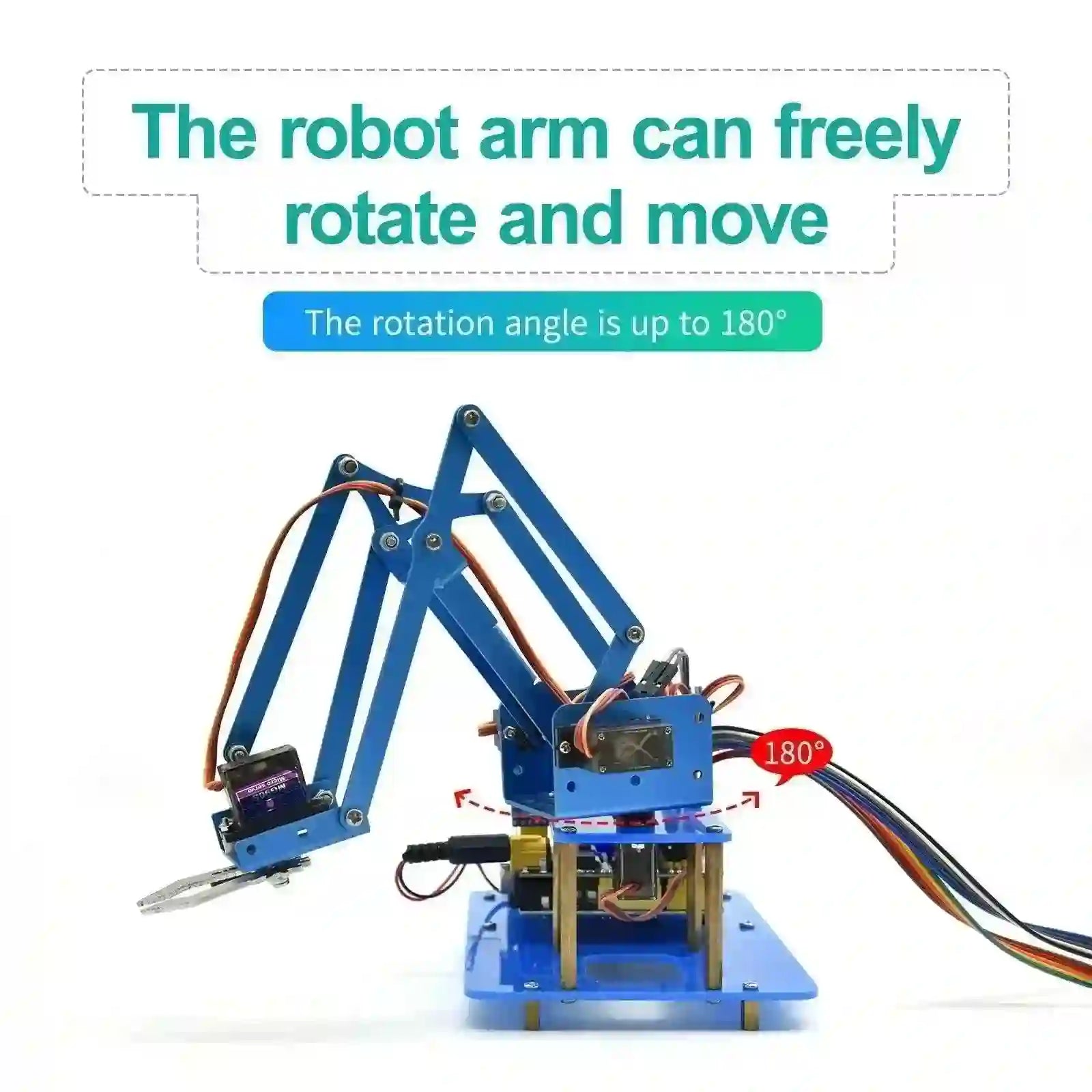

OpenELAB 4DF Mechanical PS2 Joystick Metallic Robot Arm

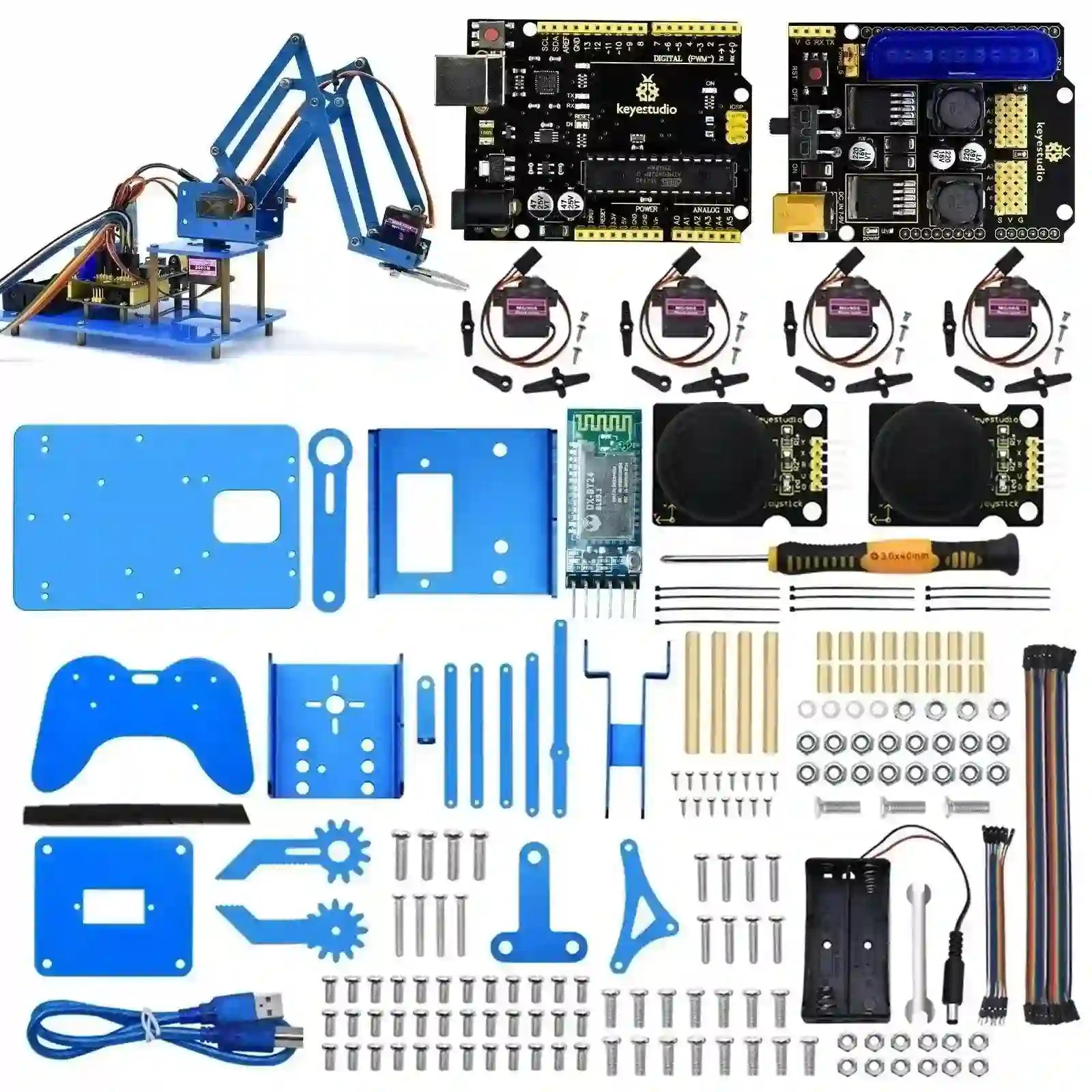

This kit includes Arduino single-chip microcomputer, 2 joystick modules and 4 servos and so on. Next, we’ll teach you how to install and debug the robotic arm.
There are three methods to control it as follows: First, we can a wired home-made joystick controller (included in the kit); secondly, the App control is adapted; thirdly, we also can use a wireless PS2 joystick(not included in kit) .
The detailed codes and projects are provided for you. Come and let’s get started with this kit.

Note: You must connect a DC 7-15V power to VIN port of shield when wiring servo to shield.


Features

• Detailed installation method

• Detailed debugging methods, even you’re a beginner

• 3 control methods: wired joystick control, Bluetooth control, wireless PS2 joystick control.

• Relevant information provided



  ---

  Specification:

• OpenELAB servo motor driver shield:

• VIN voltage: VIN = DC 7-15V

• VIN current: 5A

• Size: 73 * 53.34mm

• 2-channel 5V Output: 5V / 3A

• PS2 interface: Compatible with Sony PS2 receiver, can be plugged directly into the shield.
