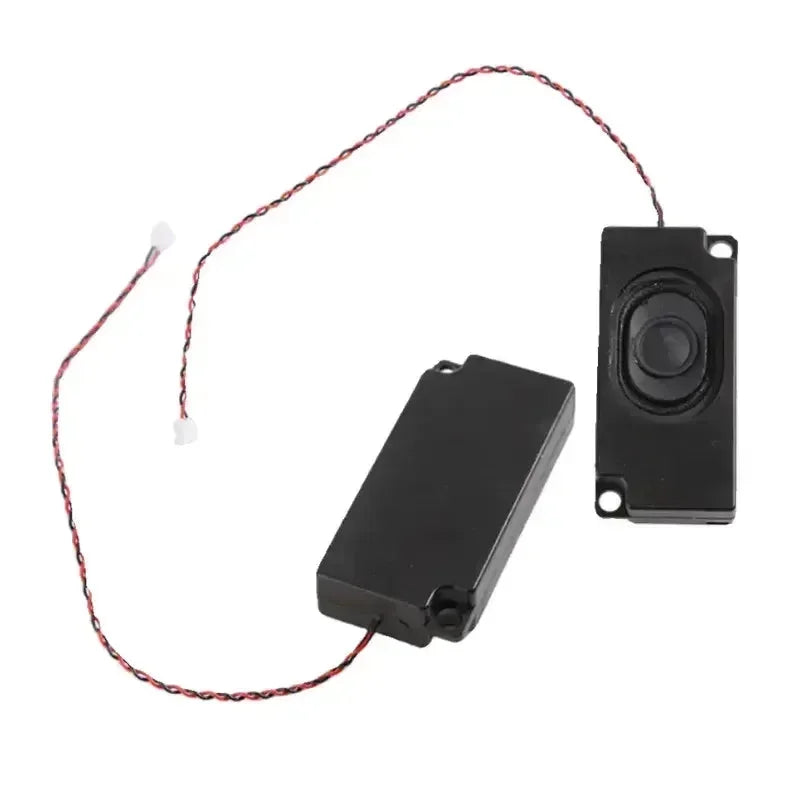

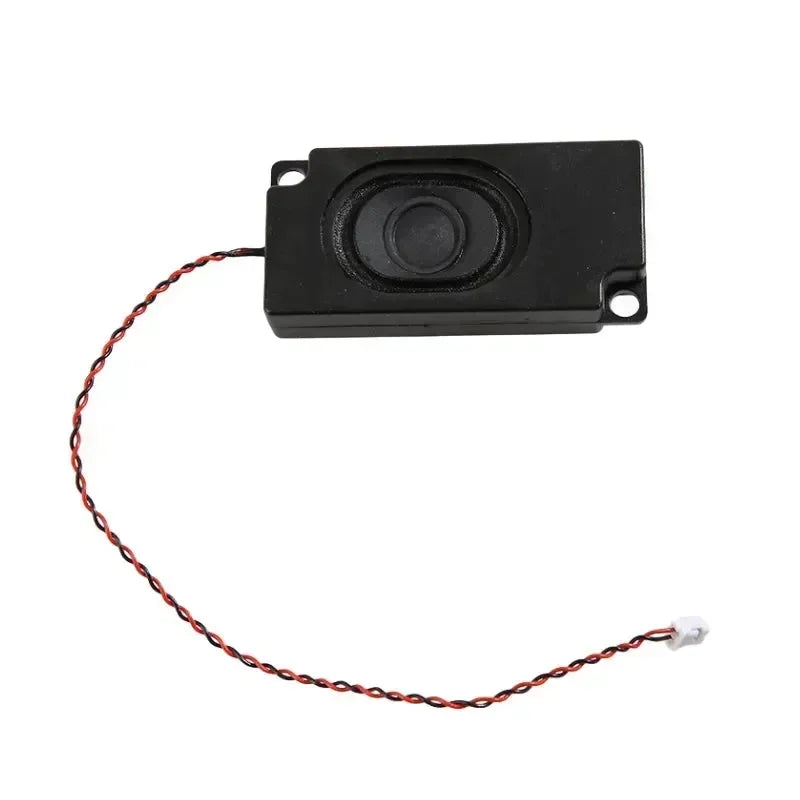

Model: YZ-3370
Impedance: 8Ω
Dimensions: 33*70*16MM
Product Type: Speaker for advertising machine and smart home applications
Item | Specification |
---|---|
Type | Built-in Speaker 3370-8Ω |
Mylar Thickness | — |
Magnet | 12.5 * 7.5 mm |
Voice Coil | PLT3.28 * 7.6 * 16 |
Nominal Impedance | 7.5Ω ± 1.3Ω @1.0kHz |
Rated Input Power | 2W |
Max. Input Power | 3W |
Mean Sound Pressure Level (SPL) | 100 ± 3dB @ 0.8, 1.0, 1.2, 1.5kHz |
Frequency Range | 500~5000Hz |
Distortion | Maximum 3% at 4V rated input at 1.0kHz 1W power |
Buzzes & Rattles | 4V |
Lowest Resonance Frequency (FO) | 700Hz ± 13% |
Load Test | White Noise at 0.2W for 24 hours |
Operation Temperature | -20℃ to +55℃ |
Storage Temperature | -30℃ to +60℃ |
Polarity | Diaphragm shall move forward when current flows to "+" or marked terminal |
