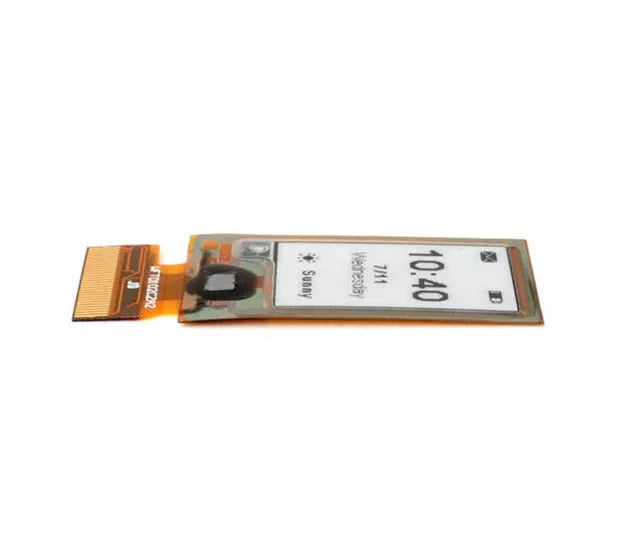

1.02 inch E-Ink Display Mini Flexible E-Paper Module

Due to the discontinuation of certain components, we are phasing out some of our older e-paper display models. We recommend transitioning to our new advanced models

which offer superior performance and enhanced features. Our support team is ready to assist with this transition.

Thank you for your understanding and continued support.


Basic function

• Refresh Method: Full refresh for 3s、Partial refresh for 0.3s
• Display direction: Horizontal and vertical
• Drawing method: GUI Drawing
• Driving method: STM32、Arduino、MicroPython

Basic parameters

• Product size: 1.02 inches
• Resolution:128x80
• Color: Black and white
• Drive IC:UC8157
• Interface: SPI
• Operating voltage: 3.3V
• Operating temperature: 0-50 ℃
• Optional customized:  cover plate and shell

Main features

• Display feature: Bistable display (maintains the last screen after power outage)
• Display mode: Pure reflection
• Angle of view: Wide angle of view, greater than 170 degrees
• Surface treatment: Hard coating anti glare treatment
• Environmentally friendly and low-carbon: No refresh, no power consumption
• Eye protection: No blue light, no radiation

Product Application

• Shelf tags
• Smart tags
• Wearable devices
• Smart home applications
• Industrial instruments
• Smart card
