Support Raspberry Pi 5!

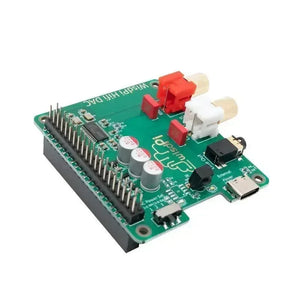

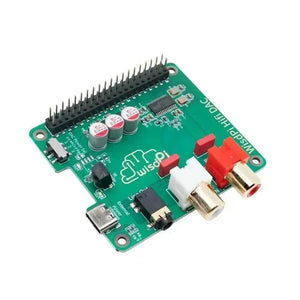

Introducing our new HiFi DAC product, specifically designed for use with Raspberry Pi.
With an external power interface and active power noise reduction, this product is a step above the competition.
Our HiFi DAC delivers exceptional sound quality, allowing you to fully enjoy your audio experience.
The product is easy to install and use , and is compatible with a variety of Raspberry Pi models.
Whether you're an audiophile or just looking for an upgrade to your audio setup, our HiFi DAC is the perfect choice.
Features:
- Support Raspberry Pi 5
- External +5V type-C Power input
- Active power noise reduction
- Stereo audio DAC TI PCM5122, sample rates up to 384-KHz/32-Bit.
- Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+ with the 40-pin connector
- Gold plated RCA jacks and gold plated 3.5mm high-end headphone jack
- Support all Raspberry Pi music playback system, like LibreElec, OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support DSD over PCM(DOP) mode
Electrical Characteristics:
- +5V power from Raspberry Pi 40-Pin header or external type-c usb
- DAC SNR 112dB, THD -93dB
- Full Scale Output of DAC is 2.1Vrms.
- Sampling Frequency ranges from 8kHz to 384kHz.
- Ultra-low noise voltage regulators for optimal audio performance.
Block Scheme:
