Waveshare Luckfox Lyra RK3506G2 Linux Micro Dev Board

Luckfox Lyra RK3506G2 Linux Micro Development Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors

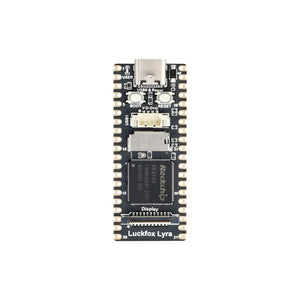

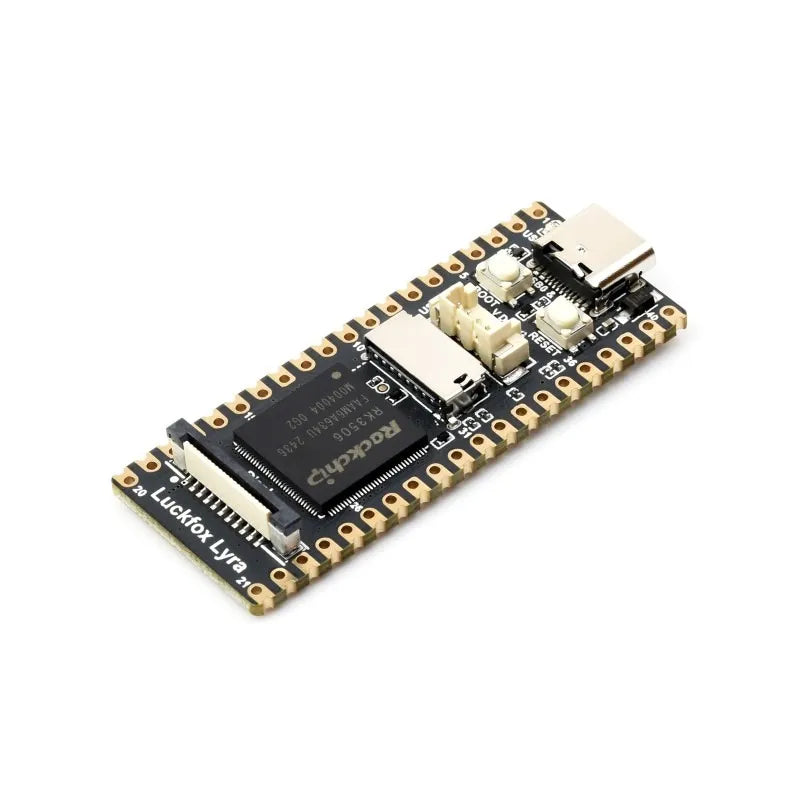

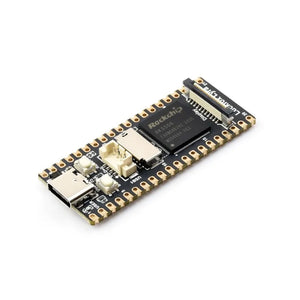

Luckfox Lyra RK3506G2 Linux Micro Development Board, front view

Luckfox Lyra RK3506G2 Linux Micro Development Board, features

Development Board Versions

Luckfox Lyra RK3506G2 Linux Micro Development Board, version and pinheader options

Specifications


Processor	Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory	128MB DDR3L
USB	USB OTG2.0 × 2
Display	MIPI DSI 2-lane
GPIO	24 × Rockchip Matrix IO pins

Default Storage	Luckfox Lyra: TF card (Not included) Luckfox Lyra B: SPI NAND FLASH (256MB)

Kit Selection

Highly integrated and powerful performance

Luckfox Lyra RK3506B Linux Micro Development Board, adopts RK3506B chip

Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
Built-in 128MB DDR3L for multi-core applications
The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions

Easier to develop

Integrates TF card slot, DSI interface and USB connector

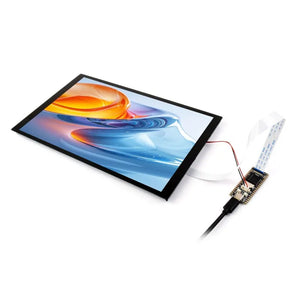

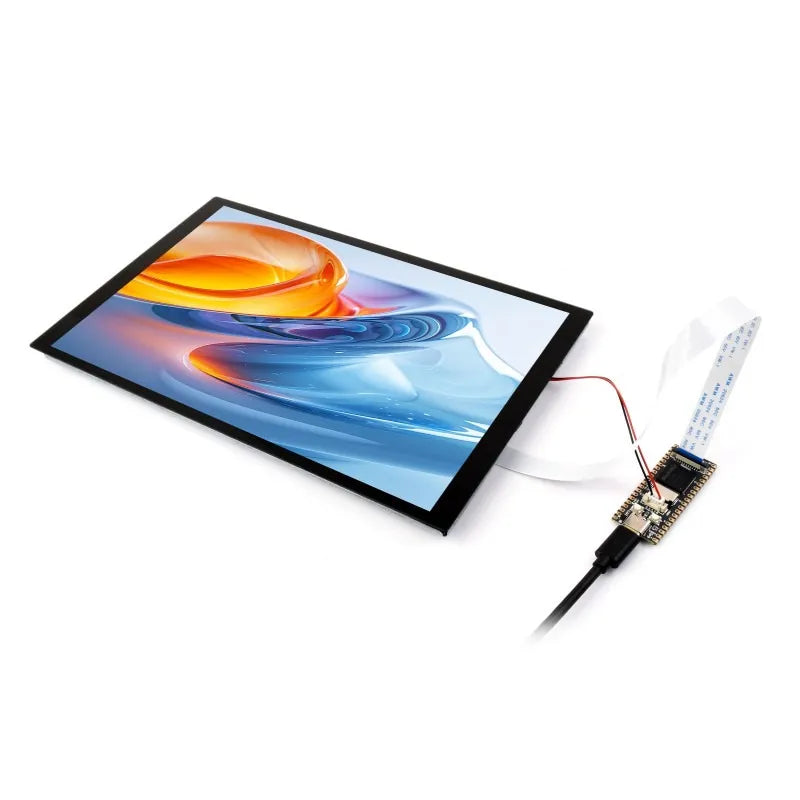

MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Optional for 256MB SLC NAND FLASH

Provides a better user experience

* Only Luckfox Lyra B versions with 256MB Flash, while the Luckfox Lyra versions require an additional TF card (NOT included) for storage.

Suitable for more application examples

Pin definition

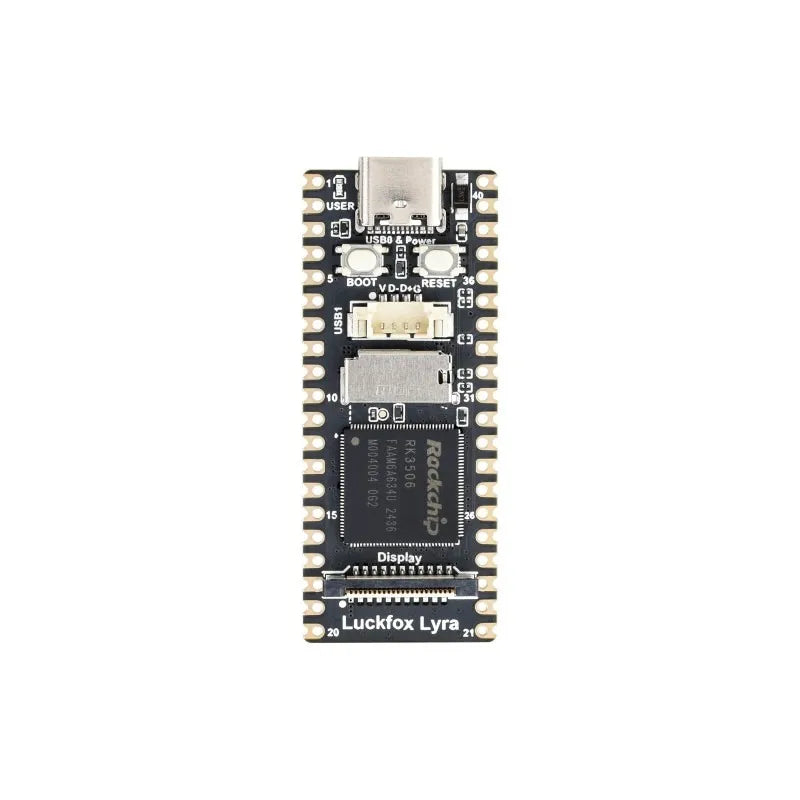

What's On Board

Luckfox Lyra RK3506G2 Linux Micro Development Board, onboard components

USB Type-C connector
for power supply and program burning
ACT-LED
BOOT button
Press it when powering on to enter download mode
RESET button
USB MX1.25 4P connector
can be converted to USB Type-A port via an adapter cable

TF card slot
RK3506G2
Multi-core heterogeneous SoC with built-in Triple-core ARM Cortex-A7 + ARM Cortex-M0
DSI display interface
MIPI DSI 2-lane
W25N02KV
256MB SLC NAND FLASH (for Luckfox Lyra B versions only)

Product Show

outline dimensions

Luckfox Lyra Product Selection

PRODUCT	Main chip	Memory	DSI	USB	Default Storage	FEATURES
Luckfox Lyra	RK3506G2	128MB DDR3L	2-lane (1.5Gbps/lane)	2 × USB OTG	TF card (Not included)	Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, reserved RMII interface, etc.
Luckfox Lyra B					SPI NAND FLASH (256MB)
Luckfox Lyra Plus					SPI NAND FLASH (256MB)	Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, etc.
Luckfox Lyra Ultra	RK3506B	512MB DDR3L			eMMC (8GB)	Multi-core heterogeneous CPU, onboard DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Ultra W				USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB	eMMC (8GB)	Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Zero W				USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB	SPI NAND FLASH(256MB)	Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), onboard antenna
Core35060800				USB OTG × 2	-	Multi-core heterogeneous CPU, onboard DDR3L, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC and 10M/100M RMII, etc
Core35060808				USB OTG × 2	eMMC (8GB)
Luckfox Lyra Pi A				USB OTG2.0 × 1, Extended USB HOST2.0 × 3 via HUB		Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc.
Luckfox Lyra Pi A W						Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc.
Luckfox Lyra Pi B					TF card (NOT included)	Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc.
Luckfox Lyra Pi B W					TF card (NOT included)	Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc.
