Waveshare ESP32-S3 1.47inch LCD Display Dev Board 172×320 262K

Waveshare ESP32-S3 1.47inch LCD Display Dev Board 172×320 262K

€12,95

The ESP32-S3 1.47-inch LCD Display Development Board Type B features a 172×320 resolution and 262K display colors. It supports 2.4GHz Wi-Fi and BLE 5, powered by a 240MHz LX7 dual-core processor, making it an ideal ESP32 with display solution.

This development board includes an onboard TF card slot, a 6-Axis IMU, and multiple peripheral interfaces for versatile applications.

ESP32-S3-LCD-1.47B, front view

Note: For reference only, please refer to the actual display effect.

Version Options

ESP32-S3-LCD-1.47B

ESP32-S3-LCD-1.47B
Standard version

ESP32-S3-LCD-1.47B-M

ESP32-S3-LCD-1.47B-M
With pre-soldered header (black)

Features

The ESP32-S3-LCD-1.47B is a microcontroller development board offering 2.4GHz Wi-Fi and Bluetooth BLE 5 support, integrated with high-capacity Flash and PSRAM. Its onboard 1.47-inch IPS display seamlessly runs GUI programs like LVGL. With various peripheral interfaces, it's perfect for rapid development of ESP32-S3 HMI applications.

  • Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
  • Onboard 1.47-inch LCD display, 172×320 resolution, 262K color.
  • Adapting multiple IO interfaces, supports full-speed USB standard.
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.

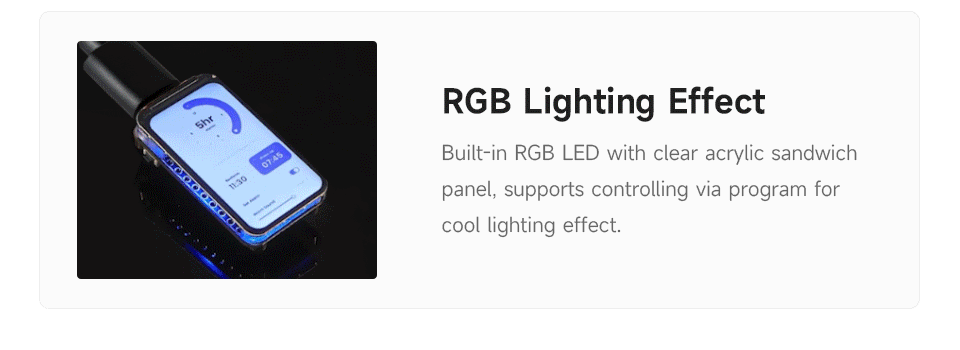

  • Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects.
  • Onboard TF card slot for external TF card storage of pictures or files.
  • Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header).
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.

LCD Specifications

DISPLAY SIZE 1.47inch Resolution 172 × 320 pixels
Display Driver ST7789 Color 262K
Display Interface 3-wire SPI DISPLAY PANEL IPS

Suitable for AIoT Applications

Powered by a high-performance 32-bit LX7 Dual-core processor, with a main frequency up to 240 MHz, offering powerful AI computing capability and reliable security.

ESP32-S3-LCD-1.47B with high-performance 32-bit RISC-V processor

Wi-Fi and BLE 5 Support

The ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz bandwidth support. Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

ESP32-S3-LCD-1.47B, with WIFI 6 and BLE 5 support

Application Scenarios

ESP32-S3-LCD-1.47B, application scenarios ESP32-S3-LCD-1.47B, application scenarios

Pin Definition

Supports the expansion of multiple peripherals via the GPIO header.

ESP32-S3-LCD-1.47B, pin definition

What's On Board

ESP32-S3-LCD-1.47B, what's on board

  1. ESP32-S3R8
    Dual-core processor, up to 240MHz running frequency
  2. 16MB Flash
  3. RGB LED
    with onboard clear acrylic sandwich panel to achieve cool color changes
  4. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  5. QMI8658
    6-Axis IMU
  1. Charging management circuit
  2. Onboard ceramic antenna
  3. System battery interface
    for connecting 3.7V Lithium battery, supports charging and discharging
  4. TF card slot
  5. RESET button
  6. BOOT button
  7. Type-C interface
    for power supply, USB communication, and firmware downloading

Outline Dimensions

ESP32-S3-LCD-1.47B, outline dimensions
