Ultra-Wideband (UWB) Unit Indoor Positioning module

€55,00 EUR
€55,00 EUR
€55,00 EUR
Save €0,00
Subtotal: €55,00

Free Shipping from 50€ in EU / 80€ Worldwide

- All products are tax-inclusive.

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

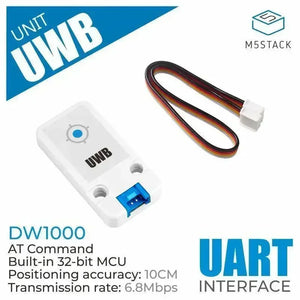

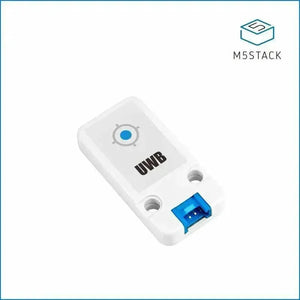

Ultra-Wideband (UWB) Unit Indoor Positioning module

Ultra-Wideband (UWB) Unit Indoor Positioning module

€55,00

Ultra-Wideband (UWB) Unit Indoor Positioning module

€55,00

Note: All products are tax-inclusive.

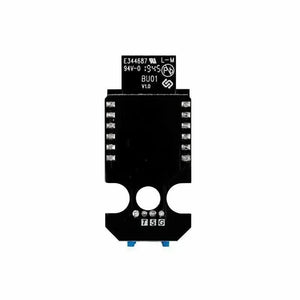

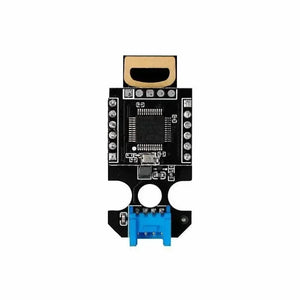

UWB (Ultra Wide Band) unit is a device that integrates the UWB communication protocol for locating objects and determining their position and orientation. It utilizes nanosecond pulses for precise positioning. The unit is built around the Ai-ThinkerBU01 Transceiver module, which is based on Decawave's DW1000 design.

The UWB unit incorporates an internal STM32 chip, which includes an integrated ranging algorithm. This algorithm enables the unit to achieve a positioning accuracy of 10cm. The unit also supports AT command control, allowing for easy configuration and interaction.

One of the primary applications of the UWB unit is indoor wireless tracking and range finding of assets. It achieves this by triangulating the position of the base stations and tags. The base station devices resolve the position information and transmit it to the tag device.

It's important to note that the current firmware of the UWB unit only supports the transmission of ranging information. It does not support the transmission of custom information at this time. The unit allows for the configuration of up to four base station devices with different IDs. However, only a single tag device can operate simultaneously.

Product Features

  • Positioning Accuracy :10cm
  • Internal STM32 Integrated ranging algorithm
  • AT Command control

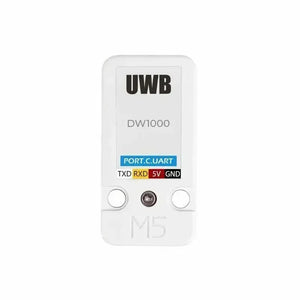

  • Serial communication (baud rate: 115200)
  • Simple Usage,No need for RF Calibration
  • IEEE 802.15.4-2011 UWB Standard
  • Support two-way ranging and TDOA
  • Development Platform: Arduino, UIFlow(Blockly, Python)
  • 2x LEGO™ Technic friction pin holes

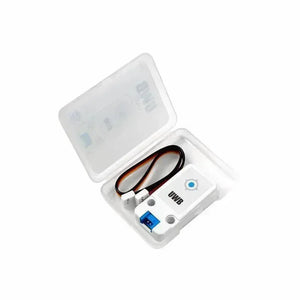

Includes

  • 1x UWB Unit
  • 1x HY2.0-4P Port

Applications

  • Indoor tracking
  • Accurate range finding

Specification

Data transfer rate 110 kbit/s, 850 kbit/s and 6.8 Mbit/s
frequency band 6 frequency bands: from 3.5 GHz to 6.5 GHz
Transmit power -14 dBm/-10 dBm
Transmit power density <-41.3dBm / MHz
Support data packet size 1023 bytes
Transmit power density <-41.3dBm / MHz
Modulation method BPM (two-phase modulation) and BPSK (binary phase modulation)
FDMA 6 channels
Net Weight 7g
Gross weight 19g

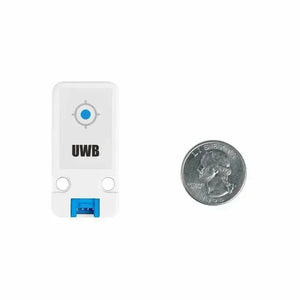

Product Size 48*24*8mm

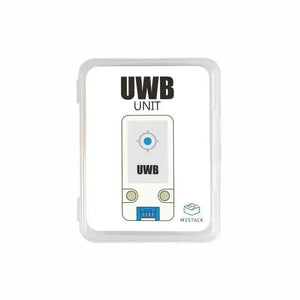

Packaging Size 67*53*12mm
